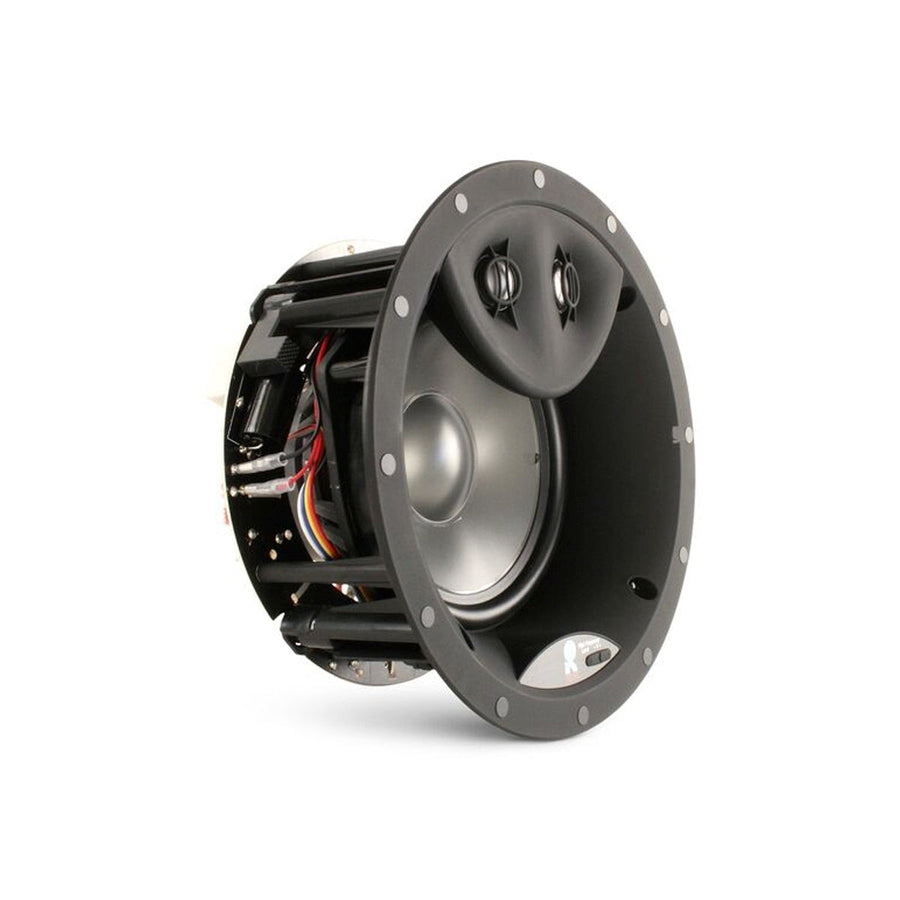

Revel C563DT In-Ceiling Loudspeaker

Regular price$699.00
10 interest free payments from $69.90 with



Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic colouration and their freedom from distortion over an extraordinarily wide dynamic range.

For true audiophile performance and easy timbre-matching to Revel in-wall, floorstanding, monitor and center-channel loudspeakers, all models* feature Revel low-distortion motor-structure designs with aluminum-dome tweeters and Micro-Ceramic Composite (MCC) cone woofers. This allows for easy integration into home cinema systems.



  • Long-throw woofers with rubber surrounds provide high output with low distortion
  • A 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • A high-order crossover network delivers accurate timbre reproduction
  • Includes both round & square Zero-Bezel magnetic grilles.
  • C-2 Installation Mechanism
  • Preconstruction Bracket and Fire-Rated
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles



  • Description: 6-1/2" Dual-Tweeter In-ceiling Loudspeaker
  • High-frequency Driver Components: 2 x 1 '' Aluminium Tweeter with Waveguide
  • Low-frequency Driver Components: 6.5" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminium Frame Woofer
  • Sensitivity: 88dB @ 2.83V, 1 m
  • Recommended Amplifier Power: 10-140 Watts
  • Cutout Dimensions: 203mm
  • Round Grille Finished Dimension (D):  231mm
  • Square Grille Finished Dimensions (H x W): 231 mm x 231 mm
  • Mounting Depth: 125mm
  • Net weight: 1.4kg
