2M styli interchangeability

Technical specifications

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Exclusive Plug-and-Play MkII solution

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features

• Universal mount fitting a wide range of S-shaped tonearms.
• Weight with a 2M cartridge pre-mounted 20 g.
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

NB: available only with a 2M cartridge pre-mounted on the headshell.

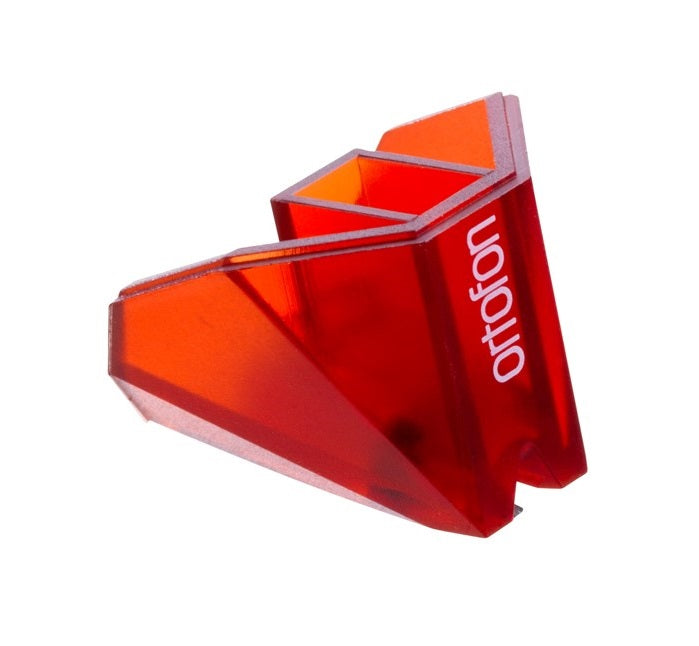

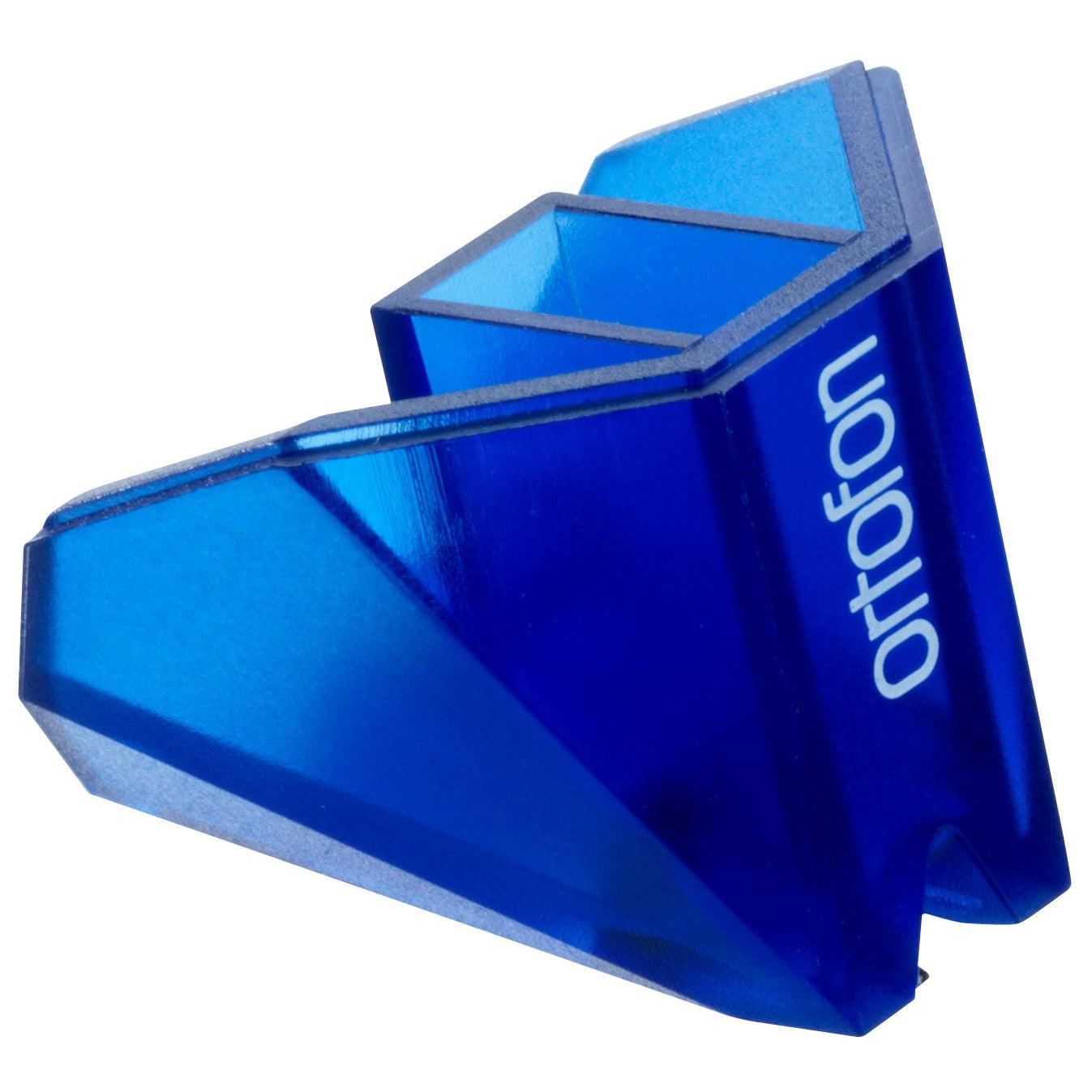

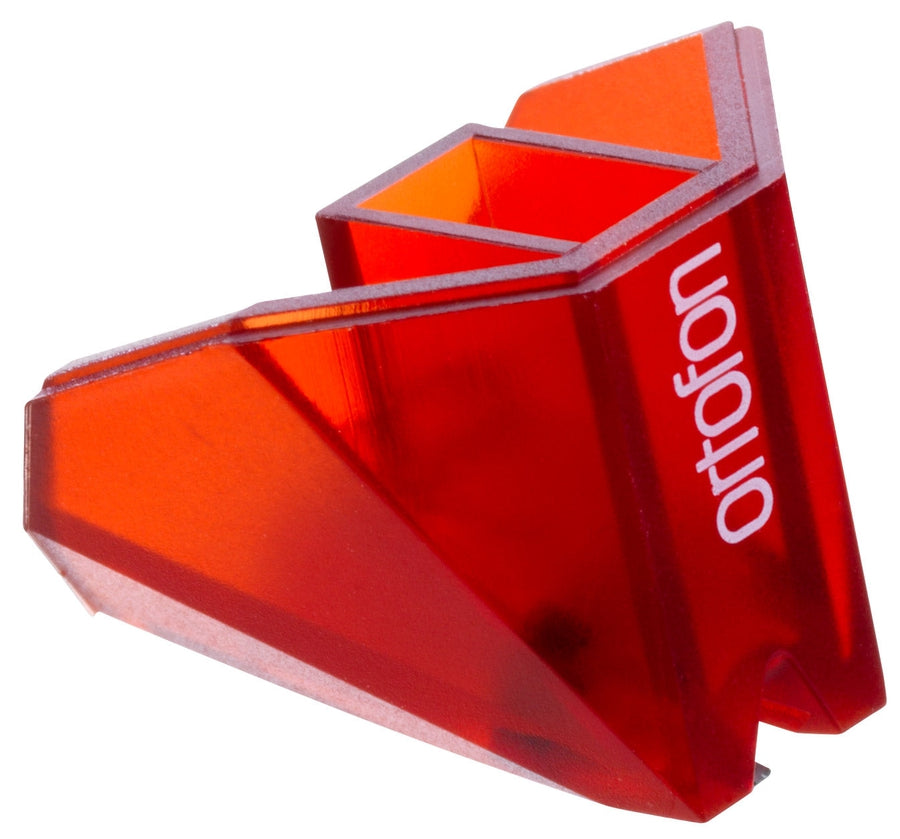

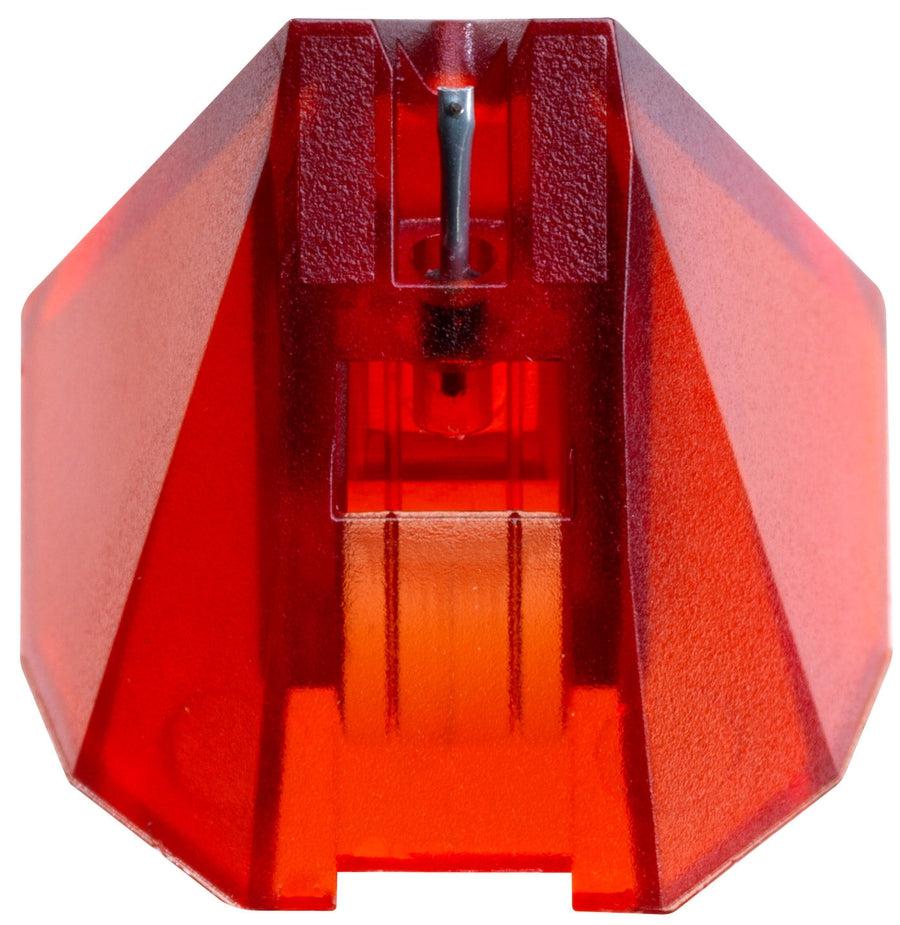

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

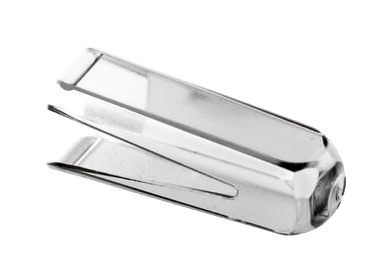

Stylus protection caps for Concorde and OM series cartridges and styli.

All Ortofon cartridges, whether bought as an accessory or supplied pre-fitted to a turntable, have some form of stylus protection unit.

The stylus is one of the most fragile and exposed elements of a phono cartridge, so keeping it safe and clean from dust and other external hazards is essential.

This cover fits OM Series styli.

Stylus protection system

Ortofon Hi-Fi Headshell Cables

Mounting instructions

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.

Using LW 8N with the SH-4 headshell requies the LW 8N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware about this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.

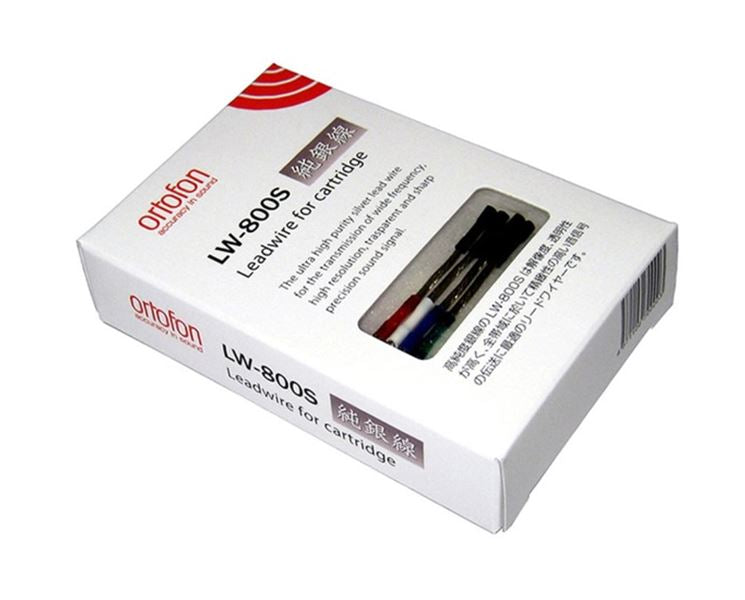

Ortofon LW-800S headshell leadwires

LW-800S is the most sophisticated lead wires composed of Pure Silver and Silver coated wire. The nature of Silver wire, silver coated wire transmits the very clear high tone signals, it brings the brilliant tonality. The end of wire is fastened by Rhodium plated terminal.

Technical data

• 4N Pure Silver wire: 3 x φ 0.26mm
• Silver-plated Oxygen Free Copper (OFC) wire: 16 x φ0.10mm

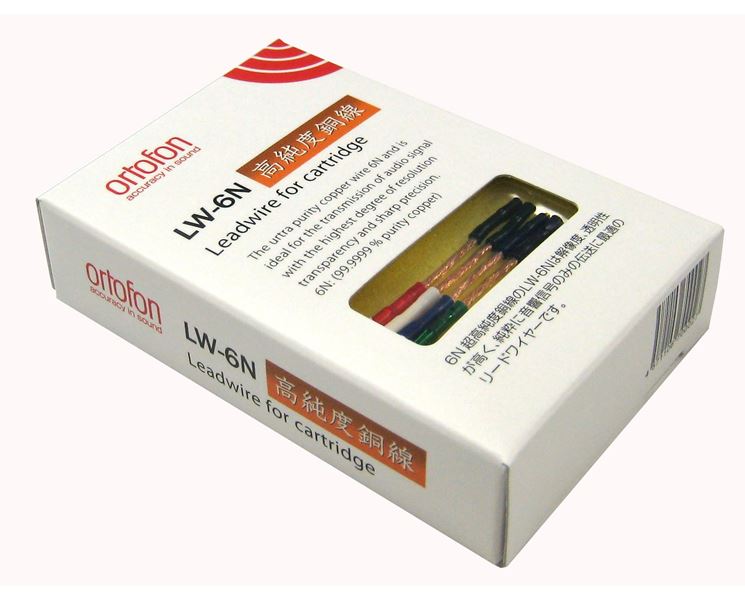

LW-6N is the 6N lead wire made of Ultra High Purity Copper wire, the configuration is very sofisticated with different diameter of wire strand, the inside strand is right windings, the outside strand is left winding. The tight winding against each other makes the clear transmission of music signals. The end of wire is fastened by gold plated terminal.

Clear and crisp tonality.

Technical data

• High purity Cu wire 6NCu: 7 x φ 0.18mm (Right strands)
• High purity Cu wire 6NCu: 17 x φ 0.10mm (Left strands)

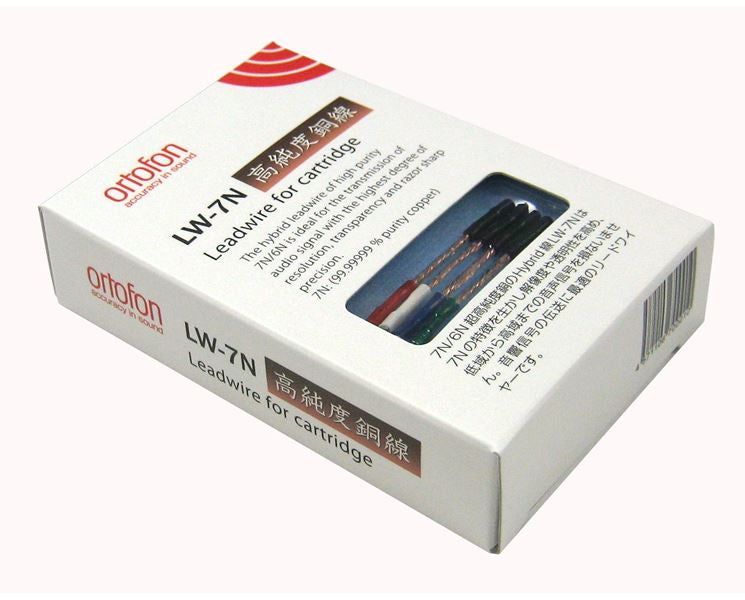

LW-7N is the hybrid lead wire made of Ultra High Purity Copper wire of 7N and 6 N. The end of wire is fastened by Rhodium plated terminal. As there is no foreign particle other than Copper 7N (99.99999 % purity) in the wire, music signal can be transmitted without any noise.

Technical data

• High purity Cu wire 7NCu: 3 x φ 0.26mm
• High purity Cu wire 6NCu: 16 x φ0.10mm

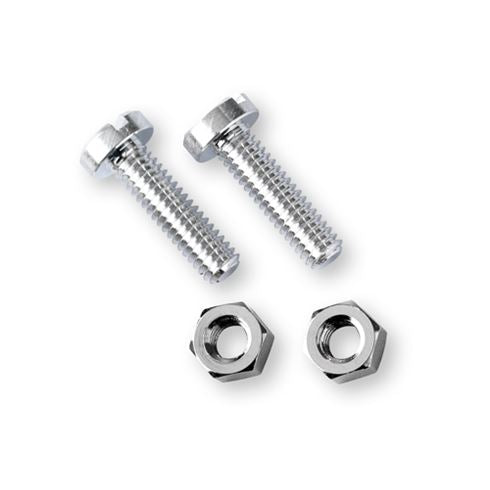

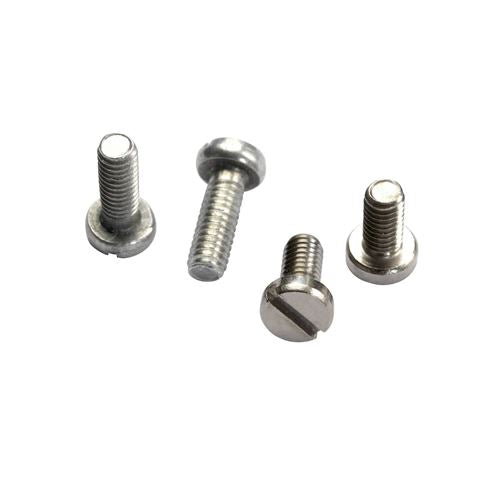

Screws for mounting 2M cartridges on the headshell

Includes:

• 2 x Screw M2,5 x 5

• 2 x Screw M2,5 x 7

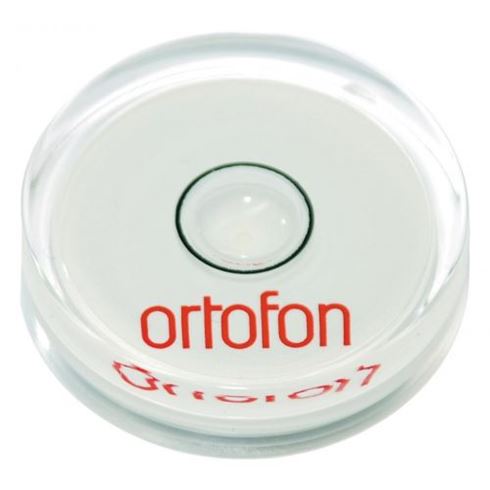

Ortofon Hi-Fi Libelle

The surface that your turntable is resting on can make a surprising difference in how your records sound. And in an era of flat-pack furniture, you can’t always assume that your shelf is perfectly flat! Use Ortofon’s Libelle to see in an instant if your turntable is sitting level to help your cartridge track your records smoothly and consistently.

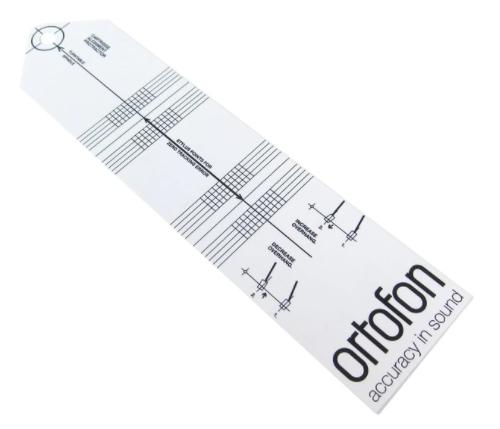

Ortofon Hi-Fi Alignment Card

An alignment protractor is used to find the correct distance from stylus tip to tonearm pivot.

When aligning a cartridge for tangency using the alignment protractor, it is essential to remember that you are attempting to align the cantilever (and, hence, the stylus), not the cartridge body. There is no guarantee that the cantilever is perfectly aligned within the cartridge body, so simply aligning the cartridge body will not necessarily produce the desired result.

Furthermore, many cartridge bodies have non-parallel sides, making tangential alignment of the cartridge body with the lines of tangency on the gauge virtually impossible.

An alignment protractor is a plastic template onto which are printed the null point(s) and lines of tangency against which the cartridge should be aligned. The template is placed over the turntable's spindle (made possible via a spindle-sized hole drilled in the template) and placed against the platter.

Cartridge must be adjusted until the cantilever is parallel to the set of parallel lines. And this should be achieved for both the indicated points. When the cartridge's longitudinal axis is parallel with the horizontal lines, tracking error will be at a minimum.

Stylus pressure gauge/Scale

The Ortofon tracking force gauge is a simple budget tool for turntables that is used to determine the stylus tracking force.

The tracking force is the downward pressure that is applied by the weight of the tonearm through the cartridge stylus and onto the vinyl record. It is important to set the proper tracking force in order to maximize the playback performance and to reduce the risk of mistracking or causing excessive record wear.

Check for the manufacturers recommended settings for your stylus tracking force. The Ortofon tracking force gauge tool is a small plastic pivot type scale that will accurately measure tracking force between 1.25 g and 4 g.

The Ortofon stylus force gauge is simple to use:

1. Very gently, rest the cartridge stylus (needle) into the grooved guide track at the desired tracking force marking.
2. Next, adjust the counter-weight or tonearm pressure dials until the Ortofon pivot scale is in balance. The scale on the force gauge is marked in gram.

Ortofon DS-3 - a high precision digital stylus pressure gauge

DS-3 is a new lightweight compact digital stylus pressure gauge model. The DS-3 is a miniature ultra precision non-magnetic instrument that tunes your tonearm to the highest possible degree. The DS-3 scale is factory pre-calibrated for high accuracy measurements with the tolerance of +/-0.01 g.

How to use the DS-3

• Turn on the device by pressing ON button. The display will show 0000.
• Press the UNIT button to select the measurement unit. The default setting is gram/g.
• Place the stylus on the measurement plate on the right side of the device. Display will start blinking. It will stop blinking when the measurement is completed. The value displayed on the screen is the stylus pressure.
• The display screen will automatically dim to saving mode after 5 seconds of inactivity and turn off after 60 seconds of inactivity.
• When a battery runs out, a LO indicator will flash on the screen. Then replace both batteries.
• PCS button balances count by calculating the average weight of one piece-weight called a unit weight, then applying it to the total weight of what you are trying to count. Firstly, weigh one PC, then weigh the bundle, then push the PCS button and on the display you’ll get a number of PCS.

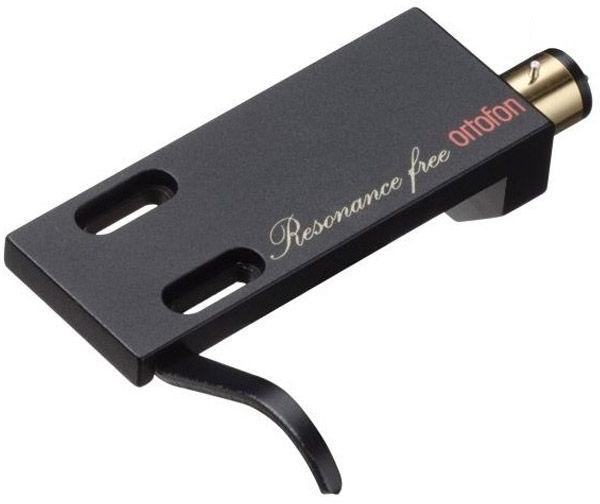

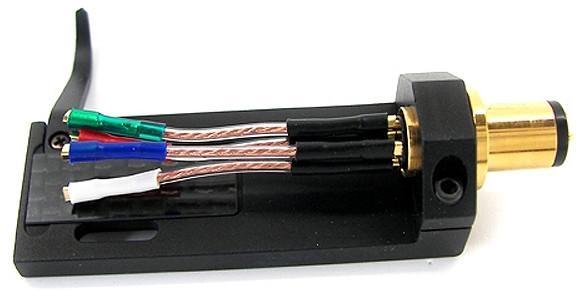

Ortofon LH-9000 headshell

Exceptionally high-quality carbon fiber headshell, the LH-9000 is made using carbon fiber resin for the elimination of unwanted resonances. The LH-9000 is perfect for a variety of high-end cartridges, e.g. Cadenza Series, MC A95, MC Anna Diamond, MC Anna and MC Windfeld Ti.

The LH-9000 comes with leadwires for easy and convenient connection

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

• Universal mount
• Magnesium with carbon fiber
• Weight - 16.8 grams
• Mounting distance - min 38 mm, max 46 mm
• High Purity Copper headshell leads (LW-7N) included

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

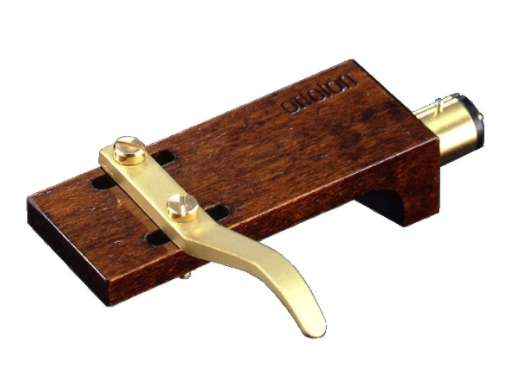

Ortofon LH-8000 headshell

The LH-8000 is a high quality handmade wood-based headshell with a polished brass finger lift. The highly attractive LH-8000 is perfect for a variety of cartridges, e.g. MC Jubilee, MC Windfeld, MC Windfeld Ti, MC Anna, MC Anna Diamond, 2M Bronze and 2M Black.

The LH-8000 comes with lead wires for easy and convenient connection

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

• Universal mount
• Japanese oaktree with Urushi lacquer finish
• Weight - 8.5 grams
• Mounting distance - min 32.5 mm, max 41.9 mm

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

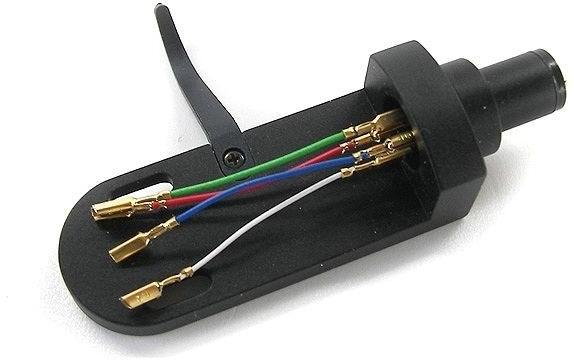

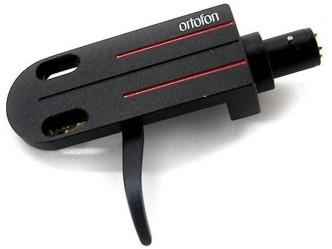

Ortofon LH-6000 headshell

The LH-6000 is a high-quality headshell is recommended for the MC Windfeld Ti and the Cadenza Series. Its rounded front portion facilitates proper mounting and compliments each of these cartridges.

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and the ground terminal. White and blue for left channel respectively hot and ground terminal. The green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember the correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

• Universal mount
• Magnesium
• Weight - 13.5 grams
• Mounting distance - min 37.2 mm, max 42.5 mm

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

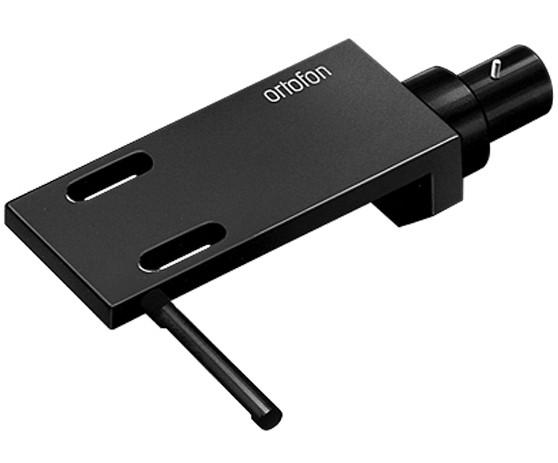

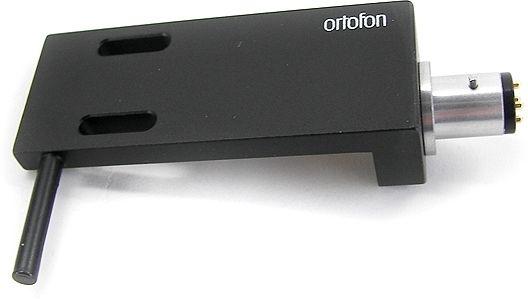

Ortofon LH-2000 headshell

The LH-2000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-2000 is great for a wide variety of cartridges, e.g. the 2M Series and the MC High Output series.

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

Ortofon LH-10000 Headshell

The LH-10000 is an exceptionally high quality headshell made using a high performance Aluminum alloy with Zinc as the primary alloying element. The Aluminum alloy used for LH-10000 is strong, with strength comparable to steel. It has good fatigue strength and machinability, but offers more resistance to corrosion than many other Aluminum alloys.

LH-10000 features a precision machined slit on the top plate. A piece of Ortofon's special proprietary TPE (Thermo-Plastic Elastomer) compound with excellent damping properties is integrated into the slit. LH-10000 incorporates damping technology similar to the Ortofon TA-110 / TA-210 tonearms and the Xpression cartridge, promoting a further reduction in unwanted resonances.

LH-10000 is fitted with the set of the most sophisticated lead wires identical to Ortofon LW-800S, composed of pure silver and silver coated wire. Silver coated wire transmits the very clear high tone signals, which brings the brilliant tonality.

LH-10000 is perfect for a variety of High-end cartridges, including the MC Anna, MC A95, MC Windfeld Ti, Cadenza Series, e.g. Cadenza Bronze as well as the historical MC A90, MC Windfeld, Kontrapunkt series and MC Jubilee.

The design and mechanical dimensions of LH-10000 offer an elegant and virtually plug and play solution between one of these Ortofon High-End cartridges and our TA-110 / TA-210 tonerams.

LH-10000 is azimuth adjustable, which is beneficial for optimal channel separation.

• High performance Aluminium alloy with zink
• Weight - 14.5 grams
• Mounting distance - 42 mm
• Mounting holes diam. - 2.7 mm

A - Headshell length

B - Headshell width

C - Mounting distance max.

D - Mounting distance min.

E - Screw diameter max.

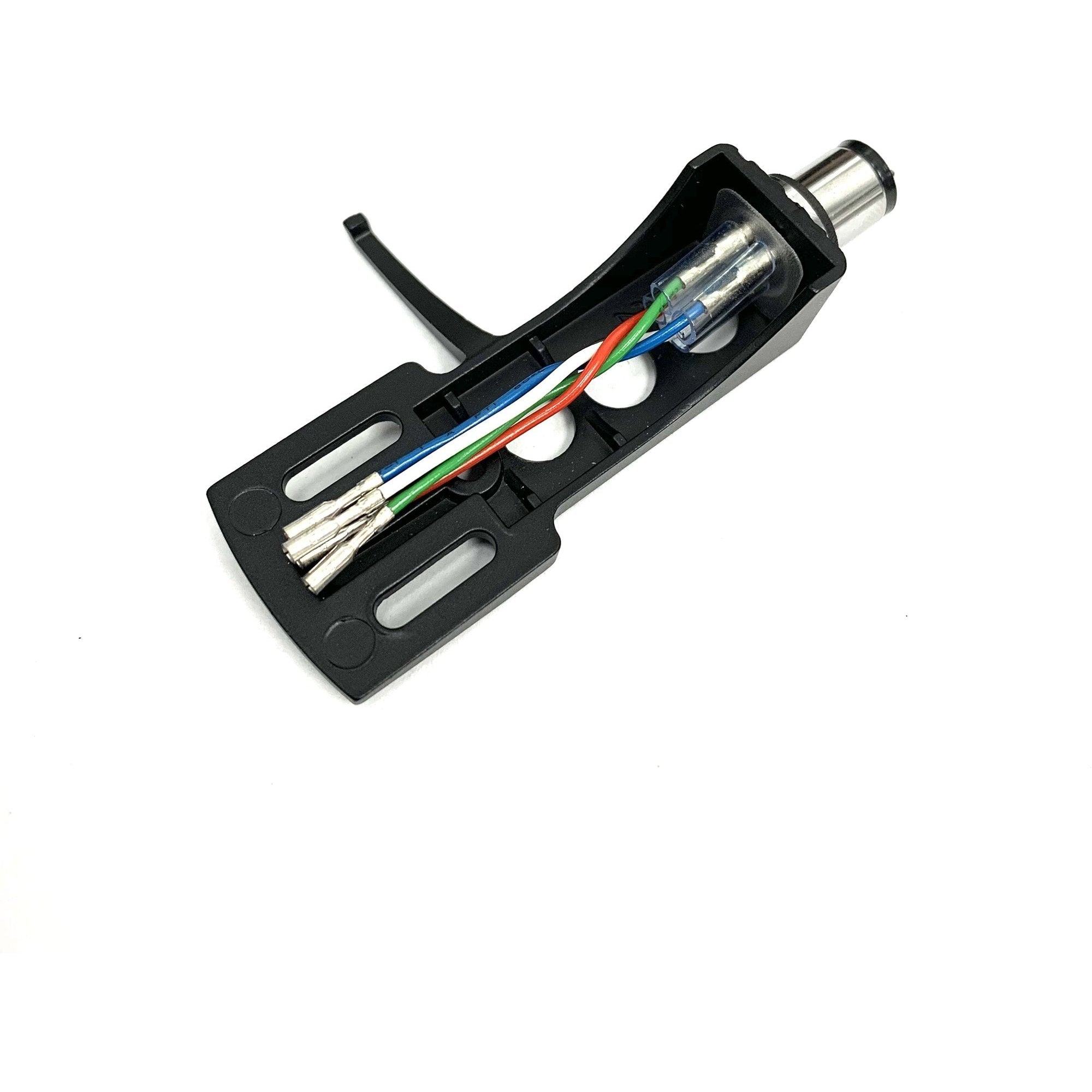

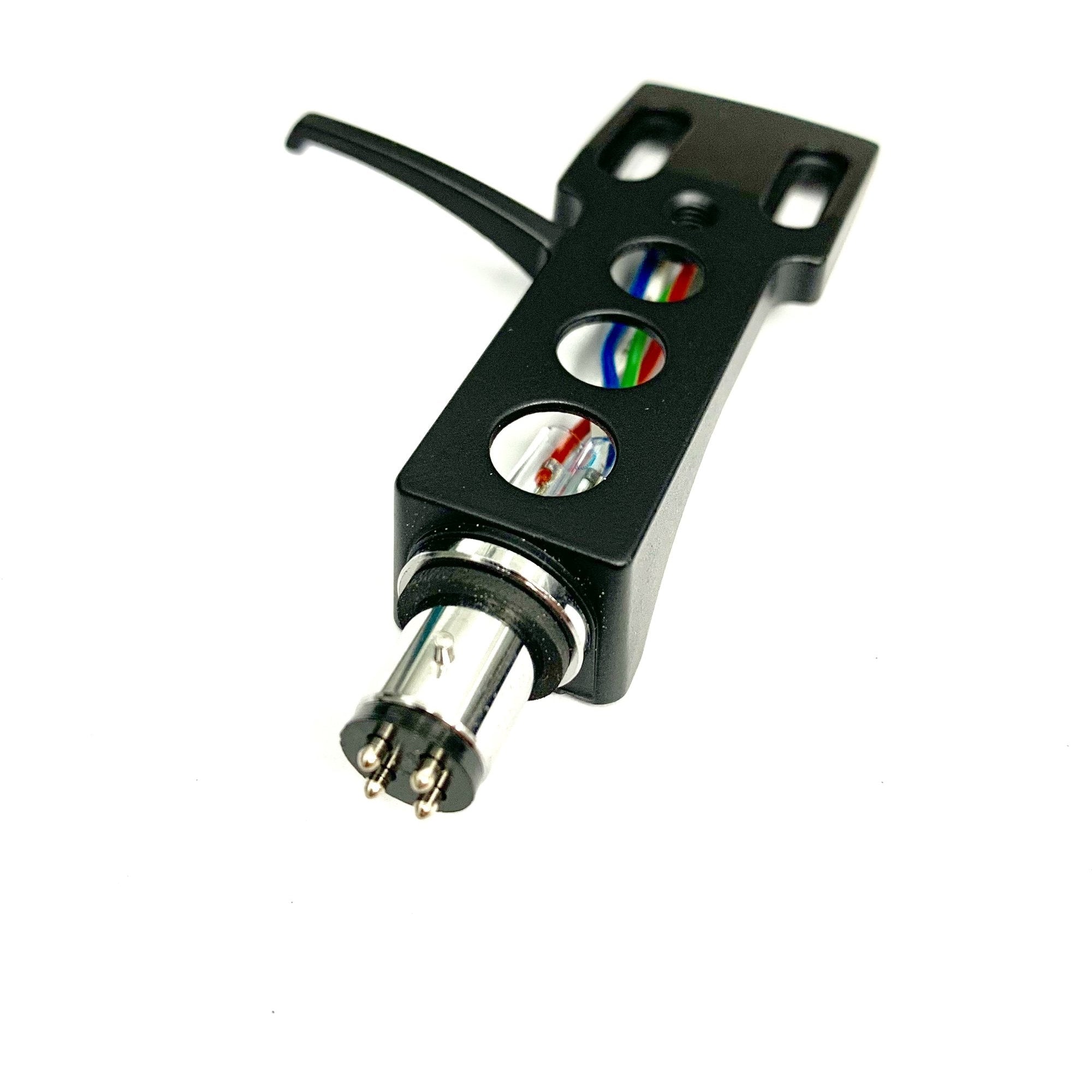

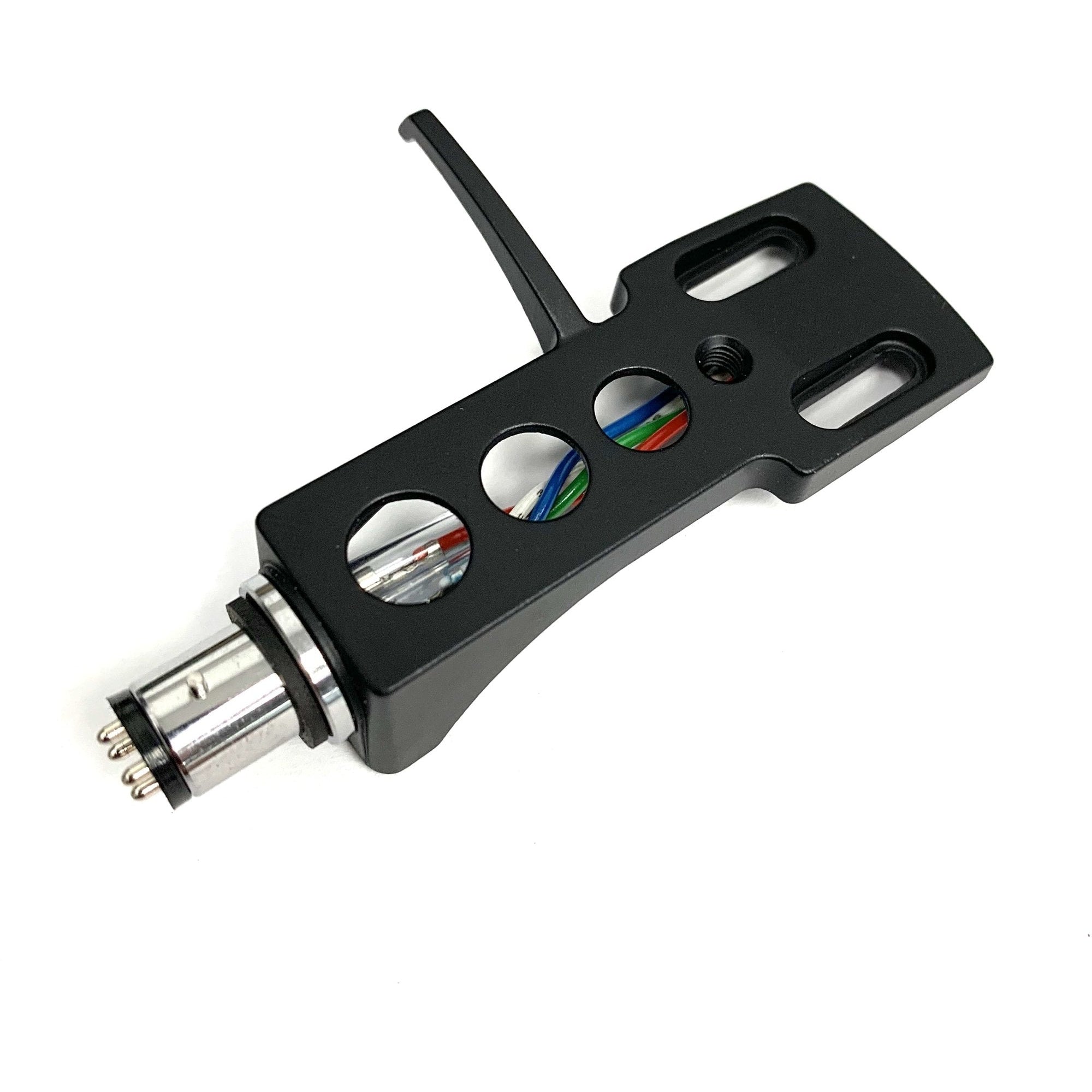

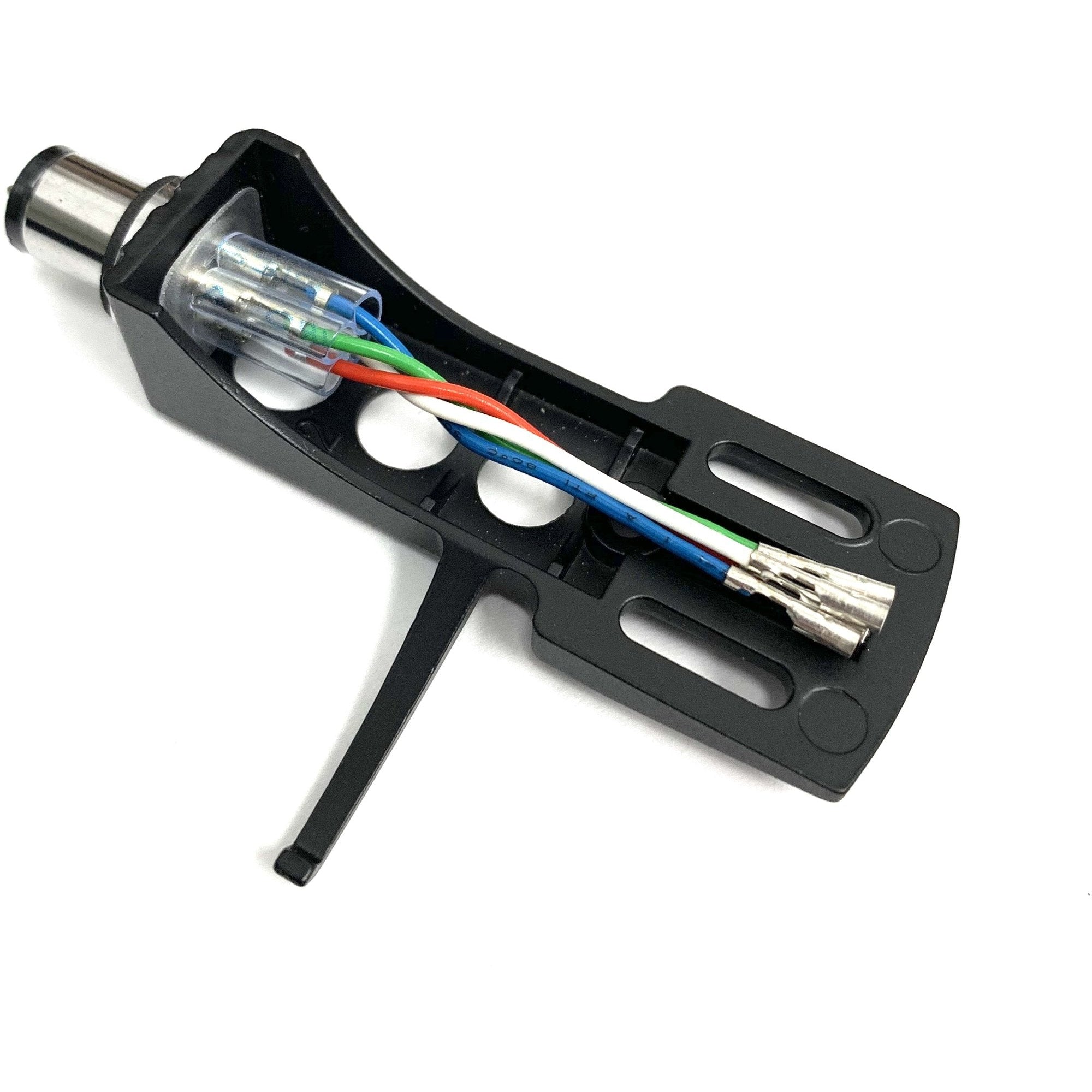

Ortofon Basic Aluminium Headshell

Lightweight 1/2" mount headshell made from aluminium, suitable for SME-style collar-lock tonearms. Four colour-coded high purity copper lead wires with plastic tube shields to prevent short-circuiting. Highly recommended as a cost-effective headshell for mounting 78, mono and OM cartridges.

Technical specifications

Stylus 5S technical specifications

Technical specifications

Technical specifications

Technical specifications

Technical specifications

2M styli interchangeability

2M styli interchangeability

2M styli interchangeability

2M styli interchangeability

2M styli interchangeability

Technical specifications

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configurations are not quite identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78.

2M Silver phono cartridge is an OEM (Original Equipment Manufacturer) model that takes most of the characteristics of the 2M Red. 2M Silver's special feature is silver-plated copper coils, the same coil wire material as in the 2M Bronze and Black models, with a reduced number of windings

Technical specifications

Technical specifications

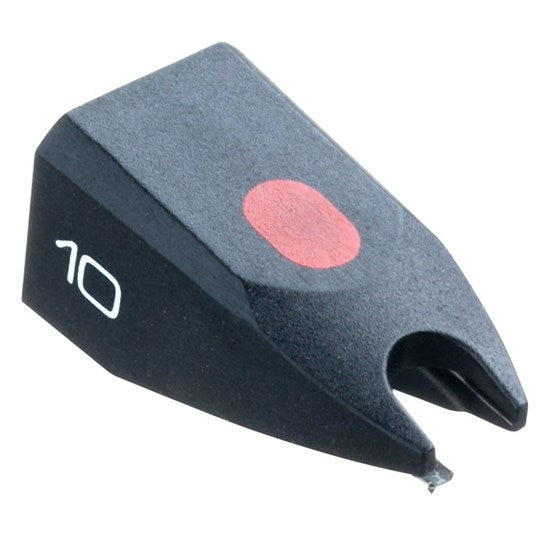

Replacement stylus for Ortofon 10 series cartridges

Technical data

Frequency range | 20-24,000 Hz
Frequency response | 20-20,000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force | 70 µm
Compliance, dynamic, lateral | 25 µm/mN
Stylus type | Elliptical
Stylus tip radius | r/R 8/18 µm
Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) | 1.5 g (15 mN)
Tracking angle | 20°
Stylus colour | Black
Recommended for following cartridges | Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12, Concorde STD, Dual ULM 65E, Dual ULM 66E

2M Red Magnetic Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Features

• an improved engine, which provides an increased output of 5.5mV
• a tipped Elliptical diamond and split pole pins with a copper wire

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award-winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Exclusive Plug-and-Play MkII solution

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features

• Universal mount fitting a wide range of S-shaped tonearms.
• Weight with a 2M cartridge pre-mounted 20 g.
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

NB: available only with a 2M cartridge pre-mounted on the headshell.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Features

• an improved engine, which provides a high level of sonic accuracy
• R 18µm Nude Spherical diamond that is an optimal solution for playing mono microgroove LP vinyl records
• 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Exclusive Plug-and-Play MkII solution

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features

• Universal mount fitting a wide range of S-shaped tonearms.
• Weight with a 2M cartridge pre-mounted 20 g.
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

NB: available only with a 2M cartridge pre-mounted on the headshell.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

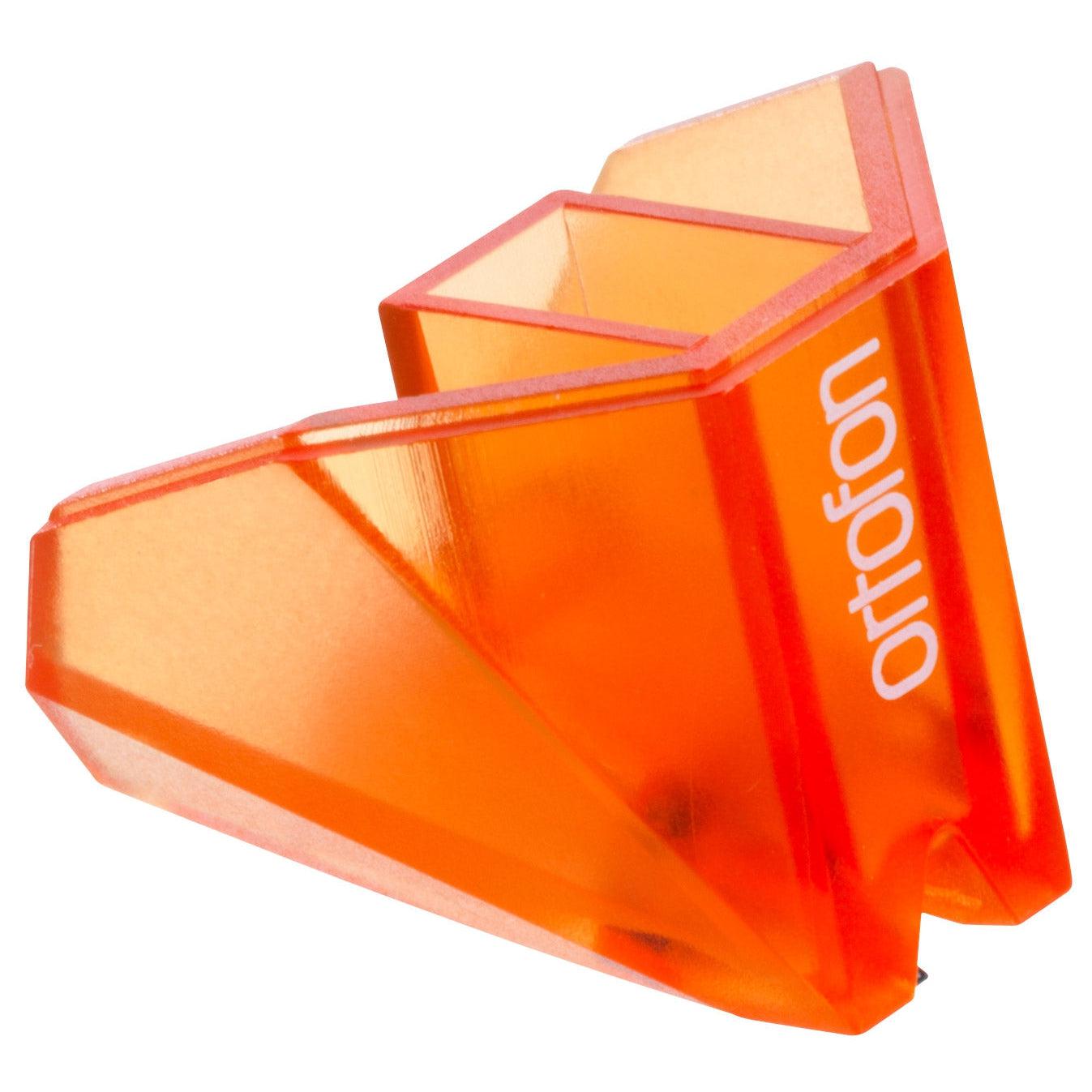

2M Bronze Magnetic Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound.

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

Features

• a special upgraded engine, which provides an increased output of 5mV
• split pole pins with a silver plated copper wire

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Exclusive Plug-and-Play MkII solution

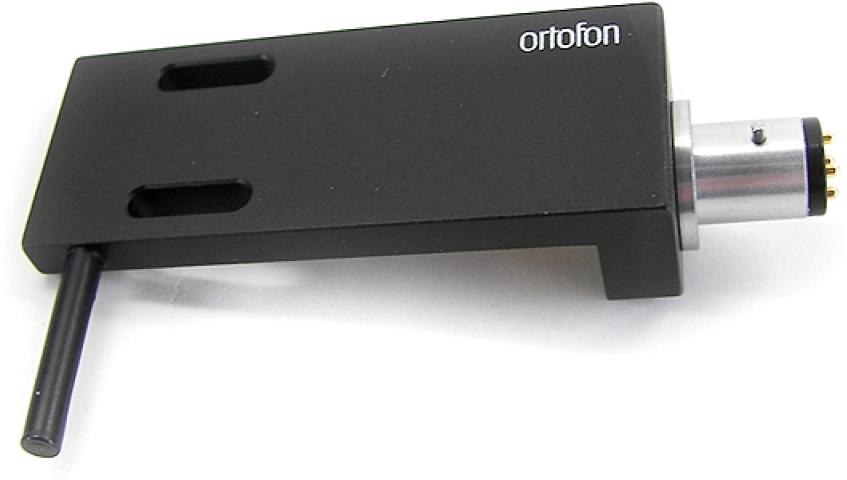

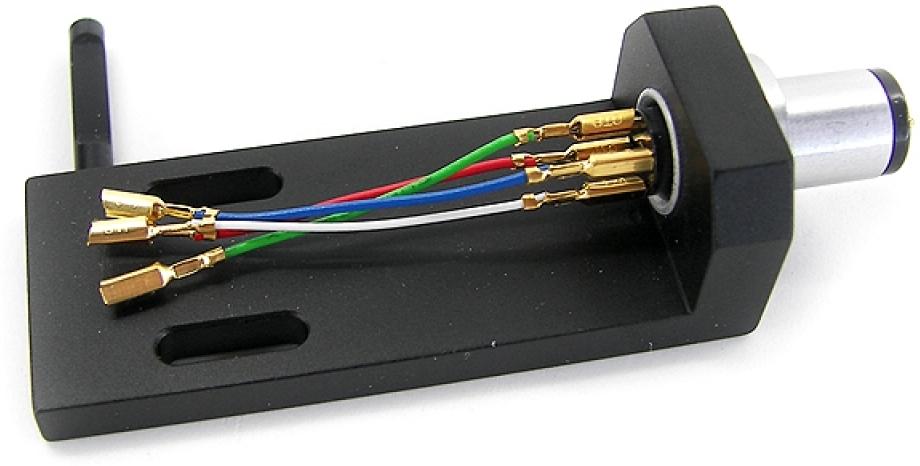

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features

• Universal mount fitting a wide range of S-shaped tonearms.
• Weight with a 2M cartridge pre-mounted 20 g.
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

NB: available only with a 2M cartridge pre-mounted on the headshell.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

2M Blue Magnetic Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Features

• an improved engine, which provides an increased output of 5.5mV
• Nude Elliptical diamond and split pole pins with a copper wire

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Exclusive Plug-and-Play MkII solution

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features

• Universal mount fitting a wide range of S-shaped tonearms.
• Weight with a 2M cartridge pre-mounted 20 g.
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

NB: available only with a 2M cartridge pre-mounted on the headshell.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Features

• The 2M Black is graced with a Shibata diamond which slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
• The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.
• The 2M Black uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78

The 2M Series is designed for precise and accurate retrieval of the information in the record groove

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award-winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Exclusive Plug-and-Play MkII solution

The 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!

Features

• Universal mount fitting a wide range of S-shaped tonearms.
• Weight with a 2M cartridge pre-mounted 20g
• The headshell body is manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
• Elegant hi-tech design
• Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with the Ortofon TA-110/ TA-210 tonearms, likewise with the major part of tonearms with universal mount

NB: available only with a 2M cartridge pre-mounted on the headshell.

2M Series styli interchangeability

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

• 2M Red, 2M Blue and 2M Silver
• 2M Bronze and 2M Black
• 2M Mono and 2M 78
