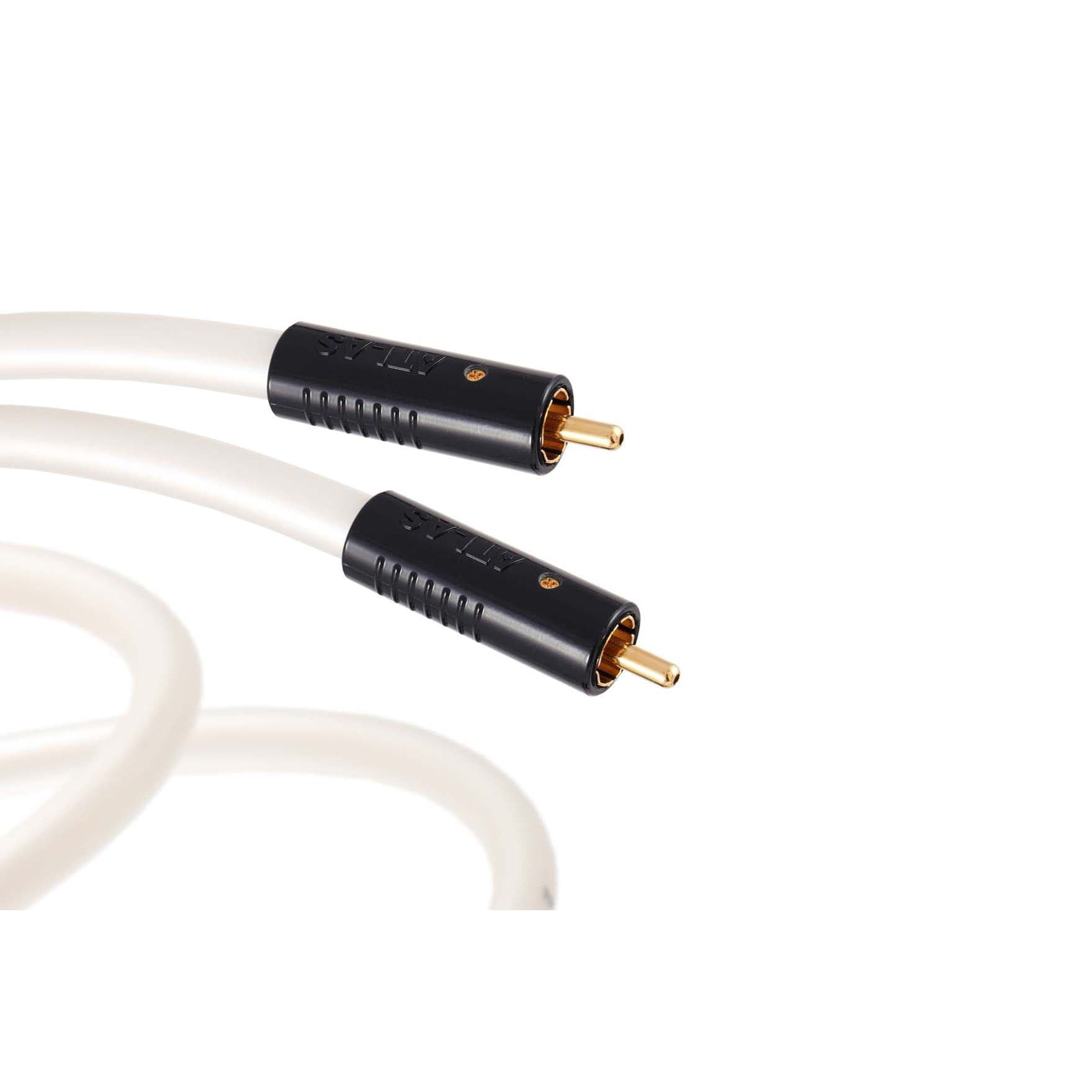

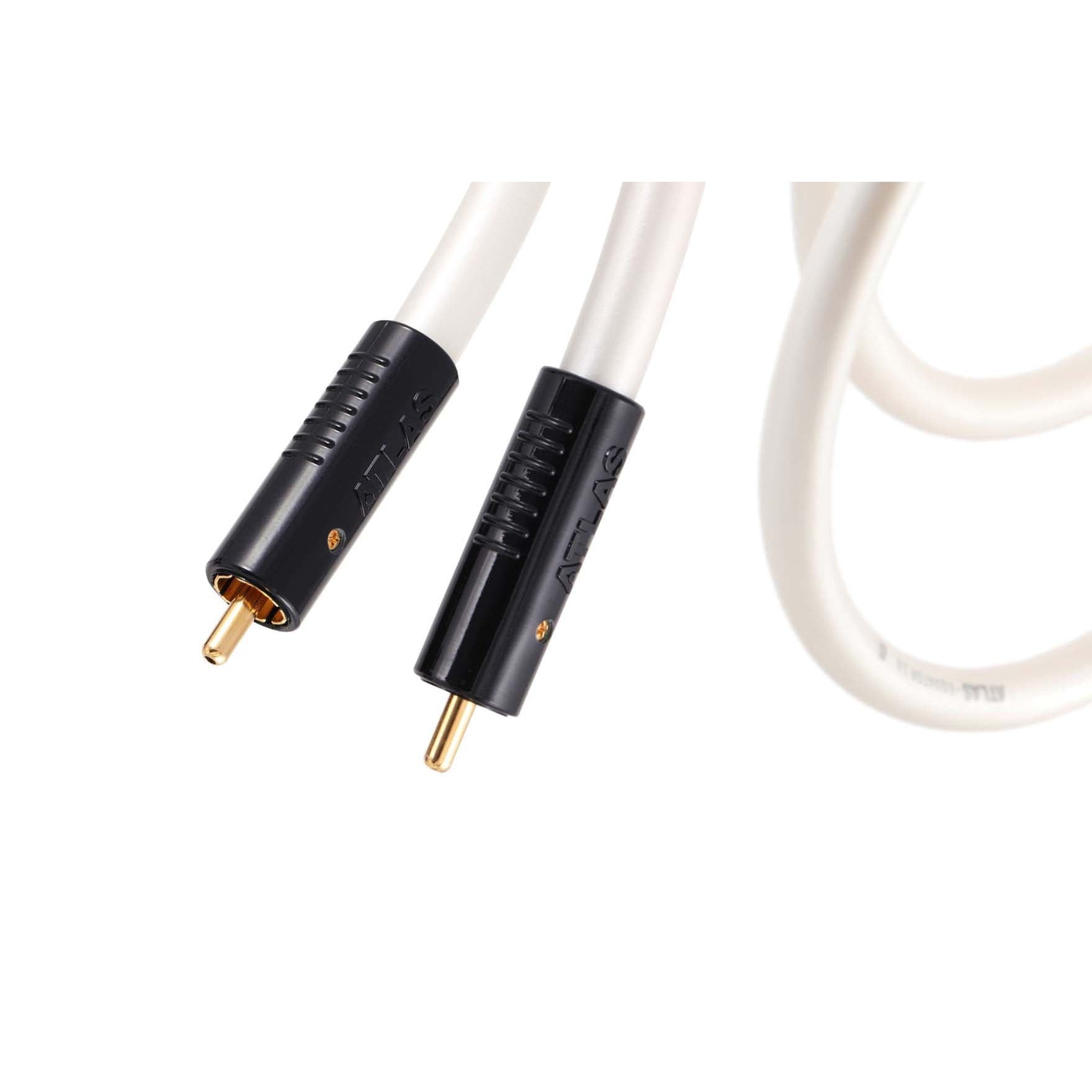

Atlas Equator Achromatic RCA Subwoofer Cable
Today’s sophisticated subwoofers for both audio and home cinema installations demand fast, accurate low frequency performance free of external RF (radio frequency) and EM (electro-magnetic) interference and noise picked up by the cable itself (usually heard as hum).
The Equator Achromatic’s conductor is now high purity OCC (Ohno Continuous Casting) copper encased with a superbly constructed double screen to provide maximum resistance to RFI (Radio Frequency Interference), helping make it perfectly suited to use with high-performance subwoofers in audio and/or home theatre systems..
The Equator range includes subwoofer, interconnect, streaming and speaker cables.
FEATURES
- Achromatic RCA
- OCC Conductors
- PEF Dielectric
- Co-ax Construction
Technology Specifications
Construction | Co-ax (Double Screened) |
Material | OFC |
Dielectric | PEF (foamed PE) |
Screen | OFC, 95% (double OFC braid) |
Capacitance | 53.27 pF/m |
Inductance | 0.40 µH/m |
Resistance | 0.027 Ohms/m |
Impedance | 78.25 Ohms at (1MHz) |
Outside Diameter | 7.0mm |
