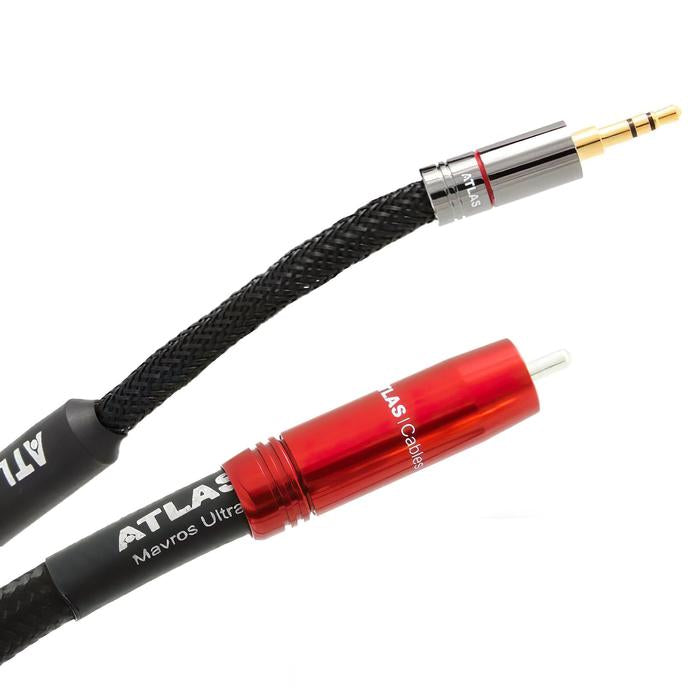

Atlas Mavros Metik 3.5mm—Ultra RCA S/PDIF Cable

DESCRIPTION

OUR FINEST WIDE BANDWIDTH S/PDIF CABLE, UTILISING A SILVER-PLATED COPPER CONDUCTOR, DESIGNED TO BE TECHNICALLY AND SONICALLY SUPERIOR, WITHOUT THE TYPICAL NOISE-RELATED ‘GLARE’ FREQENTLY FOUND IN INFERIOR CABLES. RECOMMENDED FOR USE WHENEVER SIGNAL INTEGRITY IS PARAMOUNT, FOR EXAMPLE BETWEEN CD TRANSPORT OR HI-RES MEDIA PLAYER/STREAMER AND DAC.

The Mavros 75 Ohm cable follows logically from our creating an outstanding analogue interconnect, the Mavros Ultra RCA.

The Atlas design team has developed a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects.

The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This new dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.

The co-axial double shielding layers are an aluminium Mylar™ foil followed by OFC (Oxygen Free Copper) braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn.

With a termination impedance of almost exactly 75 Ohms at 1 MHz and a low conductor-to-conductor capacitance of around 50 pF per meter the Mavros digital interconnect perfectly matches consumer digital audio equipment to ensure error-free transmission of high speed digital signals. The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables simply disappears.

FEATURES

• Metik Jack Plug
• UltraRCA Plug
• OCC Conductors
• PTFE

• Twin multi-core dd


SPECIFICATIONS

• CONSTRUCTION  Co-ax (1/0.7 Monofilament + 18/0.14)

• MATERIAL  Silver Plated OFC, gold-plated, alu-alloy cobalt sleeve

• DIELECTRIC Microporous PTFE

• SCREEN Braid + Al Mylar™

• CAPACITANCE  54.35 pF/m

• INDUCTANCE  0.230 µH/m

• RESISTANCE  0.065 Ohms/m

• IMPEDANCE  77.43 Ohms/m

• OUTSIDE DIAMETER  8.5mm
