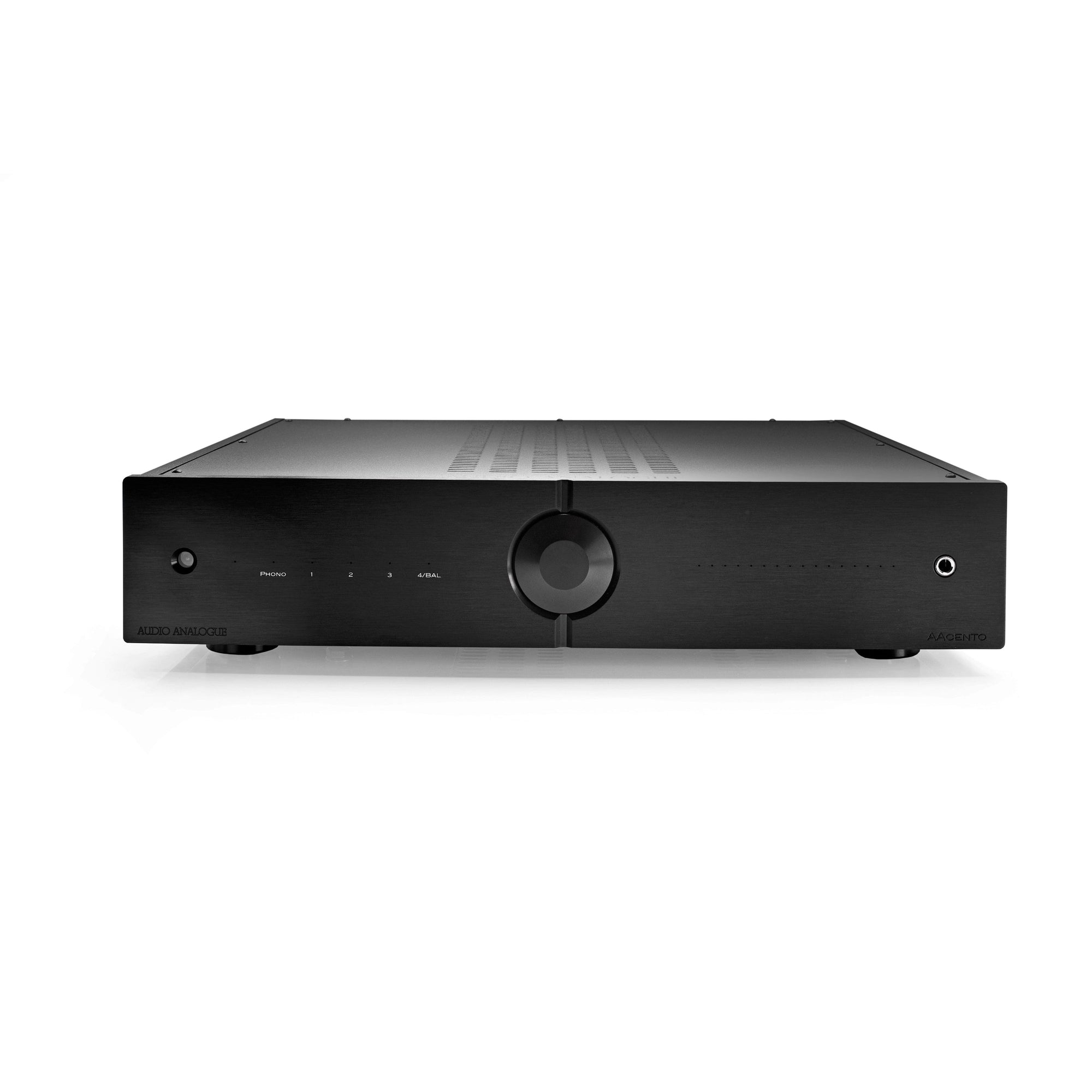

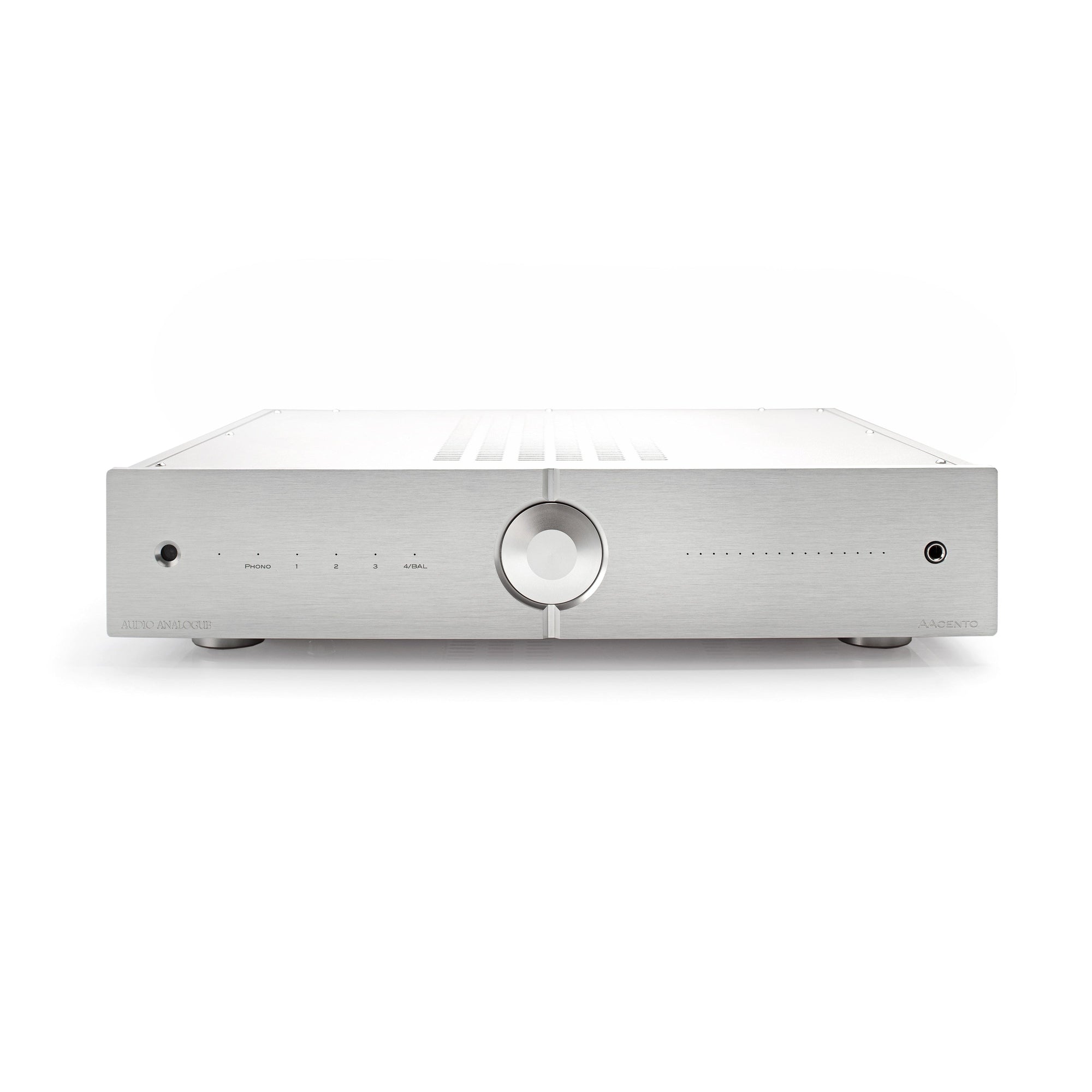

Acento is the new integrated amp from Audio Analogue and the first product of the new PureAA line. This line is made to recall the philosophy used for the most successful Audio Analogue products: a mix of simple design and reference sound performances to create products with the best value for money available on the market. Thanks to the cooperation with Airtech laboratories to develop Anniversary line, some key points and ideas in the design have been shared also in this new line and differently by the Anniversary line products, where each model is created to make in the best way only what it is created to do, in PureAA line the target is also to make products with more features in order to get the interest of those users looking for a wider range of functions and connections concentrated in a single product. This is easy to understand looking at below features description, as it is easy to understand that everything was made with extreme care and no compromise solutions almost impossible to find in products of the same category and price range.
480W toroidal transformer especially designed for the AAcento, no global feedback connection neither in power amplifier nor in the preamplifier, digital volume control doesn’t make use of operational amplifiers Relay input selector circuits to minimize non linearities, SMD oversized resistors to minimize thermal induced distortion, MM/MC Phono input with switchable subsonic filter, class A zero feedback Headphone Amplifier on board, native differential input, Direct Mode to use the integrated amplifier as a power amplifier in a home theatre system, microcontroller based equipment management, balance control, four different selectable volume scales
| Channels 2 |
|
Phono Input MM/MC |
| RCA inputs 3 |
| XLR inputs 1 |
| Pre-out 1 |
| Mono Out 2 |
|
Input impedance 47kΩ |
|
Power on 8Ω load 100W @ 1% THD + N |
|
Power on 4Ω load 200W @ 1% THD + N |
|
Power on 2Ω load300W @ 1% THD + N |
|
Headphones Output Power(pure class A) 16Ω 500mW |
|
Headphones Output Power(pure class A) 32Ω1W |
| Headphones Output Power(pure class A) 300Ω 120mW |
|
Sensitivity(8Ω output nominal power) 600mVRMS |
|
Frequency Response(Att. 0dB, -3dB band) 100KHz |
| Output resistance(2Ω nominal power and 1kHz)0.4Ω |
| Input Noise(Band limits 0Hz-80kHz/A-weighted)≈10µV/≈5µV |
| SNR≈100 dB |
| MM SNR 85 dB |
| MC SNR 65 dB |
| Standby power consumption(230VAC)< 1W |
| Dimensions (HxWxD)92x445x400 mm |
| Weight 14 Kg |
