Audio-Technica AT-LP120XBT-USB Direct-Drive Turntable
Pairs well with
Audio-Technica AT-LP120XBT-USB Turntable
- Analog, Wireless & USB
This fully manual turntable is modelled after the AT-LP120XUSB, but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.
Wireless, USB or Analog Connection
Features
- High-fidelity audio with Bluetooth® wireless technology
- Direct-drive, DC servo motor
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33/45/78 RPM speeds
- Anti-resonance, die-cast aluminium platter with felt mat
- AT-HS6 universal ½"-mount head shell and AT-VM95E Dual Moving Magnet™ phono cartridge with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
- Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology, to wired audio systems and powered speakers via included dual RCA output cable, or to computers via included USB cable
- Compatible with the high-quality Qualcomm® aptX™ audio codec
- Built-in switchable phono preamplifier for phono- or line-level output
- Stroboscopic platter with speed indicator
- Variable pitch control with quartz speed lock
- Removable plug-type target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)

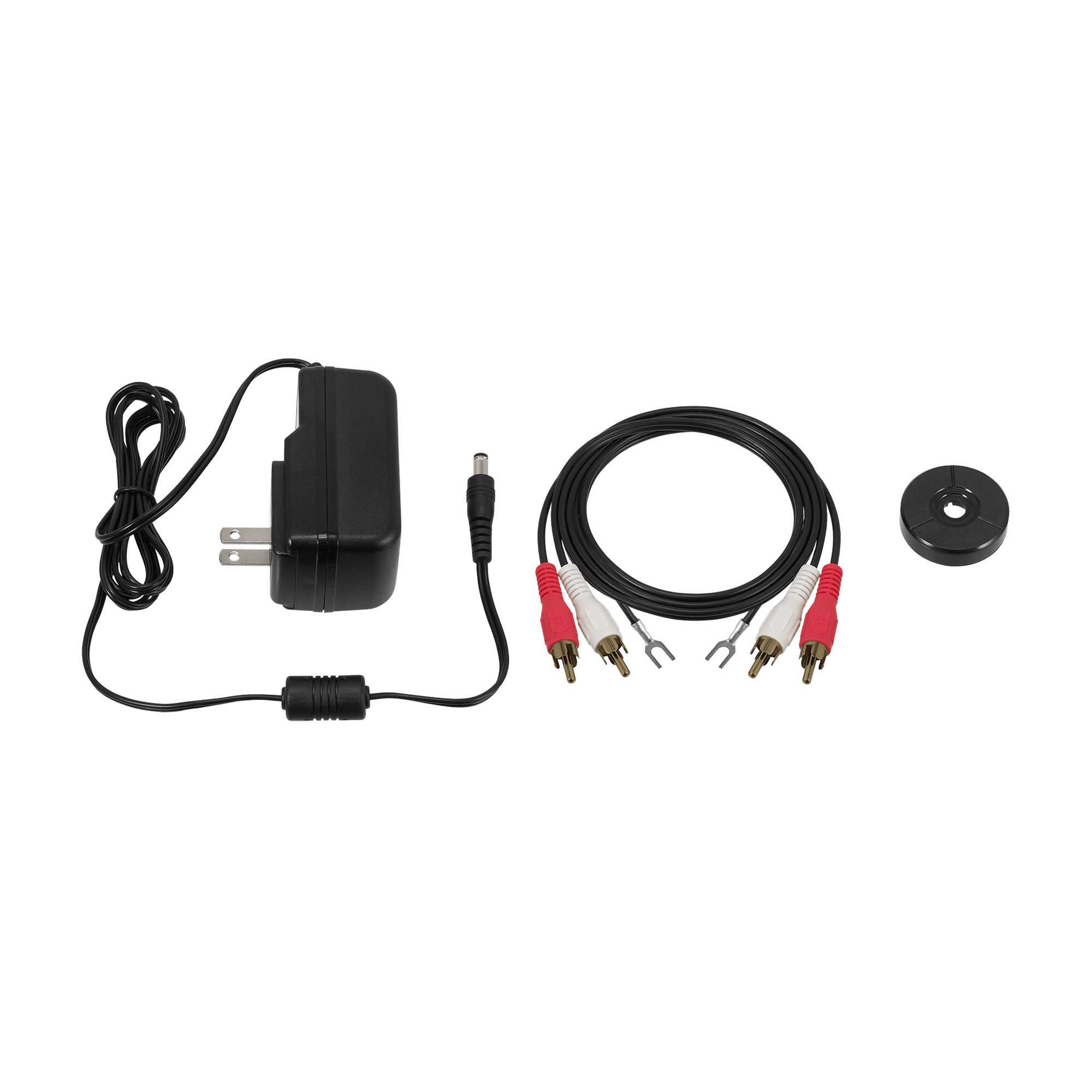

- Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover.
Specifications
| Turntable | |
|---|---|
| Type | 3-speed, fully manual operation |
| Motor | DC servo motor |
| Drive Method | Direct drive |
| Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
| Turntable Platter | Die-cast aluminium |
| Starting Torque | >1.0 kgf.cm |
| Braking System | Electronic brake |
| Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) |
| Signal-to-Noise Ratio | >50 dB |
| Output Level | Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
| USB Function | A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above |
| Power Supply Requirements | 100 to 240 V, 50/60 Hz, 1.5A Max |
| Power Consumption | 2.75 W |
| Dimensions | 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H |
| Weight | 8 kg (17.6 lbs.), without dust cover |
| Accessories Included | AT-VM95E phono cartridge; AT-HS6 head shell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light |
| Tonearm Type | Balanced S-shaped tonearm with detachable head shell |
| Effective Arm Length | 230.5 mm |
| Overhang | 16 mm |
| Tracking Error Angle | Less than 3 degrees |
| Applicable Cartridge Weight | 3.5-8.5 g |
| Anti-skating Range | 0-4 g |
| Replacement Stylus | AT-VMN95E |
| Communication System | Bluetooth Version 5.0 |
| Maximum Communication Range | Line of sight - approx. 10 m (33') |
| Compatible Bluetooth Profile | A2DP |
| Support Codec | SBC, Qualcomm® aptX™ audio |
