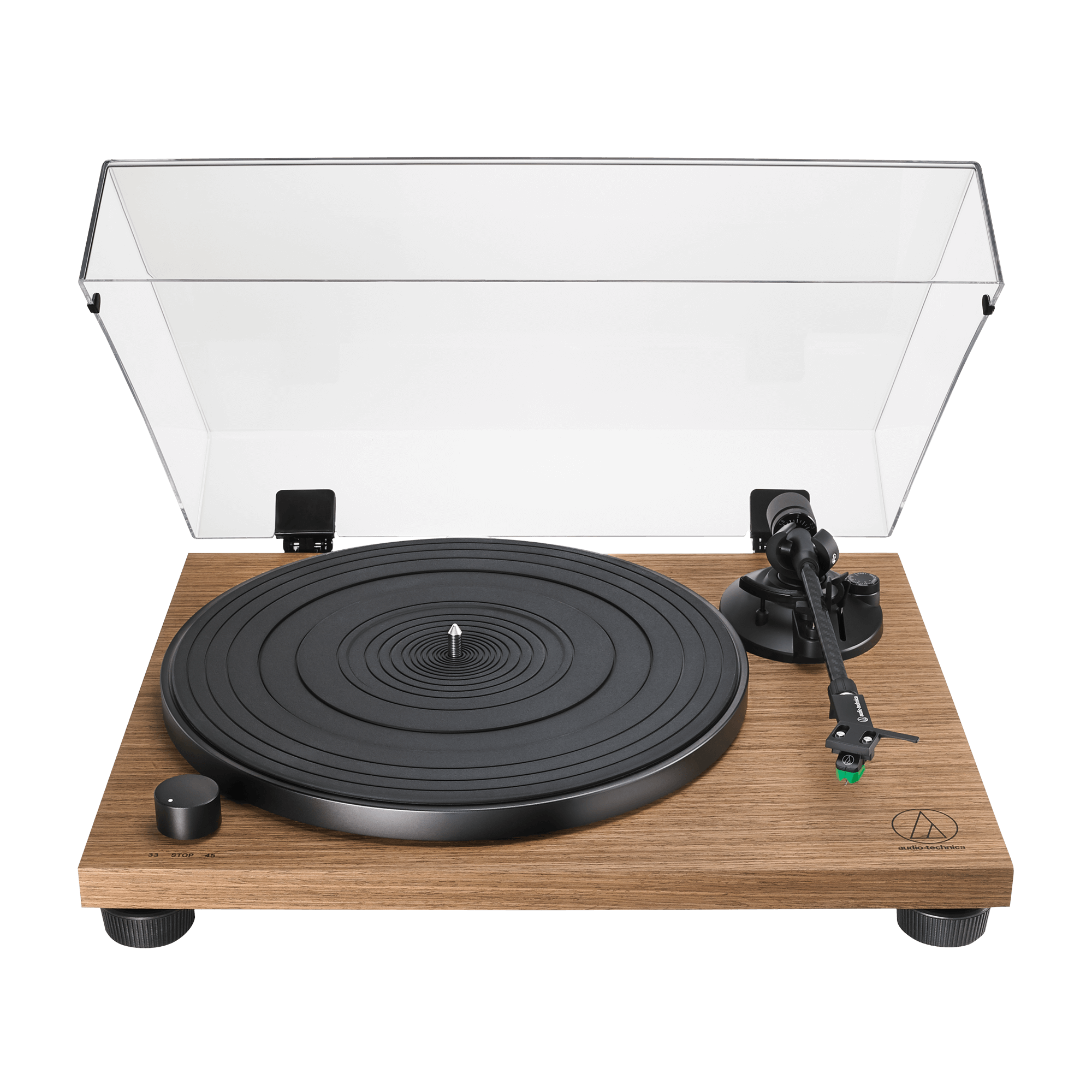

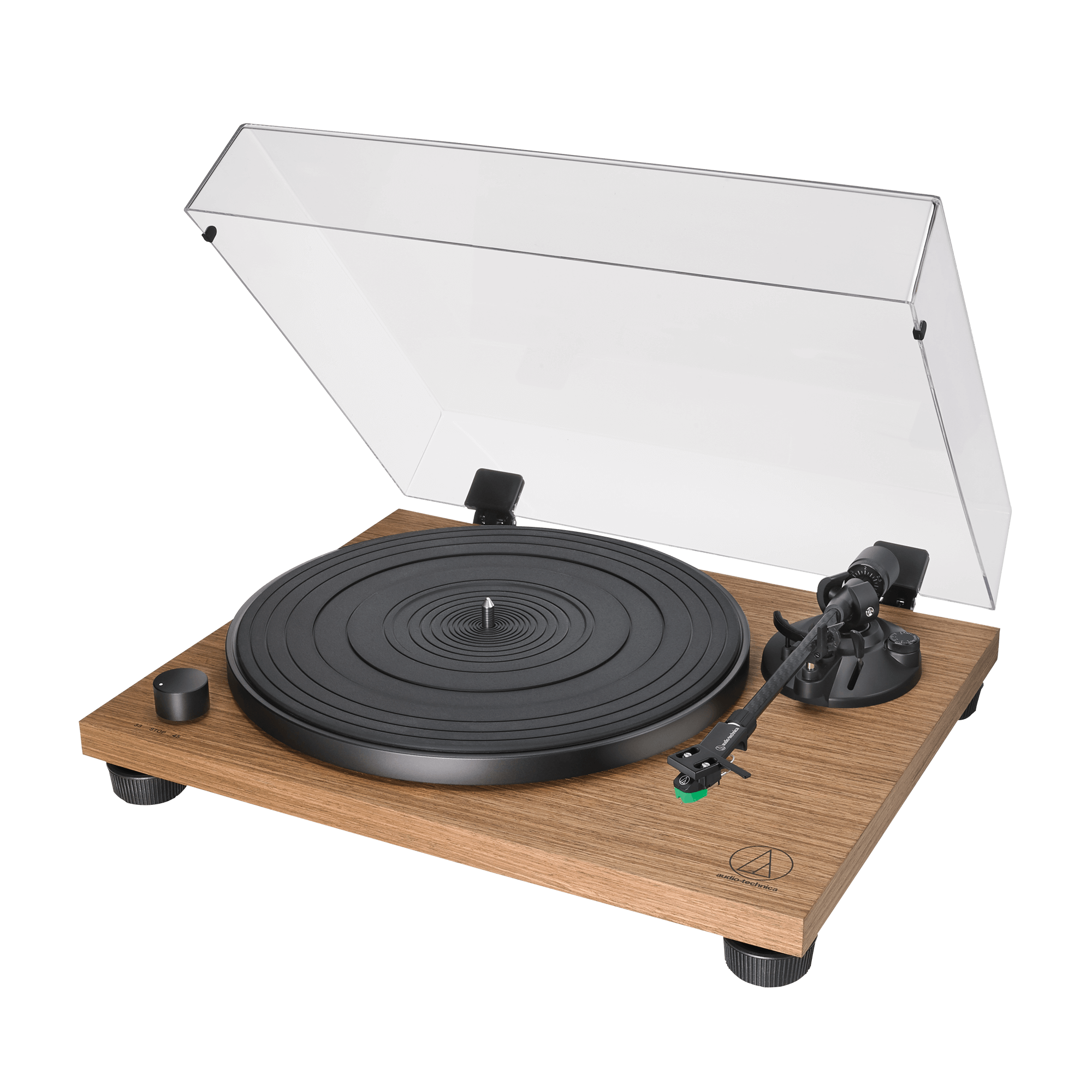

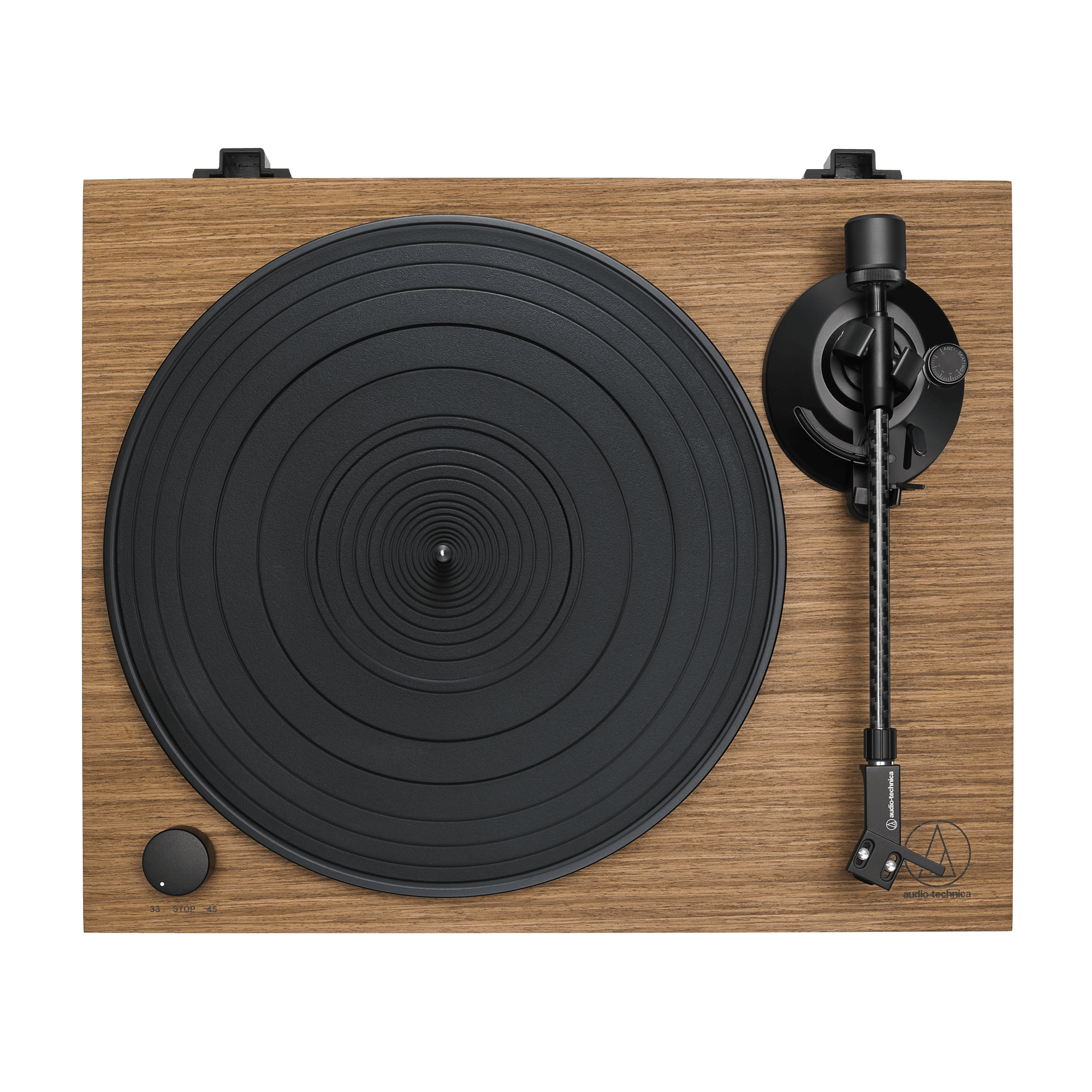

Audio-Technica AT-LPW40WN Fully Manual Turntable

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Features

  • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
  • Motor features a speed-sensor system to maintain accurate platter rotation speed
  • Fully manual operation
  • Adjustable dynamic anti-skate control
  • Professional anti-resonance, die-cast aluminium platter with rubber mat
  • AT-HS4 universal ½"-mount head shell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
  • AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
  • Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
  • Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer.
  • Built-in switchable phono pre-amplifier for phono or line-level output
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain.

Specifications

Turntable
Type 2-speed, fully manual operation
Motor DC servo motor w/speed stability control
Drive Method Belt-drive
Speeds 33-1/3 RPM, 45 RPM
Wow and Flutter < 0.15 % WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio > 60 dB
  • Output Level Pre-amp: ""PHONO"": 4.0 mV nominal at 1 kHz, 5 cm/sec
  • Pre-amp ""LINE"": 200 mV nominal at 1 kHz, 5 cm/sec
  • Phono Pre-Amp Gain 35 dB nominal, RIAA equalized
  • Power Supply Requirements 100 to 240 V, 50/60 Hz
  • Dimensions 117 x 420 x 340 (H x W x D mm)
  • Weight 5.0 kg

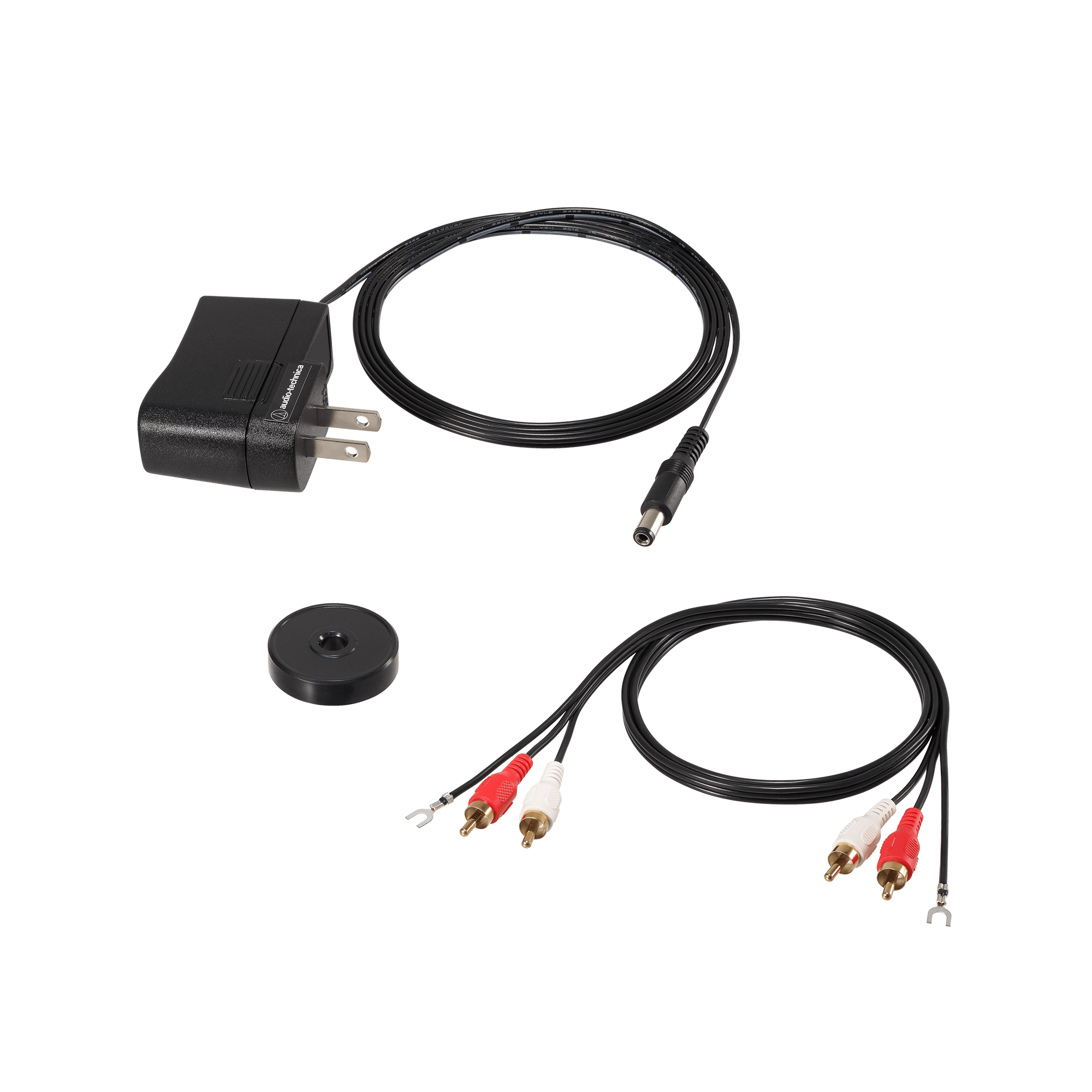

Accessories Included

AT-HS4BK Head shell,
AT-VM95E Dual Moving Magnet Cartridge with elliptical Stylus
Detachable RCA output cable (dual RCA male to dual RCA male)
AC adapter
45 RPM adapter
Counterweight
Rubber mat
