Audio-Technica AT-ART9XI Dual Moving Coil Cartridge
Pairs well with
Audio-Technica AT-ART9XI Dual Moving Coil Cartridge

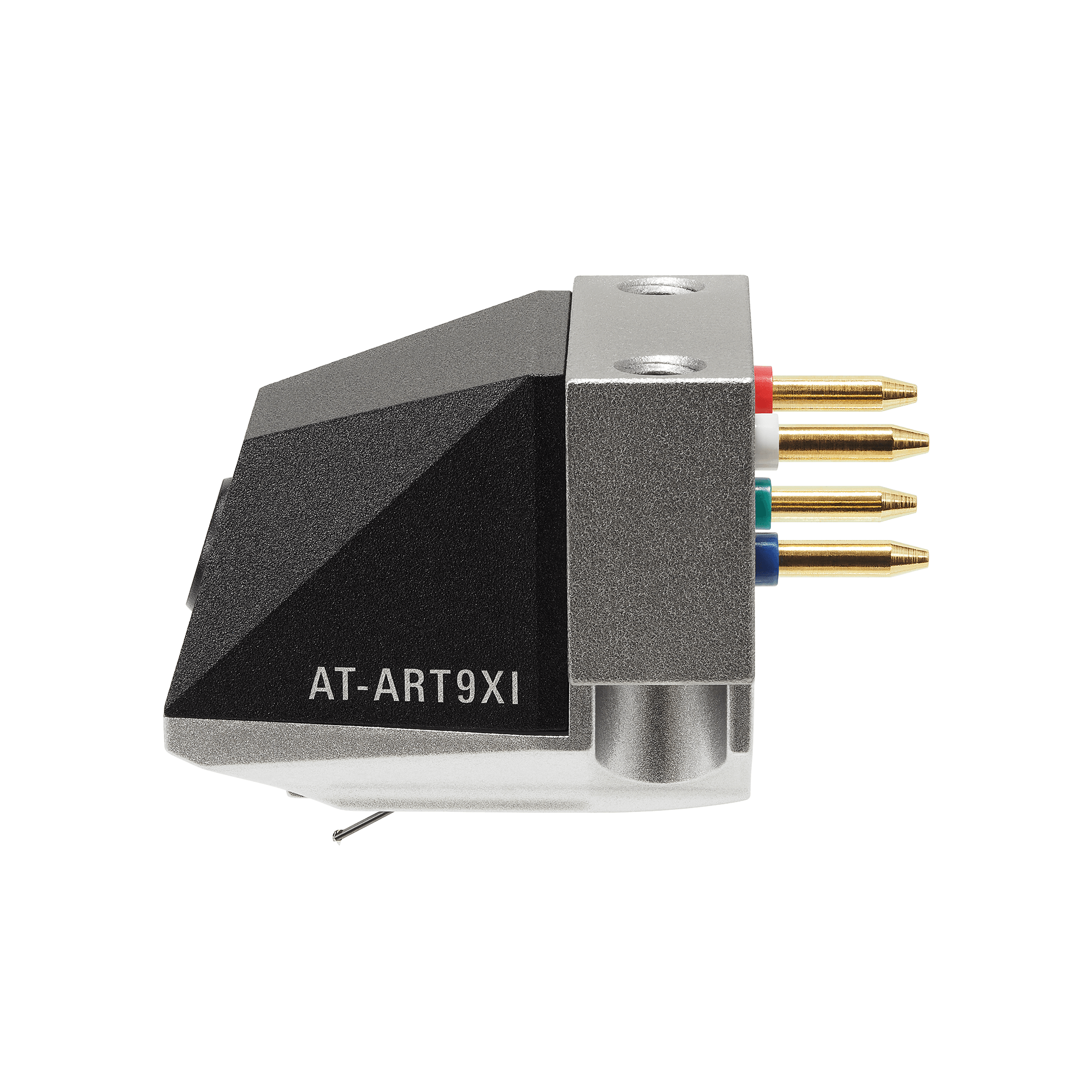

Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.
Features
- Audio-Technica’s flagship magnetic core moving coil cartridge
- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion.
- Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics.
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminium base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability.
- Hybrid body of machined aluminium and high-rigidity plastic reduces undesirable parasitic resonance.
- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-50,000 Hz |
| Channel Separation | 30 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.6-2.0 g (1.8 g standard) |
| Stylus Construction | Nude |
| Recommended Load Impedance | Min. 100 ohms (when head amplifier connected) |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 25 µH (1 kHz) |
| Output Voltage | 0.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Stylus Shape | Special line contact |
| Cantilever | 0.28 mm diameter solid boron |
| Static Compliance | 25 x 10-6 cm/dyne |
| Dynamic Compliance | 15 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 8.5 g (0.30 oz) |
| Dimensions | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |

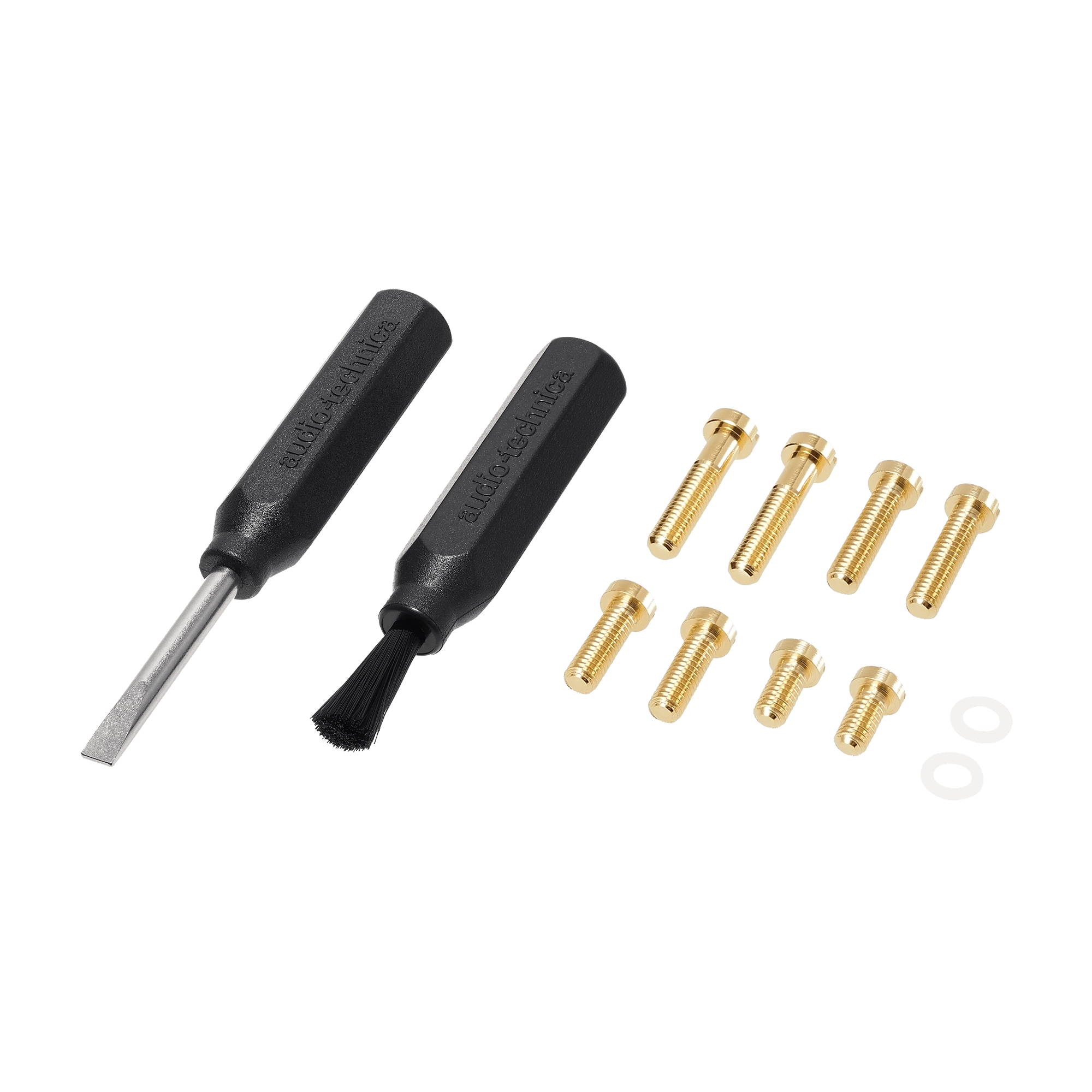

| Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush |
| Threaded Hole | M2.6 x 2 |
| Notes | Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
