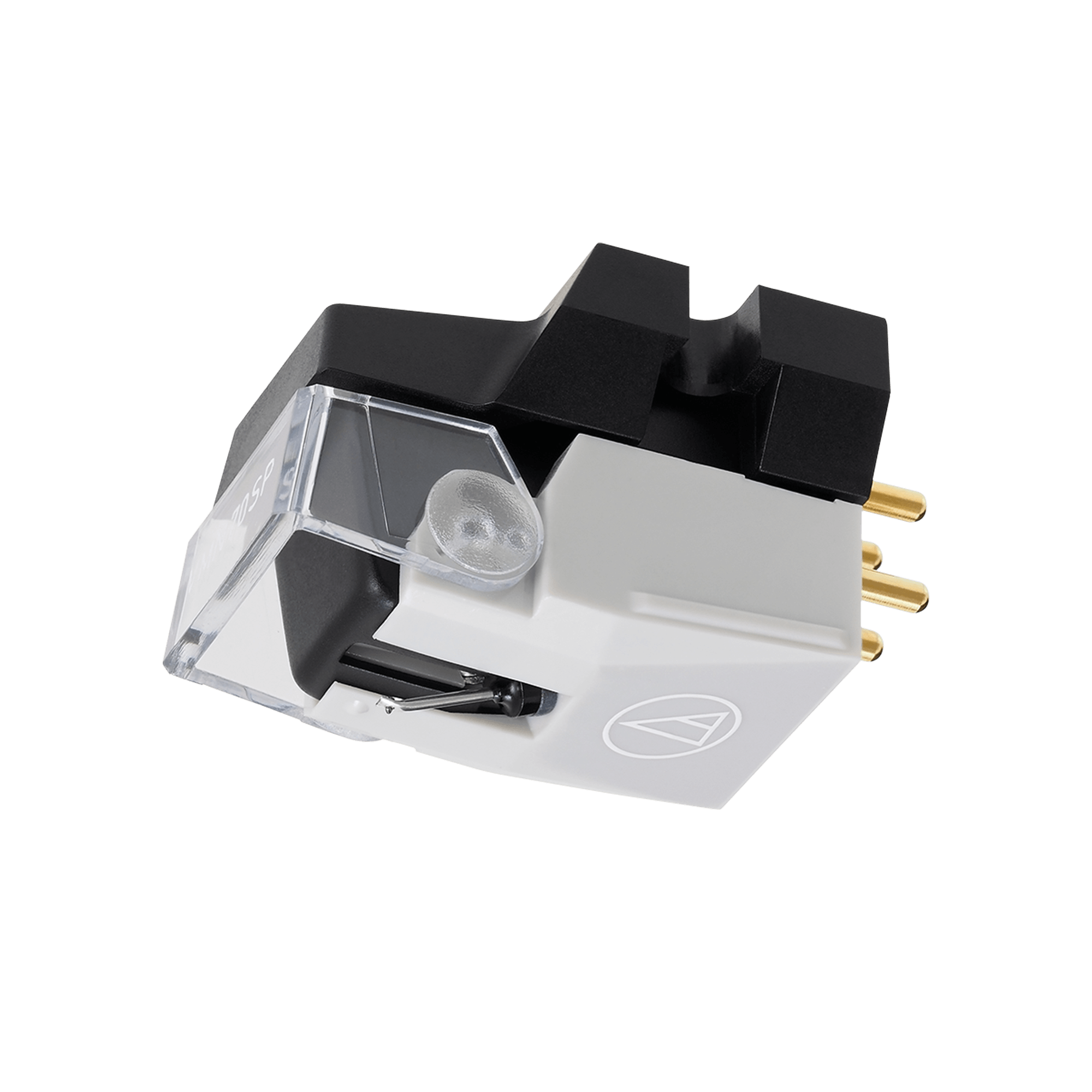

Audio-Technica VM670SP Dual Moving Magnet Cartridge
Audio-Technica VM670SP Magnet Cartridge

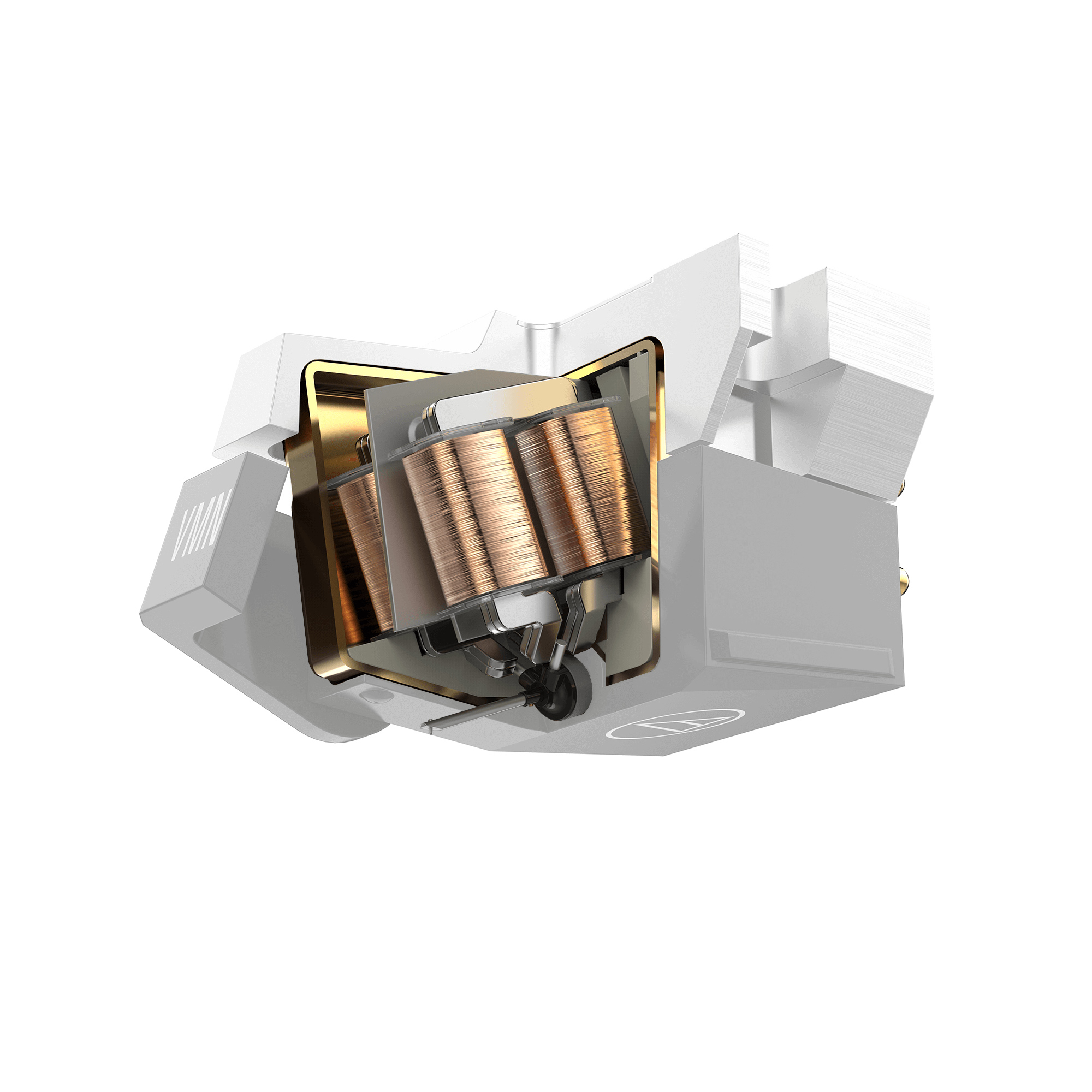

With a specialized body and internal wiring dedicated to monaural sound reproduction, plus a large curvature radius conical stylus, the VM670SP cartridge is designed for playing 78 RPM records. Part of the 600 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges – the VM670SP is equipped with dual magnets that are internally connected to reduce record noise and obtain a highly focused “centre” sound image that stereo cartridges can’t provide. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from a wide variety of eras. Includes mounting hardware.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 20,000Hz |
| Vertical Tracking Angle | 23˚ |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000Ω |
| Coil Impedance | 1,400Ω (1kHz) |
| Output Voltage | 3.0mV (1kHz, 5cm/sec.) |
| Stylus Shape | Conical Bonded (3mil) |
| Cantilever | Aluminium Pipe |
| Static Compliance | 15 x 10-6 cm/dyne |
| Dynamic Compliance | 2.0 x 10-6 cm/dyne (100Hz) |
| Mounting | 1/2” centres |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |

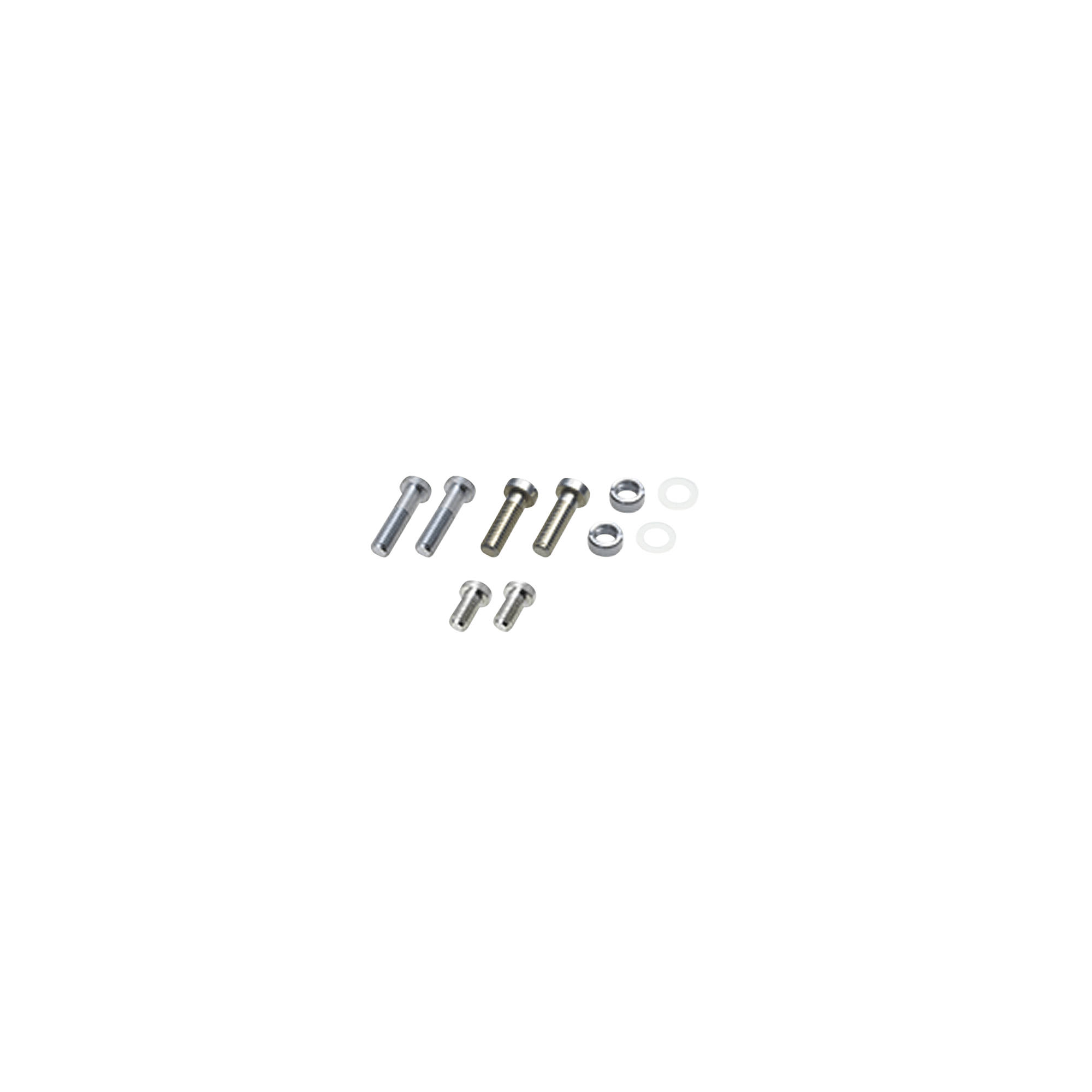

| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2 |
| Recommended Load Capacitance | 100 – 200pF |
| Replacement Stylus | VMN70SP |
| Stylus Size | 3.0 mil |
| Type | VM Type |
| Weight | 6.4g |
