Powerful Preamplifier Functionality

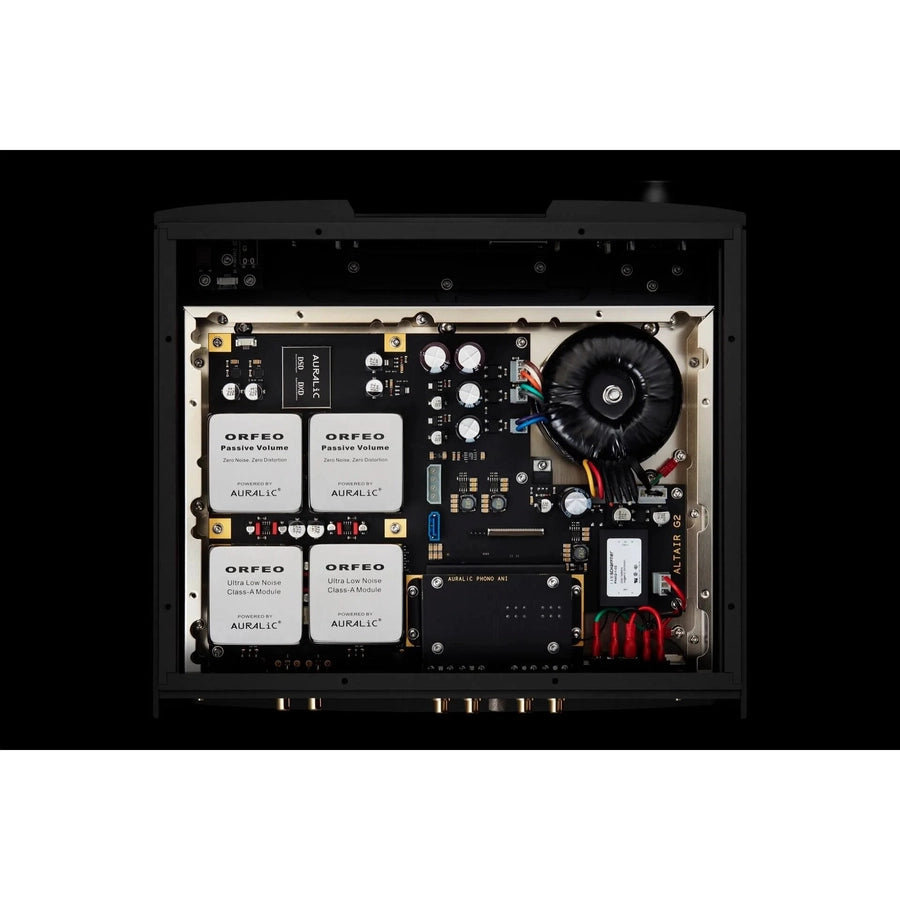

As a G2.1 Series product, ALTAIR G2.1 has been developed with properties and features that ensure its performance is considered “next-level,” and allow for it to be used as a stand-alone preamplifier. Analog Volume Control onboard, similar to that on the VEGA G2.1 and based on a resistive ladder design, provides an ultra-quiet signal, no matter the input. Class A Orfeo Output Modules allow for an ultra-low-noise and low-distortion signal in the analog domain. Altair G2.1 also houses two separate all-analog inputs, completely bypassing the digital structure and maintaining a pure analog signal from input to out. The first is a line-level analog input, including home theatre bypass functionality, and the second is an in-house engineered moving-magnet phono stage for an elegant, direct, and quiet connection to a turntable.
Auralic Altair G2.1 Specifications
Benchmark
Frequency Response: 20 - 20KHz, +/- 0.1dB*
THD+N: < 0.00012% (XLR); < 0.00015% (RCA), 20Hz-20KHz at 0dBFS
Dynamic Range: 126dB, 20Hz-20KHz, A-weighted
Streaming File Format
Lossless: AIFF, ALAC, APE, DIFF, DSF, FLAC, OGG, WAV and WV
Lossy: AAC, MP3 and WMA
Sampling Rate
PCM: 44.1KHz to 384KHz in 32Bit***
DSD: DSD64(2.8224MHz), DSD128(5.6448MHz), DSD256(11.2896MHz), DSD512(22.57892MHz)****
Control Software
AURALiC Lightning DS for iOS
AURALiC Lightning DS for web browser (device setting only)
OpenHome compatible control software (BubbleUPnP, Kazoo)
Roon (Roon Core required separately)

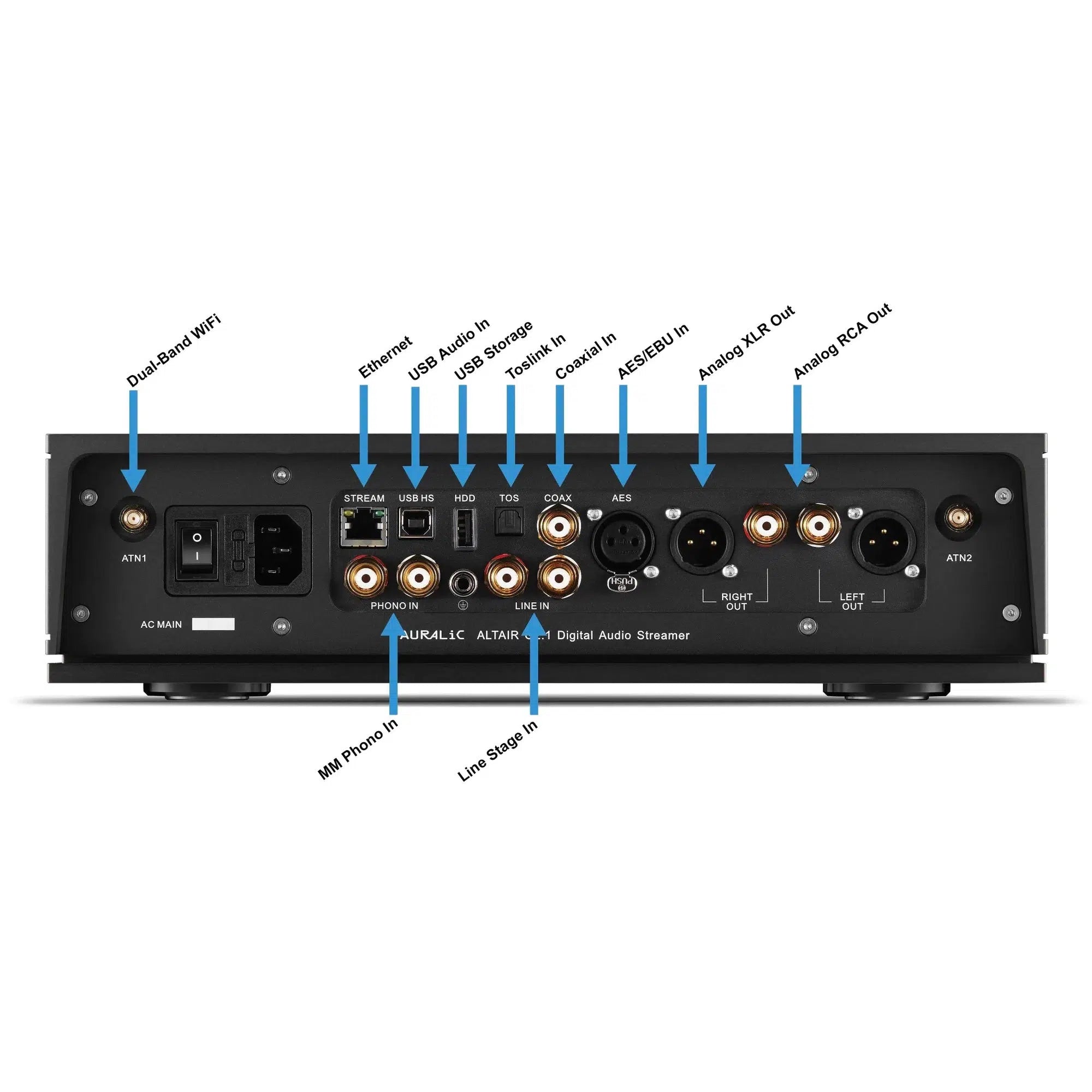

Audio Inputs
Digital Inputs: AES/EBU, Coaxial, Toslink, USB Audio
Analog Inputs: Line-stage (2Vrms max.), MM Phono (0.3Vrms max.)
Streaming Inputs: Network shared folder, USB Storage, USB CD Drive, Optional Internal Storage, UPnP/DLNA Media Server, Amazon Music Unlimited, HighResAudio, KKBOX, Qobuz Sublime+, TIDAL Connect, AirPlay, Spotify Connect, Internet Radio, RoonReady
Audio Outputs
Balanced: XLR (4.5Vrms at 0dBFS, output impedance 10ohm)
Unbalanced: RCA (4.5Vrms at 0dBFS, output impedance 50ohm)
Headphone: 6.35mm Headphone Jack (output impedance 5ohm)
Network
Wired: Gigabit Ethernet
Wireless: 802.11b/g/n/ac Tri-Band WiFi
Power Consumption
Playback: 50W at max.
Dimensions - W x D x H
13.4 x 12.6 x 3.2 in. (34cm x 32cm x 8cm)
Weight
22.0 lbs (10kg)
Product Finishing
Anodized aluminum case in matte black with copper EMI shielding enclosure.
Contents
AURALiC ALTAIR G2.1
2*External WiFi antenna (2pcs)
Power cord
USB Cable
User's guide
* Tested under Filter Mode Precise for all sampling rate
*** 352.8KHz and 384KHz and 32bit are supported through streaming and USB inputs only
**** By 'DoP V1.1' or native DSD protocol through streaming and USB inputs only
