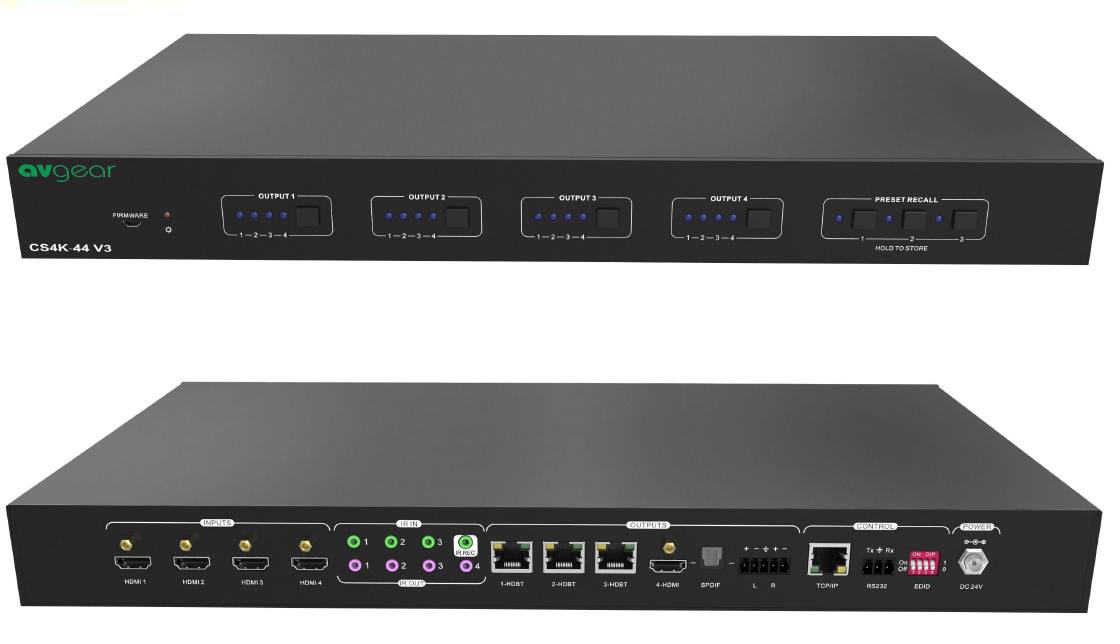

This 4K 4×4 HDBaseT Matrix with 3 Receivers. It features 4 HDMI inputs, 1 HDMI output with audio breakout and 3 HDBaseT outputs. The de-embedded audio can be output from SPDIF and L/R connector.
Features
- Supports HDMI resolutions up to 4K@60Hz 4:4:4, including 1080P 3D video
- Fully compliant with the HDMI 2.0 and HDCP 2.2 specifications
- Can transmit 4K signals to distances up to 131 feet (40 meters) and 1080P signals to distances up to 229 feet (70 meters) over a single CATx cable.
- Features three HDBaseT outputs and includes three receivers.
- Supports the 24V PoC feature, allowing the receivers to draw their power from the matrix over the CATx cable.
- Includes a local HDMI output with corresponding digital optical S/PDIF and stereo L/R analog outputs.
- Smart EDID management for various applications and customised settings.
- Controllable via RS232, IR and TCP/IP.
Specifications
HDBaseT Matrix
| Video | |
| Video Input | (4) HDMI |
| Video Input Connector | (4) Type-A female HDMI |
| Video Input Resolution | Up to 4Kx2K@60Hz 4:4:4 |
| Video Output | (3) HDBaseT, (1) HDMI |
| Video Output Connector | (3) RJ45, (1) Type-A female HDMI |
| Video Output Resolution | HDBaseT: Up to 4Kx2K@60Hz 4:4:4 |
| HDMI Version | Up to 2.0 |
| HDCP Version | Up to 2.2 |
| HDMI Audio Signal | LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, and DTS-HD Master Audio pass-through |
| Audio | |
| Audio Output | (1) SPDIF, (1) L/R |
| Audio Output Connector | (1) Toslink connector, (1) 5-pin phoenix plug |
| Frequency Response | 20Hz – 20KHz, +or-3dB |
| Max Output Level | 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal |
| THD+N | < 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level) |
| SNR | > 80dB, 20Hz – 20KHz bandwidth |
| Crosstalk Isolation | > 70dB, 10KHz sine at 0dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping) |
| Frequency Response Deviation | < ± 0.5dB 20Hz – 20KHz |
| Output Load Capability | 1KΩ and higher (Supports 10x paralleled 10KΩ loads) |
| Stereo Channel Separation | >70dB@1KHz |
| Control | |
| Control Port | (1) FIRMWARE, (3) IR IN, (1) IR REC, (4) IR OUT, (1) TCP/IP, (1) RS232, (1) EDID |
| Control Connector | (1) Micro-USB, (8) 3.5mm jacks, (1) RJ45, (1) 3-pin terminal block, (1) 4-pin DIP switch |
| General | |
| Transmission Standard | HDBaseT |
| Transmission Distance | 1080P@60Hz ≤ 230 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters) |
| Bandwidth | 18Gbps |
| Operation Temperature | -5~ +55℃ |
| Storage Temperature | -25 ~ +70℃ |
| Relative Humidity | 10%-90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24V DC 2.71A |
| Maximum Power Consumption | 58watts |
| Dimension (W*H*D) | 436.4mm x 44mm x 236.5mm |
| Net Weight | 1.9KG |
HDBaseT Receiver
| Receiver | |
| Input | (1) HDBT |
| Input Connector | (1) RJ45 |
| Output | (1) HDMI |
| Output Connector | (1) Female type-A HDMI |
| Control | (1) IR IN, (1) IR OUT, (1) RS232 |
| Control Connector | (2) 3.5mm mini jacks, (1) 3-pin terminal block |
| General | |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080p ≤ 70m; 4K×2K ≤ 40m |
| Resolution | Up to 4K×2K@60Hz 4:4:4 |
| Bandwidth | 18Gbps |
| HDMI Standard | Up to 2.0 |
| HDMI Version | Up to 2.2 |
| Power Consumption | 14W (max) |
| Operating Temperature | -5℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humidity | 10%-90% |
| Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 2A |
| Dimension (W*H*D) | 115 mm x 16 mm x 84 mm |
| Net Weight (g) | 153 g |
