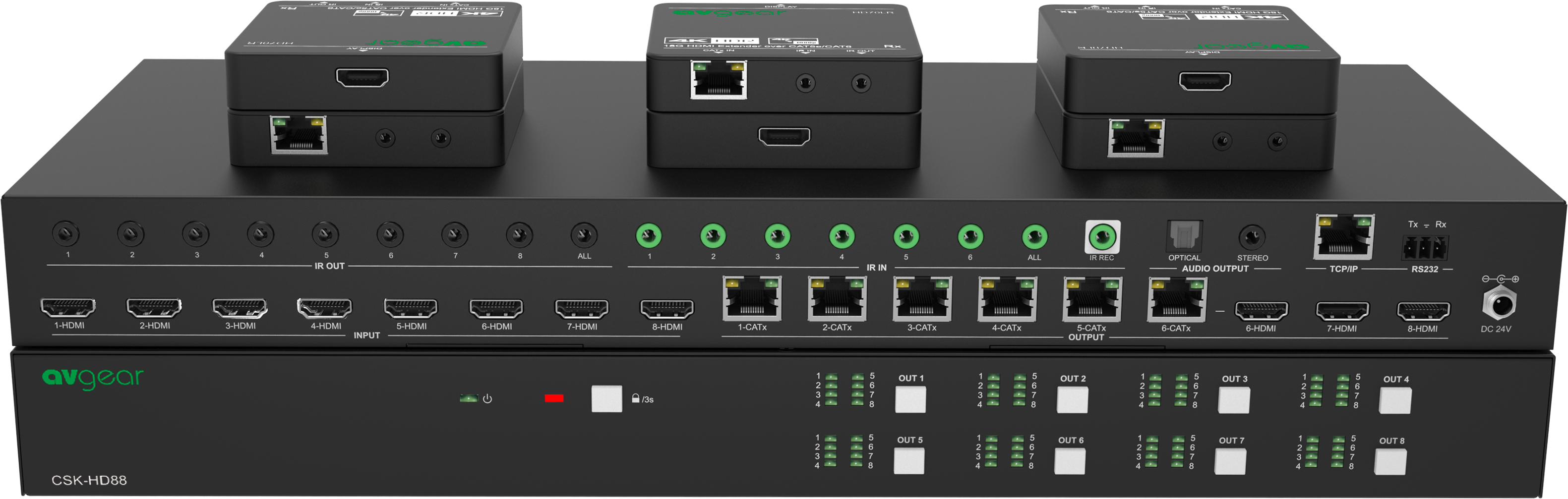

AV Gear AVG-CSK-HD88 KIT
- 8×8 HDBT Matrix Switcher 18Gbps
The AVG-CSK-HD44 is a professional 8×8 HDMI V2.0 Matrix Switcher with audio breakout. It transmits HDMI signals up to 70m over single CATx cable. All of the HDMI outputs support a down-scaling function. It also features SPDIF and analog audio outputs for audio breakout, comprehensive EDID management and advanced HDCP handling.
Features
- 8×8 HDMI V2.0 Matrix Switcher.
- Supports 4K@60 4:4:4, HDR, HDCP2.2.
- 4K/ 1080p HDMI signals extension up to 70m.
- Audio out can be de-embedded from any output.
- HDMI outputs support 4K to 1080p down-scaling.
- Controllable by front panel, IR, RS232 and TCP/IP.
- CATx outputs support 12V PoC power for receivers.
- Supports bi-directional IR pass-through.
Specifications
|
Video |
|
|
Video Input |
(8) HDMI |
|
Input Connector |
(8) Type-A female HDMI |
|
HDMI Input Resolution |
Up to 4K@60Hz 4:4:4, HDR |
|
Video Output |
(6) CATx, (3) HDMI |
|
Output Connector |
(6) RJ45, (3) Type-A female HDMI |
|
HDMI Output Resolution |
Up to 4K@60Hz 4:4:4, HDR10 |
|
CATx Output distance |
Up to 70m |
|
HDCP Version |
Up to 2.2 |
|
HDMI Audio Signals |
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
|
Audio Output |
|
|
Output |
(1) Digital SPDIF audio, (1) Analog stereo audio |
|
Output Connector |
(1) Toslink connector, (1) 3.5mm Jack |
|
Digital SPDIF Audio Format |
Supports PCM, Dolby Digital, DTS, DTS-HD |
|
Analog Stereo Audio Format |
Supports PCM |
|
Frequency Response |
20Hz – 20KHz,±3dB |
|
Max Output Level |
±0.05dBFS |
|
THD+N |
< 0.1%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0dBFS level (or max level) |
|
SNR |
> 90dB, 20Hz-20KHz bandwidth |
|
Crosstalk Isolation |
< -70 dB, 10 kHz sine at 0 dBFS level (or max level before clipping) |
|
Noise |
-90dB |
|
Control |
|
|
Control port |
(1) IR EYE, (1) RS232, (1) TCP/IP, |
|
Control Connector |
(1) 3.5mm jack, (1) 3-pin terminal block, (1) RJ45 |
|
General |
|
|
Transmission Distance |
4K/60Hz/444 5m,4K/60Hz/420 10m,1080P 15m |
|
Bandwidth |
18Gbps |
|
Operation Temperature |
-5℃ ~ +55℃ |
|
Storage Temperature |
-25℃ ~ +70℃ |
|
Relative Humidity |
10% ~ 90% |
|
External Power Supply |
Input: AC 100V~240V, 50/60Hz; Output : 24V DC 2.71A |
|
Power Consumption |
48W |
|
Dimension (W*H*D) |
436mm*44mm*180mm |
|
Net Weight |
2.35kg |
HD70LR
|
Receiver |
|
|
Input |
(1) CATx IN |
|
Input Connector |
(1) RJ45 |
|
Output |
(1) DISPLAY |
|
Output Connector |
(1) 19-pin type-A female HDMI |
|
Control |
(1) IR IN, (1) IR OUT |
|
Control Connector |
(2) 3.5mm mini jacks |
|
General |
|
|
Video Resolution |
Up to 4K@60Hz 4:4:4, HDR 10 |
|
HDMI Audio Format |
Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch. |
|
Transmission Distance |
4K/1080p ≤ 70 meters (230ft) Note that the CATx cable length should not be less than 15 meters for best video output.. |
|
HDMI Version |
HDMI V2.0 |
|
HDCP Version |
HDCP 2.2 compliant. (The HDCP of output follows the HDCP version of display device.) |
|
EDID |
EDID management |
|
Power Supply |
Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A |
|
Power Consumption |
4W (Max) |
|
Operation Temperature |
-5~55℃ |
|
Storage Temperature |
-25~70℃ |
|
Relative Humidity |
10%-90% |
|
Dimensions (W*H*D) |
80mm x 16.8mm x 80mm |
|
Net Weight |
70g |
