AV Gear AVG-DAX-100 Audio over CAT Extender
AV Gear AVG-DAX-100 Audio over CAT Extender
AV Gear AVG-DAX-100 Audio over CAT Extender
AV Gear AVG-DAX-100 Audio over CAT Extender

AV Gear AVG-DAX-100 Audio over CAT Extender

Brand: AV Gear

$220.00
/
10 interest free payments from $22.00 with

AV Gear AVG-DAX100 Audio over CAT Extender

  • with built in DAC & ADC

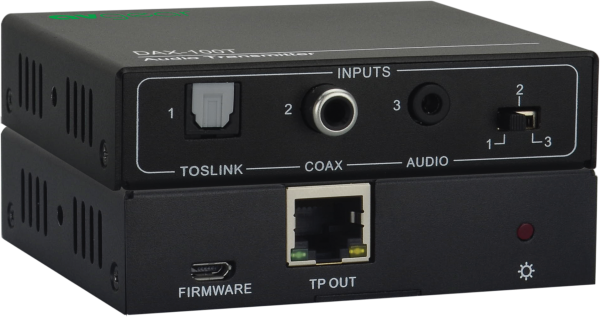

The AVG-DAX-100 is an audio extender, which includes a Transmitter and a Receiver. It extends TOSLINK, COAX signal up to 290m and Analogue Stereo signals up to 170m via CAT cable.

Features

  • Select from three audio inputs, TOSLINK, COAX or Analogue Stereo.
  • Three synchronous audio outputs. TOSLINK, COAX and Analogue Stereo.
  • Transmitter is powered from the Receiver via PoC technology.
  • Can transmit TOSLINK, COAX signals up to 290m and the Analogue  Stereo signals up to 170m over a single CATx cable.

 Specifications

Transmitter Receiver
Input TOSLINK, COAX or AUDIO Input 1 TP IN
Output 1 TP OUT Output TOSLINK, COAX & RCA (L+R)
General
Audio Format TOSLINK & COAX: PCM/Dolby/DTS; AUDIO: Stereo
Sound Channel TOSLINK & COAX: 2.0 – 7.1
Frequency Response 20 Hz to 20 kHz, ±3 dB
Sample Rate TOSLINK & COAX: 48k / 96k / 192k 16bit / 18bit / 24bit
Transmission Distance Analogue Stereo: Up to 170m (CAT5e / 6 / 7) TOSLINK/COAX: Up to 290m (CAT5e / 6 / 7)
Power Supply Input: 100VAC ~ 240VAC, 50 / 60Hz; Output: 12VDC, 1A
Power Consumption 2.5W (Max)
Work Temperature -10 ~ +55℃
Humidity 10% ~ 90%
Net Weight Transmitter: 110g; Receiver: 119g
Dimension(W*H*D) 88mm x 80mm x 21.5mm
