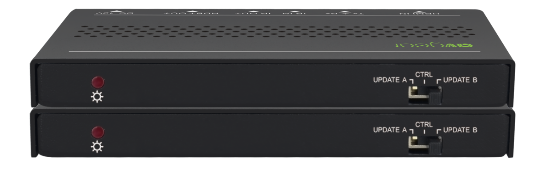

The AVG-HD320 is an ultra-compact extender set consisting of a Transmitter and a Receiver. HDMI signal is input into the transmitter and HDBaseT 2.0 technology is used to transmit high-resolution 1080p / 4K HDR HDMI signals to the receiver up to 70 / 40m via a Cat5e / Cat6a cable.
| Spec | Transmitter | Receiver |

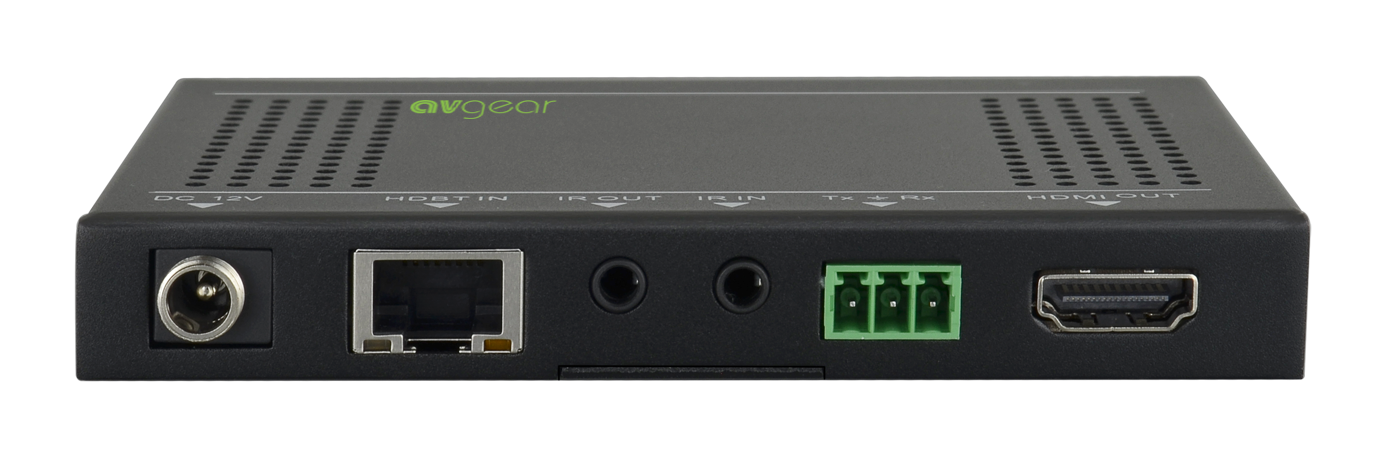

| Input | HDMI IN | HDBT IN |
| Output | HDBT OUT | HDMI OUT |
| Control Ports | IR IN, IR OUT, RS232 | IR IN, IR OUT, RS232 |
| General | ||
| Transmission Mode & Distance | HDBaseT; 1080p ≤ 70m; 4K×2K ≤ 40m | |
| Resolution | Up to 4K×2K@60Hz 4:4:4 | |
| Bandwidth | 18Gbps | |
| HDMI Standard | HDMI2.0 & HDCP2.2 | |
| Power Consumption | 14W (max) | |
| Temperature | -10 ℃ ~ 50℃ | |
| Humidity | 0% ~ 90% | |
| Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 2A | |
| Dimension (W*H*D) | 115mm x 16 mm x 84mm | 115mm x 16 mm x 84mm |
| Net Weight (g) | 240g | 240g |
