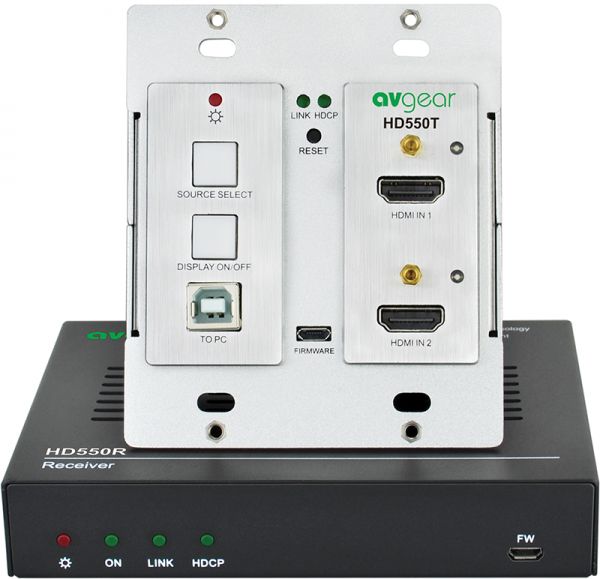

The AVG-HD550 consists of a Wall Plate Transmitter and a receiver which can transmit HDMI(1080P, 4K@60Hz 4:2:0), RS232 and USB signals up to 100m using a single CATx cable. The Wall plate features two HDMI inputs and a USB-B port for HID devices such as a Mouse or keyboard.
Transmitter
| Input | |
| Input | (2) HDMI |
| Input Connector | (2) Female type A HDMI |
| Output | |
| Output | (1) HDBT, (1) TO PC, (1) DC OUT |
| Output Connector | (1) RJ45, (1) Type-B USB; (1) 2-pin Phoneix plug |
| Control | |
| Control Port | (1) FIRMWARE, (1) RS232 |
| Control Connector | (1) Micro-USB, (1) 3-pin Phoneix plug |
| General | |
| Bandwidth | 10.2Gbps |
| HDMI Version | 1.4 |
| HDCP Version | 2.2 |
| Video Resolution | Up to 4K×2K@60Hz 4:2:0 |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080P/4K@60Hz ≤ 100m |
| Power Supply | Powered from the receiver by CATx cable. |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| Dimension (W*H*D) | 89mm x 104.5mm x 44mm |
| Net Weight | 250g |
Receiver
| Input | |
| Input | (1) HDBT, (3) USB |
| Input Connector | (1) RJ45, (3) Type-A USB |
| Output | |
| Output | (1) HDMI |
| Output Connector | (1) Female type A HDMI |
| Control | |
| Control port | (1) FIRMWARE, (1) RS232 |
| Control Connector | (1) Micro-USB, (1) 3-pin Phoenix plug |
| General | |
| Bandwidth | 10.2Gbps |
| HDMI Version | 1.4 |
| HDCP Version | 2.2 |
| Video Resolution | Up to 4K×2K@60Hz 4:2:0 |
| Transmission Mode | HDBaseT |
| Transmission Distance | 1080P/4K@60Hz ≤ 100m |
| AC Adapter Input Power | 100V~240V AC, 50/60Hz |
| Input Power | 24V DC 1.25A |
| Power Consumption | 23W (Maximum with the Transmitter) |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| Dimension (W*H*D) | 136mm x 25.5mm x 95mm |
| Net Weight | 365g |
