AV Gear AVG-MC-4O-SD Modular Output Card

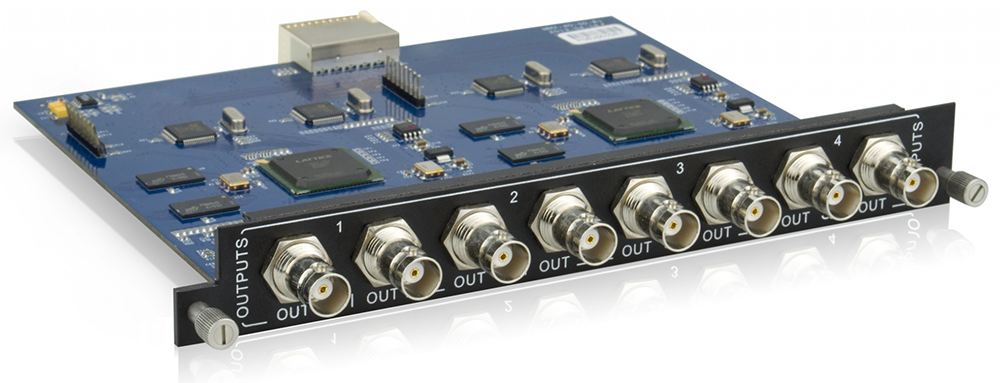

The AVG-MC-4O-SD is an SDI Modular Output card for the DMM1616 Cage.

  • Supports different SDI signal formats including SD/HD/3G-SDI(adaptive)
  • Dual Outputs for each port.
  • Cross Switching from any Input Series Card.

Specifications

Input Output
Input 4 SDI Output 4 SDI
Input Connector Female BNC Output Connector Female BNC
Input Level 0.8Vp-p ± 10% output Level 0.8Vp-p ± 10%
Input Impedance 75Ω Output Impedance 75Ω
General
Gain Unity Maximum Data Rate 2.97 Gbps
Transmission Distance 300M (Max.) Data rate Lock Auto
Input Return Loss <-14 dB @ 1 MHz ~ 1.5 GHz Input Return Loss <-14 dB @ 1 MHz ~ 1.5 GHz
Video Standard SMPTE 292M, SMPTE 259M, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120 Data Type 8bit, 10bit
Audio Bits per Sample 18 bits per channel, 2 channels (L, R)
