Input + Output |
Input Port |
AC1 & AC2 |
Input Voltage |
50~60Hz 100~240VAC 50~60Hz 100~240VAC |
Output Port |
Total 12 DC ports (2 pin Phoenix connector) |
Output Voltage |
5V, 12V and 24V selectable |
Output Voltage Range |
5V: 4.75V – 5.25V |
|
12V: 11.4V – 12.6V |
|
24V: 22.8V – 25.2V |
Maximum output power consumption of signal channel |
5V:12W 12V:15W 24V:15W |
Maximum output power consumption for single supply |
110V:90W 240V:180W |
Maximum output power consumption for dual supply |
180W |
Control |

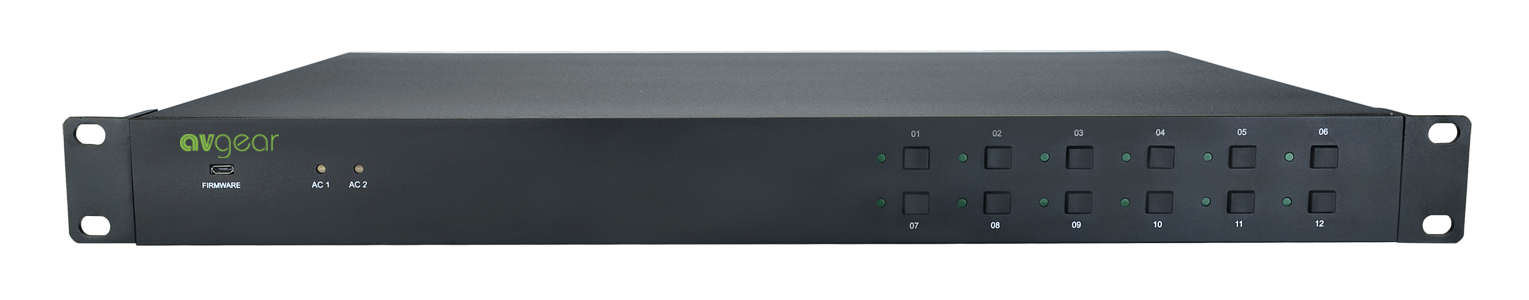

Front panel |
Front Panel: 1-12, total 12 buttons Rear Panel: Total 12 TACT switches, named SELECT. |
RS232 Control |
RS232 port (3 pin Phoenix connection) Supported Baud Rates: 1200, 2400, 4800, 9600(default), 19200, 38400, 57600, 115200 |
GUI Control |
TCP/IP (RJ45) Default IP: 192.168.0.178 Port: 4001 |
General |
Temperature |
0 -50 C |
Humidity |
10%- 90% |
Dimensions (W*H*D) |
437 x 44 x 357mm |
Net Weight |
4.2Kg |
