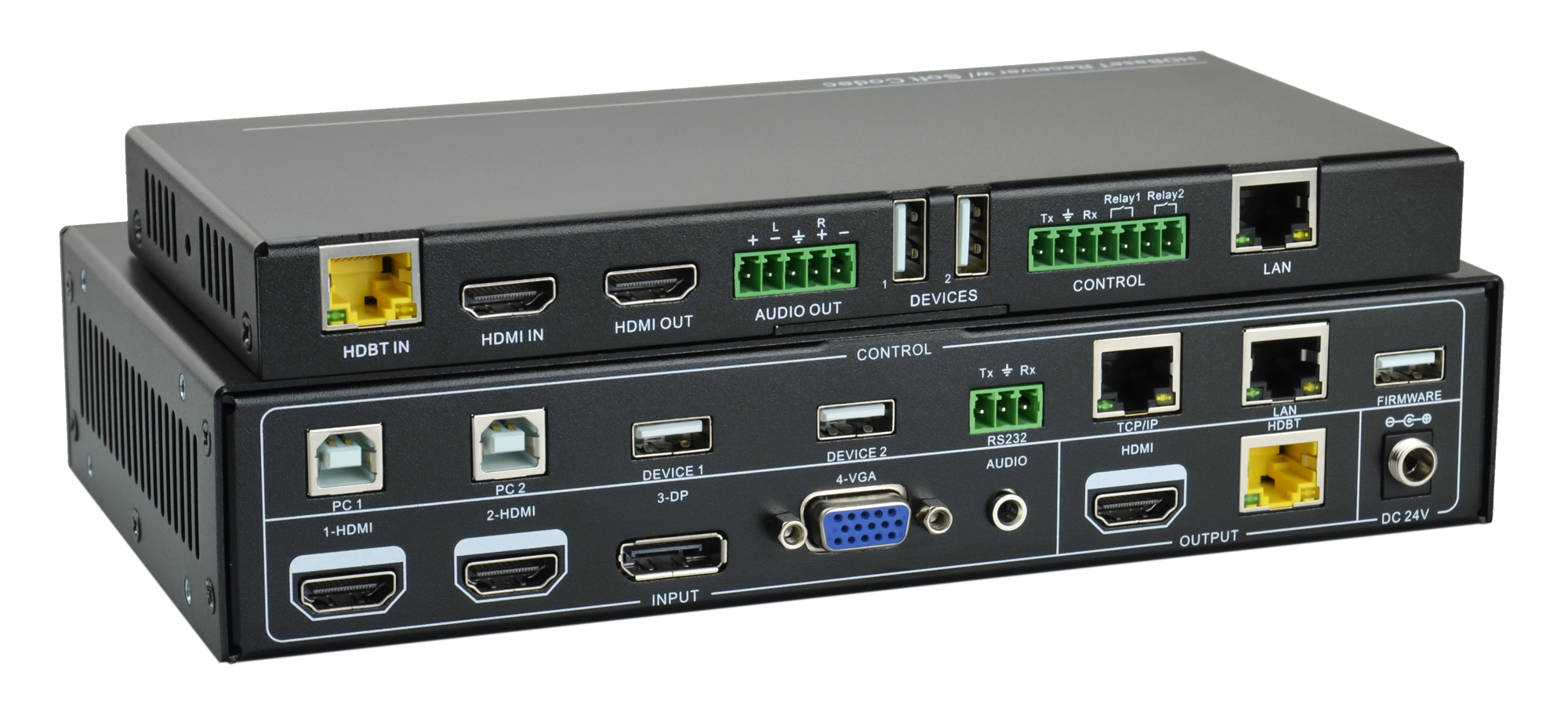

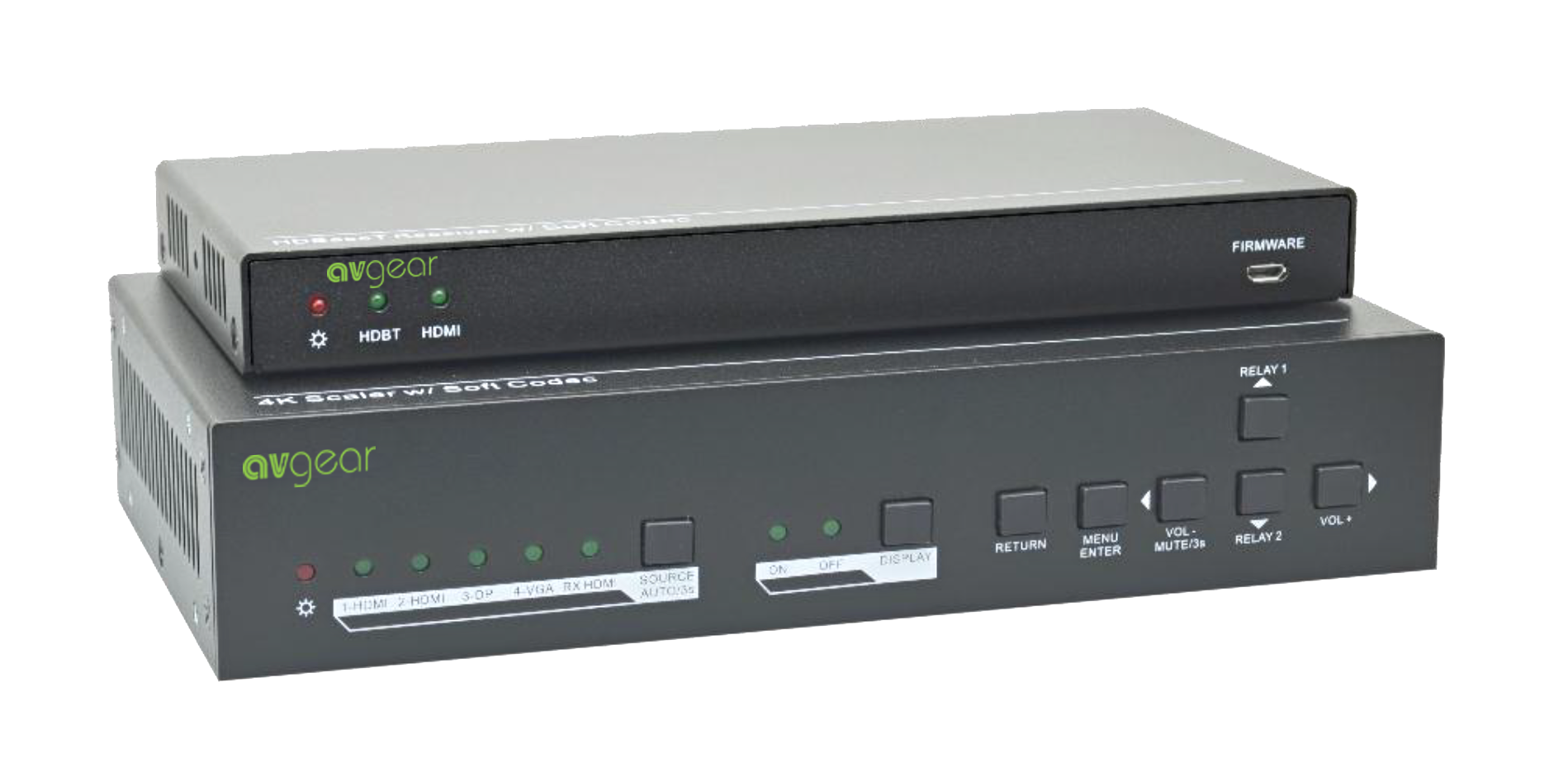

AV Gear AVG-SC41T-CODEC 4K Scaler with Soft Codec
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
AV Gear AVG-SC41T-CODEC
The AVG-SC41T-Codec is a conferencing system codec kit supporting resolutions up to 4K@30Hz 4:4:4 and HDCP2.2. It includes a Transmitter and Receiver, providing AV Switching, de-embedded Audio, System Control commands and USB Extension.
Video, Audio, Control, USB and Ethernet signals can be transmitted over a single CATx cable up to 100m.
Features
- Supports resolution conversion ranging from 720p to 4k x 2k @30Hz 4:4:4.
- Provides a variety of interfaces to simplify device management.
- Supports PCs, USB devices like keyboard, webcam, MIC for conference system.
- Extends the transmission distance of USB signals.
- Two type B USB for connection to host, four type A USB for HID devices like webcam, mic and keyboard.
- Supports video source auto-switching function.
- HDBaseT technology extends Video, Audio, Control and Ethernet up to 100m.
- Ethernet can be used from either the Receiver or Transmitter, providing LAN accessibility for users.
- De-embedded analogue.
- Allows connected displays to be controlled via front panel buttons.
- Ensures EDID communication between sources and display.
- Relay commands can be triggered to control relay devices such as projector screen.
- Local Video Input available on the Receiver for BYOD (sold separately).
Specifications
TRANSMITTER
| Video | |
| Video Input | (2) HDMI; (1) DP; (1) VGA |
| Video Input Connector | (2) Female HDMI; (1) DisplayPort; (1) Female VGA (15-pin) |
| Input Resolution |
HDMI: Up to 4Kx2K@30Hz 4:4:4 DP: Up to 4Kx2K@30Hz 4:4:4 VGA: Up to 1920×1200@50/60Hz |
| Video Output | (1) HDMI; (1) HDBaseT |
| Video Output Connector | (1) Female HDMI; (1) RJ45 |
| Output Resolution | Supports 3840×2160@30Hz, 1920×1080, 1280×720 |
| Standards | Compliant with HDMI 1.4 & HDCP2.2 |
| Audio | |
| Audio Input | (1) AUDIO |
| Audio Input Connector | (1) 3.5mm Stereo jack |
| Audio Input Impedance | >10kΩ |
| Control Part | |
| Control port | (2) PC, (2) DEVICE; (1) RS232; (1) TCP/IP; (1) LAN |
| Control Connector | (2) Type-B USB; (2) Type-A USB; (1)3-pin phoenix connector; (2) RJ45 |
| General | |
| Transmission Distance | Up to 100m |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -10 ~ +55℃ |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 24VDC 2.71A |
| System Power Consumption | 40w (Max) |
| Dimension (W*H*D) | 220mm x 44mm x 120mm |
| Net Weight | 617g |
RECEIVER
| Video | |
| Video Input | (1) HDBT; (1) HDMI |
| Video Input Connector | (1) RJ45; (1) Female HDMI |
| Input Resolution |
HDBT: Up to 4Kx2K@30Hz 4:4:4 HDMI: Up to 4Kx2K@30Hz 4:4:4 |
| Video Output | (1) HDMI |
| Video Output Connector | (1) Female HDMI |
| Output Resolution | Supports 3840×2160@30Hz, 1920×1080, 1280×720 |
| Standards | Compliant with HDMI 1.4 & HDCP2.2 |
| Audio | |
| Audio Output | (1) Stereo balanced L/R audio |
| Audio Output Connector | (1) 5-pin phoenix connector |
| Audio Output Impedance | 70Ω |
| Frequency Response | 20Hz~20K Hz |
| Stereo Channel Separation | >80dB @1KHz |
| Control Part | |
| Control port | (2) DEVICE; (1) RS232; (2) RELAY; (1) LAN |
| Control Connector |
(2) Type-A USB; (1) 3-pin phoenix connector; (2) 2-pin phoenix connector; (1) RJ45 |
| General | |
| Transmission Distance | Up to100m |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -10 ~ +55℃ |
| Relative Humidity | 10% ~ 90% |
| External Power Supply | Powered by Transmitter |
| System Power Consumption | 40w (Max) |
| Dimension (W*H*D) | 205mm x 21.5mm x 95mm |
| Net Weight | 358g |
