| Video | |
| Video Input | (1) HDMI/MHL, (3) HDMI, (1) USB-C |
| Video Input Connector | (3) Type-A female HDMI, (1) Type-C USB |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| MHL Input Resolution | Up to 1080P@60Hz |
| USB-C Input Resolution | Up to 4Kx2K@30Hz 4:4:4 8bit |
| Video Output | (2) HDMI |
| Video Output Connector | (2) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Version | 2.0 |
| HDCP Version | 2.2 |
| MHL Version | 2.2 |
| HDR | Supported |
| CEC | Supported |
| HPD | Supported |
| Audio Input | |
| Input | (1) MIC, (1) LINE |
| Input Connector | (2) 3-pin terminal blocks |
| HDMI Input Audio Format | PCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through |
| LINE/MIC Input Audio Format | PCM |
| Audio Input Impedance | >10KΩ |
| Audio Output | |
| Output | (1) L/R balanced analog audio |
| Output Connector | (1) 5-pin terminal block |
| Output Analog Audio Format | PCM |
| HDMI Output Audio Format | Bypass Mode: PCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through.Mix mode: PCM 7.1 audio. |
| Max Output Level | < 0.1% (-80 dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0 dBFS level (or max level) |
| THD+N | <0.1% (-80 dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0 dBFS level (or max level) |
| SNR | >80dB |
| Crosstalk Isolation | >75dB, 10KHz sine at 0 dBFS level (or max level before clipping) |
| L-R Level Deviation | < 0.5dB, 1KHz sine at 0 dBFS level (or max level before clipping) |
| Frequency Response Deviation | <± 0.5 dB, 20Hz ~ 20KHz |
| Output Load Capability | 1KΩ and higher (supports 10x paralleled 10KΩ loads) |
| Control | |

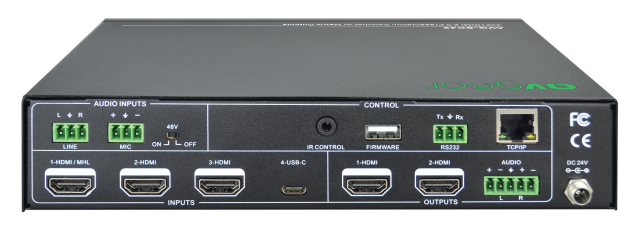

| Control Port | (1) IR CONTROL, (1) FIRWARE, (1) RS232,(1) TCP/IP |
| Control Connector | (1) 3.5mm mini jacks, (1) Type-A USB,(1) 3-pin terminal block, (1) RJ45 |
| General | |
| Bandwidth | 18Gbps |
| Operation Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Relative Humility | 10%-90% |
| External Power Supply | Input: AC 100~240V, 50/60Hz,Output: 24V DC 2.71A |
| Power Consumption | 27W (Max) |
| Dimension (W*H*D) | 220mm x 44mm x 172.5mm |
| Net Weight | 735g |
AV Gear AVG-SC42T Seamless Switcher 4×2 with USB-C
$1,150.00
In stock
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
AV Gear AVG-SC42T

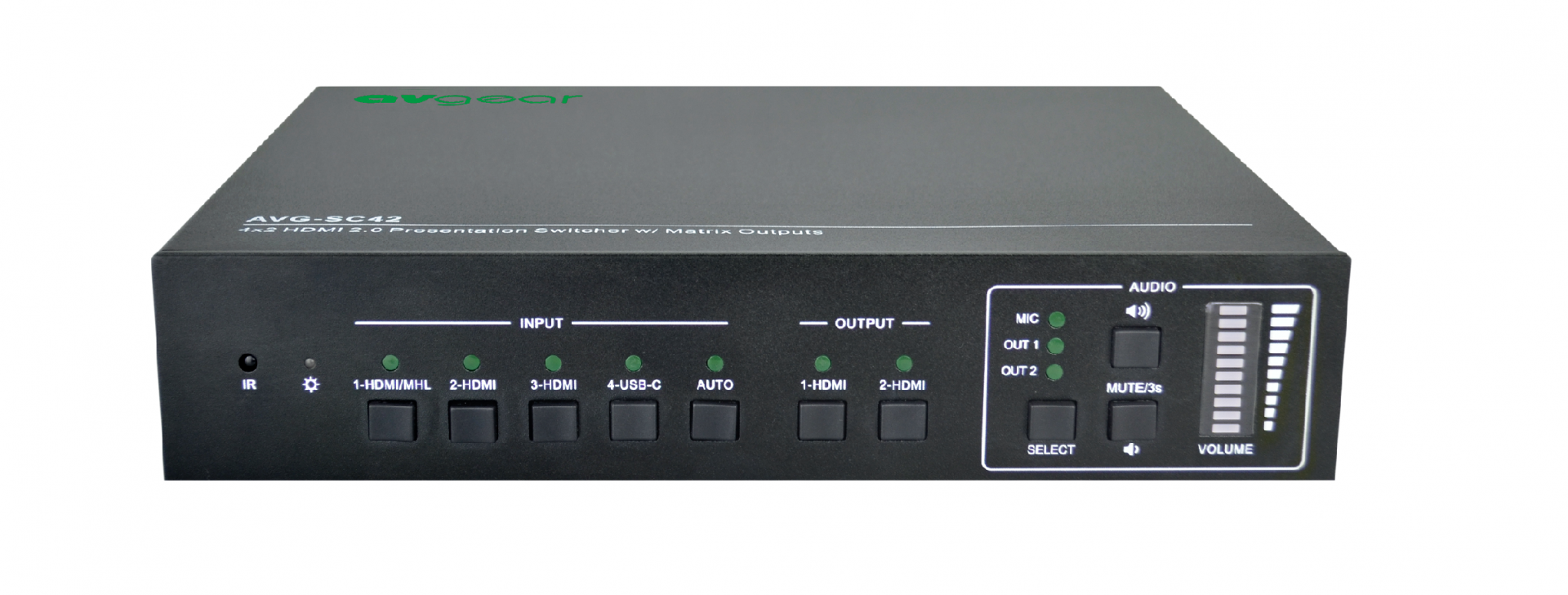

The AVG-SC42T is a professional 4×2 HDMI 2.0 presentation switcher. It is designed to switch HDMI or USB-C video signals to the HDMI outputs. With multiple built in EDID settings, including an EDID pass-through option, the highest quality digital video signal will be routed directly to the display.
The AVG-SC42T supports stereo and multi-channel audio on the HDMI or USB-C inputs. It also features de-embedded analogue audio.
Features
- Automatic Switching
- HDMI Video resolution up to 4Kx2K@60Hz 4:4:4, and USB-C resolutions up to 4Kx2K@30Hz 4:4:4
- HDMI 2.0 and HDCP 2.2 compliant.
- MIC and LINE inputs can be mixed to the audio outputs.
- Supports 3 microphone types, Condenser, Dynamic and Wireless.
- Smart EDID management: Pre-set EDIDs and customised setting allowed.
- Control from the Front Panel, IR Remote and the GUI.
- Firmware can be updated.
Specifications
AV Gear AVG-SC42T Seamless Switcher 4×2 with USB-C
