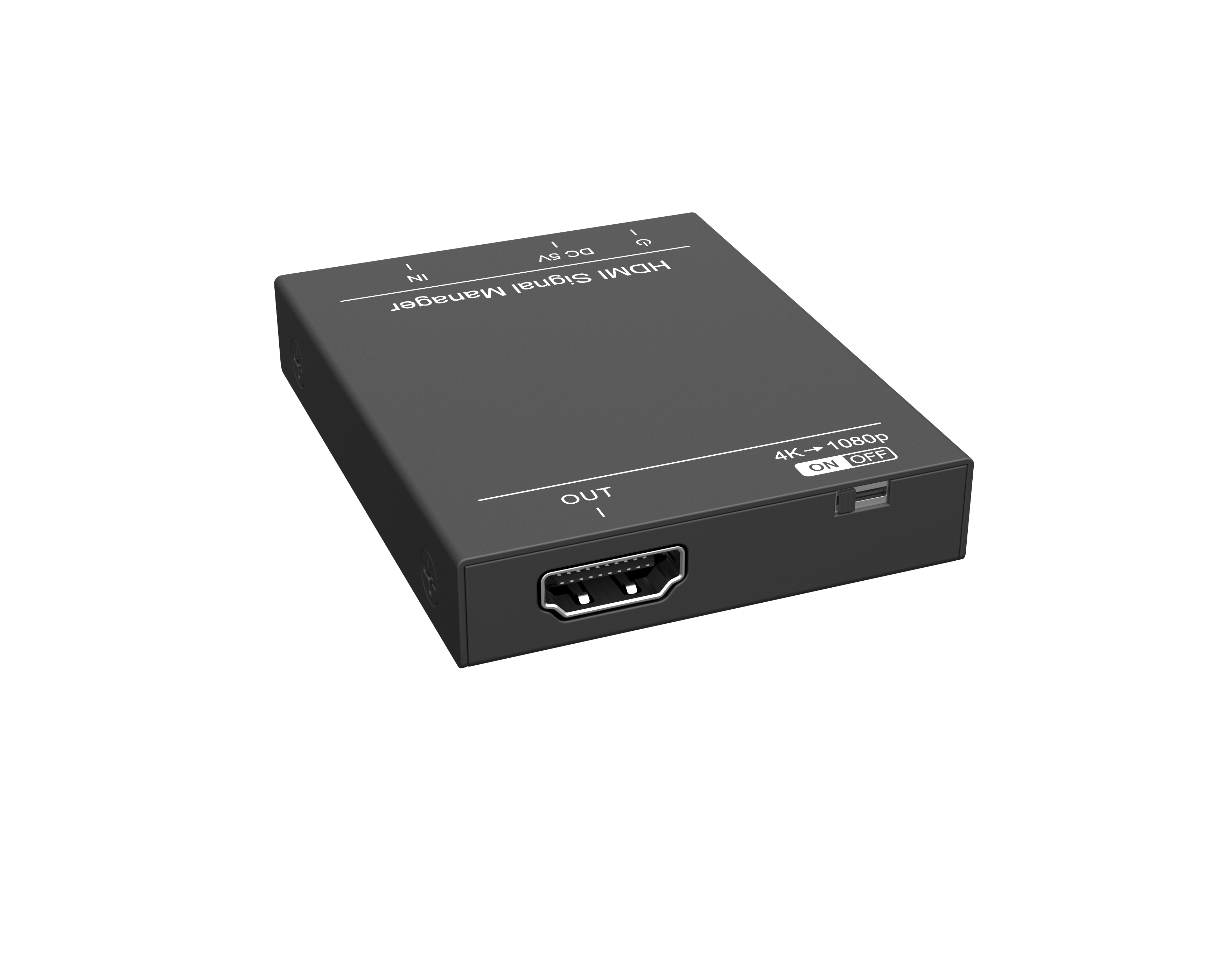

The AVG-SM-2.0 is an ultra-thin HDMI signal manager supporting HDMI V2.0. It is designed to enhance the compatibility between HDMI sources and displays. The transmission of 4k×2k@60Hz (max) signal from source to display is up to 10m. In addition, it supports 4K downscaling to 1080p output, and HDCP follows the display device to ensure device compatibility.
|
Input & Output |
|
|
Input |
(1) HDMI |
|
Input Connector |
(1) 19-pin type-A female HDMI |
|
Output |
(1) HDMI |
|
Output Connector |
(1) 19-pin type-A female HDMI |
|
General |
|
|
Transmission Distance |
Input≤5m; Output≤5m |
|
HDCP Standard |
Input supports HDCP2.3 |
|
EDID Management |
EDID pass-through |
|
Bandwidth |
18Gbps |
|
Work Temperature |
-10~55℃ |
|
Relative Humility |
10%-90% |
|
Dimensions (W*H*D) |
55mm x 12.5mm x 70mm |
