AV Gear AVG-UDA2-V2
- HDMI 2.0 1×2 Splitter with 4K to 1080P Downscaling

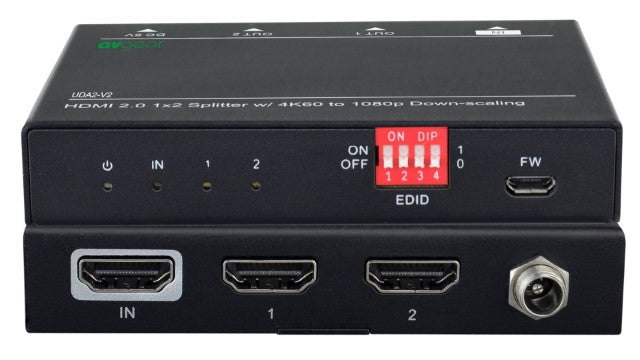

The UDA2-V2 HDMI 2.0 1×2 Splitter distributes one HDMI input to two HDMI outputs. The splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings which can be selected by the 4-pin DIP switch on the front panel.
Features
- Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
- HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP Passive mode.
- Supports video resolution down-scaling, the 4K input can be automatically downscaled to 1080P output for compatibility with 1080P display.
- 18Gbps high bandwidth.
- Advanced EDID management: multiple built-in EDID settings can be selected.
- Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
- Supports CEC pass-through.
- Provides LEDs to indicate the current operating status.
- Firmware upgrade by Micro-USB port.
Specifications
Video Input |
Input |
(1) HDMI |
Input Connector |
(1) Type-A female HDMI |
HDMI Input Resolution |
Up to 4Kx2K@60Hz 4:4:4 8bit |
HDMI Standard |
2.0 |
HDCP Version |
2.2, 1.4 compliant |
CEC |
Supported |
Video Output |
Output |
(2) HDMI |
Output Connector |
(2) Type-A female HDMI |
HDMI Output Resolution |
Up to 4Kx2K@60Hz 4:4:4 8bit |
HDMI Standard |
2.0 |
HDCP Version |
2.2, 1.4 compliant |
CEC |
Supported |
Control |
Control Part |
(1) EDID 4-pin DIP switch, (1) Micro-USB port |
General |
Bandwidth |
18Gbps |
HDMI 2.0 Cable Length |
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
|
Operation Temperature |
-10℃ ~ +55℃ |
Storage Temperature |
-25℃ ~ +70℃ |
Relative Humility |
10%-90% |
Power Supply |
Input:100V~240V AC; Output: 5V DC 1A |
Power Consumption |
1.5W (Max) |
Dimension (W*H*D) |
96.0mm x 17.6mm x 70.4mm |
Net Weight |
185g |
