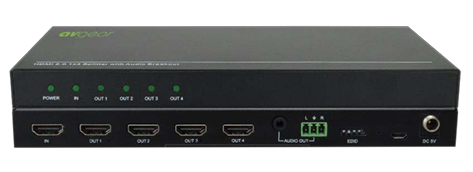

AV Gear AVG-UDA4-DA
- Distribution Amplifier 4K HDMI 1×4 with Audio Breakout
The AVG-UDA4 DA is a 4K HDMI splitter with the ability to transmit an HDMI or DVI source to four displays simultaneously. Compliant with HDMI2.0 & HDCP2.2, the AVG-UDA4 DA provides comprehensive resolution capabilities up to 4K, 1080p & 3D. It will also de-embed digital stereo audio to two analogue audio outputs.
Features
- Four simultaneous HDMI outputs
- Supports resolution up to 4Kx2K@60Hz 4:4:4
- Fully compliant with HDMI2.0 & HDCP2.2.
- Transmits 4Kx2K HDMI up to 10m
- 3.5mm mini jack and a 3-pin Phoenix plug for audio de embedding.
- Features smart EDID management. Multiple pre-sets and customised settings allowed.
- Supports two-way CEC control.
Specifications
Video Input |
Input |
(1) HDMI |
Input Connector |
(1) Female type A HDMI |
HDMI Input Resolution |
Up to 4Kx2K@60Hz 4:4:4 |
HDMI Standard |
2.0 |
HDCP Version |
2.2 |
Video Output |
Output |
(4) HDMI |
Output Connector |
(4) Female type A HDMI |
HDMI Output Resolution |
Up to 4Kx2K@60Hz 4:4:4 |
HDMI Standard |
2.0 |
Audio |
Output |
(2) Audio outputs |
Output Connector |
(1) 3.5mm mini stereo audio jack
(1) 3-pin Phoenix connector
|
Audio Format |
PCM |
Audio Output Impedance |
70 Ohms |
Frequency Response |
20Hz to 20kHz, ±3dB |
General |
Bandwidth |
18Gbps |
Operation Temperature |
-10 ~ +55℃ |
Storage Temperature |
-25~ +70℃ |
Relative Humility |
10%-90% |
Power Supply |
Input:100V~240V AC; Output: 5V DC 2A |
Power Consumption |
7W(Max) |
Dimension (W*H*D) |
216mm x 20mm x 100mm |
Net Weight |
280g |
