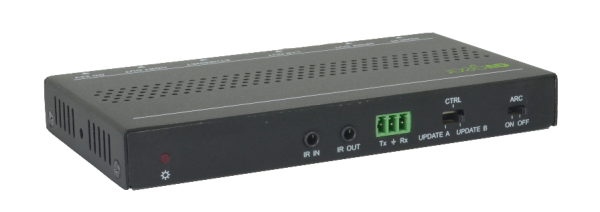

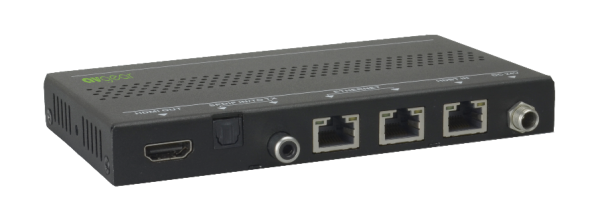

The AVG-HD600 is an ultra thin HDMI2.0 transceiver set which contains a transmitter and a receiver.
It can extend 3840×2160@60Hz 4:4:4 (max) HDMI signals up to 100m via Cat5e/6 cable. It also features a inbuilt Ethernet switch to extend your LAN throughout the project.
remotely.
| Model Spec |
Transmitter |
Receiver |
| Audio& Video | ||
| Input | (1) HDMI | (1) HDBT; (1) SPDIF |
| Input Connector | (1) 19-pin Type-A male | (1) RJ45; (1) Toslink/Coax |
| Output | (1) HDBT; (1) L+R ; (1) SPDIF | (1) HDMI |
| Output Connector | (1) RJ45; (1) L&R (RCA); (1) Toslink | (1) 19-pin Type-A male |
| Control Parts | ||
| Control | (1) IR IN; (1) IR OUT; (1) RS232; (1) Ethernet | (1) IR IN; (1) IR OUT; (1) RS232; (2) Ethernet |
| Control Connector | (2) 3.5mm mini jack; (1) 3-Pin phoenix connector; (1) RJ45 | (2) 3.5mm mini jack; (1) 3-Pin phoenix connector; (2) RJ45 |
| General | ||
| Transmission Mode & Distance | HDBaseT; 4Kx2K@60Hz 4:4:4 ≤ 100m | |
| Resolution | Up to 3840×2160@60Hz 4:4:4. | |
| Signal Standard | HDMI2.0 & HDCP2.2. | |
| Temperature | -10 ~ 55℃. | |
| Reference Humidity | 10% ~ 90%. | |
| Power Supply | Input: 100V~240V AC; Output: 24VDC, 1.25A. | |
| Power Consumption | 19W (Max.) | |
| Dimension(W*H*D) | 152mm x 19mm x84mm | 152mm x 19mm x84mm |
| Net Weight | 227g | 232g |
| HDCP Version | 2.2, 1.4 compliant. Pass-through | |
| CEC | Pass-through | |
| EDID | Pass-through | |
| Bidirectional PoH | Supported | |
| Transmission Standard | HDBaseT | |
| Transmission Distance | 4K@60Hz 4:4:4 ≤ 40 meters (131 feet), 1080p@60Hz ≤ 70 meters (230 feet) | (1) ARC Mode button, (1) FW, (1) IR In, (1) IR Out, (1) RS232 |
| Operation Temperature | -5~ +55℃ | (1) Micro-USB port, (2) 3.5mm jacks, (1) 3-pin terminal block |
| Storage Temperature | -25 ~ +70℃ | |
| Relative Humidity | 10%-90% | |
| Power Supply | Input:100V~240V AC; Output: 24V DC 1.25A | |
| Power Consumption | 15W (Max) | |
| Dimension (W*H*D) | TX/RX: 110mm x 20mm x 145mm | |
| Net weight | TX/RX: 380g | |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080P ≤ 20m | |
| Transmission Standard | HDBaseT | |
| Transmission Distance | 1080P@60Hz ≤ 229 feet (70 meters), 4K@60Hz ≤ 131 feet (40 meters) | |
| Operation Temperature | -5~ +55℃ | |
| Storage Temperature | -25 ~ +70℃ | |
| Relative Humility | 10%-90% | |
| Power Supply | Input:100V~240V AC; Output:24V DC 1.25A | |
| Power Consumption | 12W (Max) | |
| Dimension (W*H*D) | TX/RX: 140mm x 19.5mm x 84mm | |
| Net Weight | TX:275g, RX:290g | |
