AV Gear AVG-HD70L HDMI 2.0 Extender set with Loop out

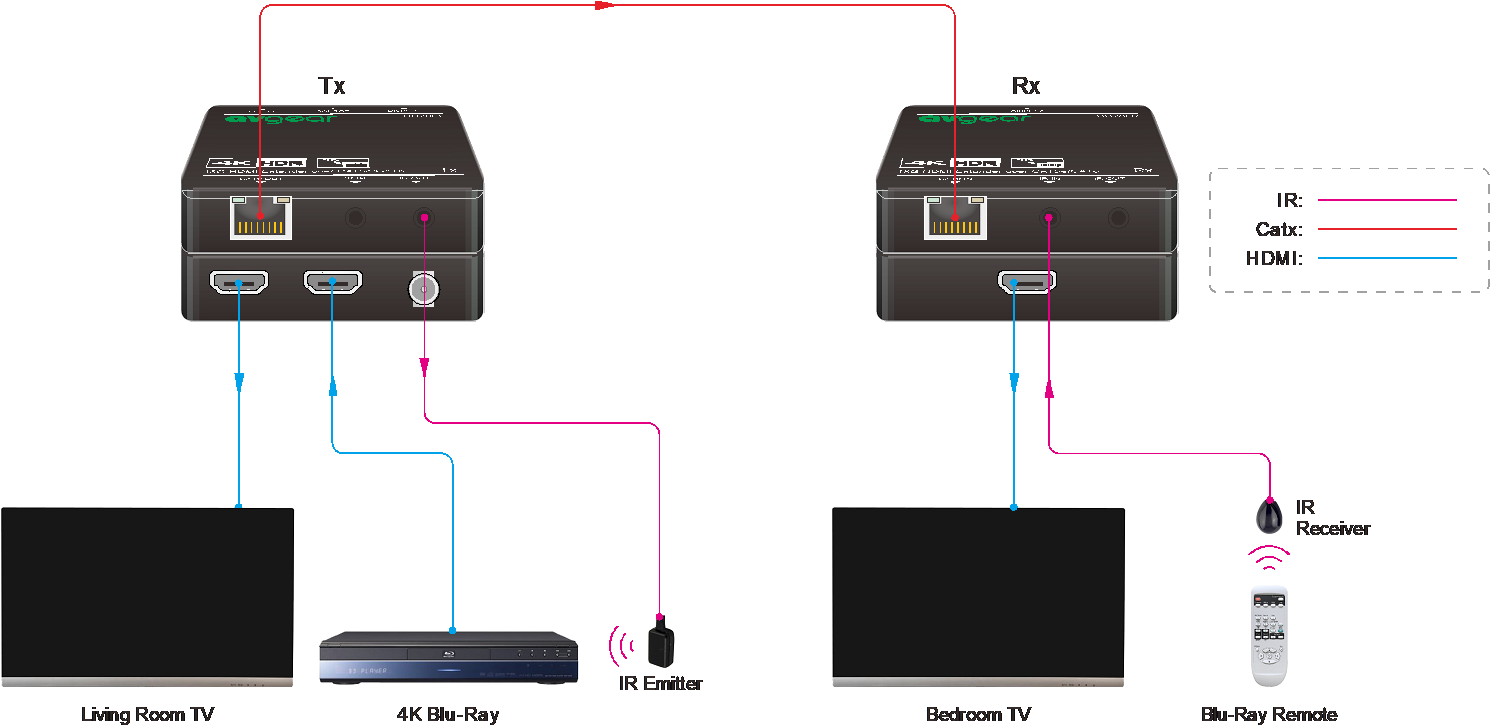

The HD70L is a cost-effective point-to-point extender set for HDMI 2.0 and IR signals; this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps, HDCP 2.2 compliant.
Features
- Supports HDMI 2.0, up to 4K@60Hz 4:4:4, HDR 10, 18G, HDCP 2.2.
- Extends 4K or 1080p HDMI signal up to 70 meters over a single CAT5e/6 cable.
- HDMI loop out on transmitter.
- Bi-directional IR pass-through.
- Supports video resolution down-scaling, the 4K input can be automatically degraded to 1080p output on receiver for compatibility with legacy 1080p display device.
- Features visually lossless compression with no latency.
- EDID pass-through.
- Compact design, easy to install and simple to operate.
Specifications

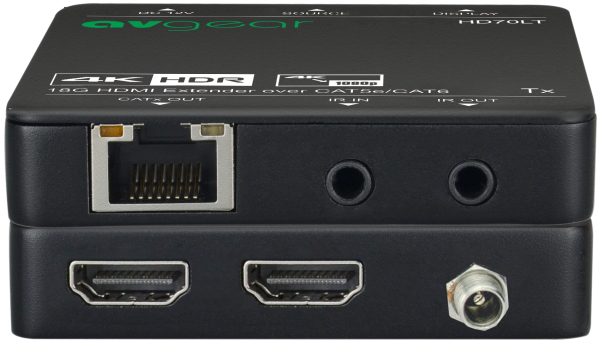

Transmitter | |
Input | (1) SOURCE |
Input Connector | (1) 19-pin type-A female HDMI |
Output | (1) DISPLAY, (1) CATx OUT |
Output Connector | (1) 19-pin type-A female HDMI, (1) RJ45 |
Control | (1) IR IN, (1) IR OUT |
Control Connector | (2) 3.5mm mini jacks |

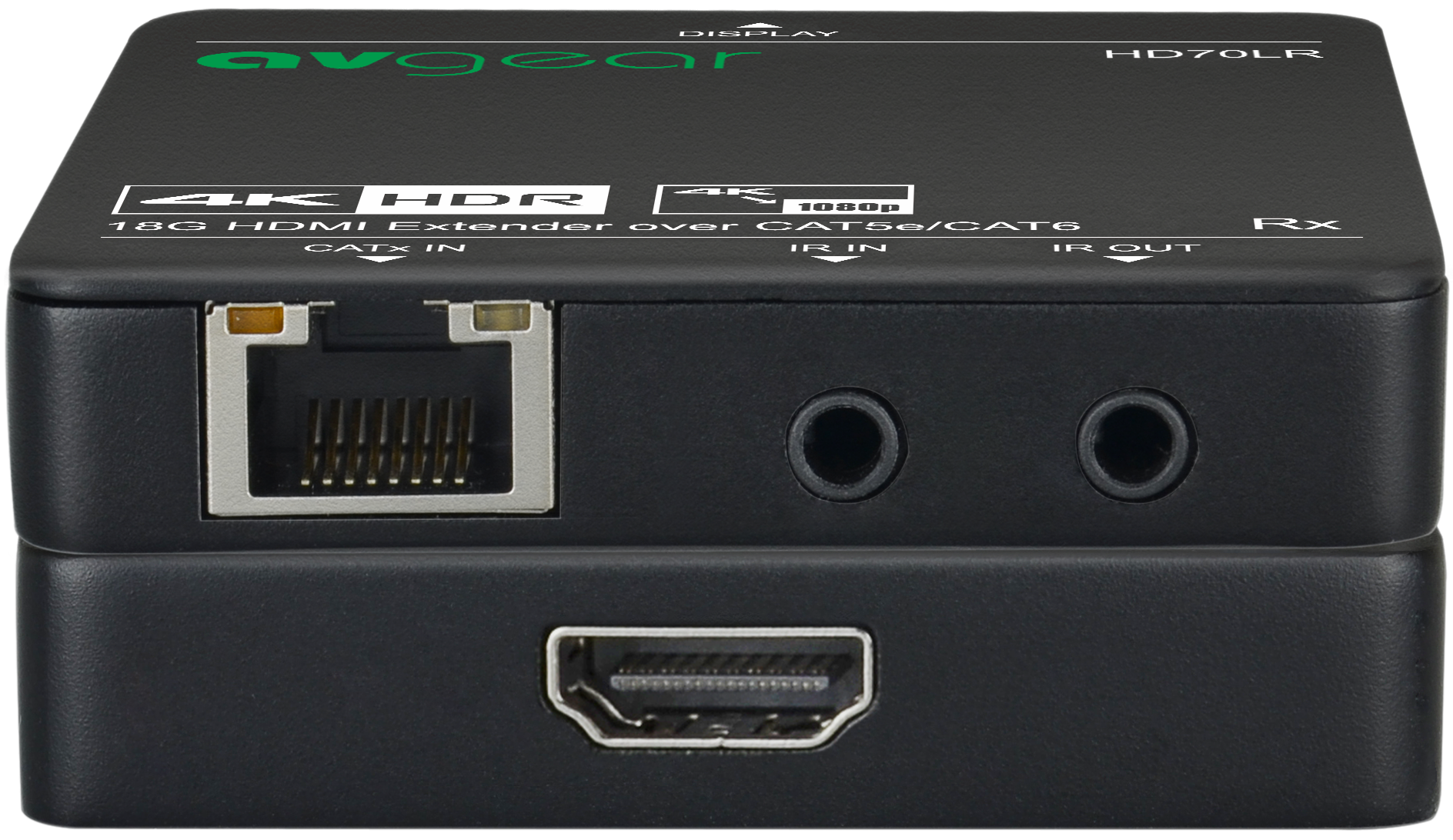

Receiver | |
Input | (1) CATx IN |
Input Connector | (1) RJ45 |
Output | (1) DISPLAY |
Output Connector | (1) 19-pin type-A female HDMI |
Control | (1) IR IN, (1) IR OUT |
Control Connector | (2) 3.5mm mini jacks |
General | |
Video Resolution | Up to 4K@60Hz 4:4:4, HDR 10 |
HDMI Audio Format | Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch. |
Transmission Distance | 4K/1080p ≤ 70 meters |
HDMI Version | HDMI V2.0 |
HDCP Version | HDCP 2.2 compliant. (The HDCP of output follows the HDCP version of display device.) |
EDID | Supports EDID Pass-through |
Power Supply | Input: 100VAC~240VAC, 50/60Hz;Output: 12VDC 1A |
Power Consumption | 4W (Max) |
Operation Temperature | -5~55℃ |
Storage Temperature | -25~70℃ |
Relative Humidity | 10%-90% |
Dimensions (W*H*D) | 80mm x 16.8mm x 80mm |
Net Weight | Tx/Rx: 70g |
