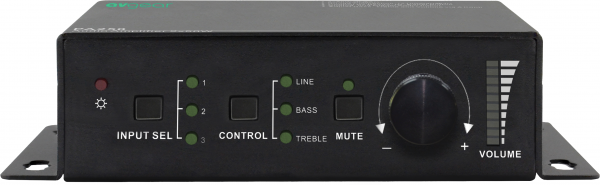

The AVG-MA2’s reliable performance in a control and transmission environment makes the AVG-MA2 ideal for the IT computer realm, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc.
| Input | Output | ||
| Input Signal | 1x L+R stereo audio 1x 3.5mm analog audio 1x Optical Fiber audio |
Output Signal | 1x LOOP 2x Stereo audio/ 1 Mono audio |
| Connectors | 2x RCA 1x 3.5mm TRS plug 1x SPDIF |
Connectors | 1x 3.5mm jack 1x 4-pin 5.08mm connector |
| Input impedance | >10KΩ | Damping coefficient | >100 |
| Control | |||
| Control Ports | 1x RS232 (3-pin pluggable terminal block) 1x IR IN (3.5mm female) 1x TCP/IP (RJ45 female, optional) |
||
| Panel Control | Front panel buttons & rear panel switcher | ||
| General | |||
| SNR | 80dB | THD+ Noise | 1%@1KHz 50W |
| Separation | 75dB 20Hz～20KHz | Damping coefficient | 100 |
| Voltage Gain | 32dB | Output Power | 1×100W@4Ω/2×50W@8Ω |
| Power Supply | DC 33V 4A | Power Consumption | 1.48W |
| Work Temperature | 0~50℃ | Reference Humility | 10%～90% |
| Dimensions (W*H*D) | 148 x44 x165 mm | Weight | 0.72kg |
