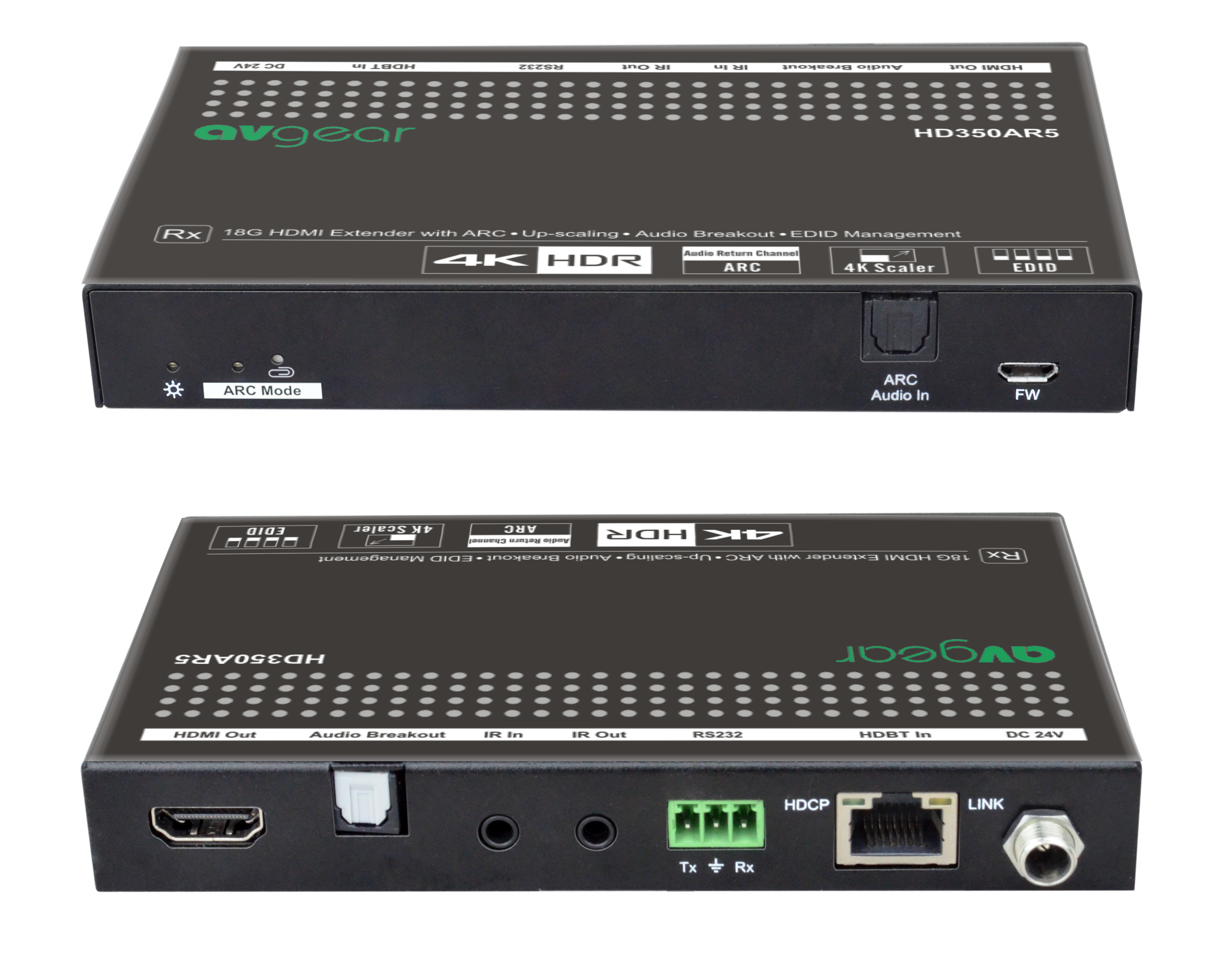

Video
|
Input
|
(1) HDBT
|
Input Connector
|
(1) RJ45
|
Input Resolution
|
Up to 4Kx2K@60Hz 4:2:0
|
Output
|
(1) HDMI
|
Output Connector
|
(1) Type-A female HDMI
|
Output Resolution
|
Up to 4Kx2K@60Hz 4:4:4 8bit HDR10
|
Audio
|
Input
|
(1) ARC Audio In
|
Input Connector
|
(1) Toslink Connector
|
Output
|
(1) Audio Breakout
|
Output Connector
|
(1) Toslink connector
|
Audio Format
|
Supports PCM, Dolby Digital, Dolby True-HD, DTS and DTS-HD.
|
Frequency Response
|
20Hz – 20KHz, ±3dB
|
Max Output Level
|
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal
|
THD+N
|
< 0.05% (-80dB), 20Hz – 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level)
|
SNR
|
> 85dB, 20Hz-20 kHz bandwidth
|
Crosstalk Isolation
|
> 70dB, 10KHz sine at 0dBFS level (or max level before clipping)
|
L-R Level Deviation
|
< 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
|
Frequency Response Deviation
|
< ± 0.5dB 20Hz – 20KHz
|
Output Load Capability
|
1KΩ and higher (Supports 10x paralleled 10KΩ loads)
|
Stereo Channel Separation
|
>70dB@1KHz
|
Control
|
Control Part
|
(1) ARC Mode button, (1) FW, (1) 12V IR In, (1) 12V IR Out,
(1) RS232
|
Control Connector
|
(1) Micro-USB port, (2) 3.5mm jacks,
(1) 3-pin terminal block
|
General
|
Bandwidth
|
18Gbps
|
HDMI Standard
|
2.0
|
HDCP Version
|
2.2, 1.4 compliant
|
CEC
|
Pass-through
|
Bidirectional PoC
|
Supported
|
HDMI 2.0 Cable Length
|
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
|
Transmission Standard
|
HDBaseT
|
Transmission Distance
|
1080P@60Hz ≤ 230 feet (70 meters),
4K@60Hz ≤ 131 feet (40 meters)
|
Operation Temperature
|
-5~ +55℃
|
Storage Temperature
|
-25 ~ +70℃
|
Relative Humidity
|
10%-90%
|
Power Supply
|
Input:100V~240V AC; Output:24V DC 1.25A
|
Power Consumption
|
12W (Max)
|
Dimension (W*H*D)
|
40mm x 19.5mm x 84mm
|
Net Weight
|
290g
|
