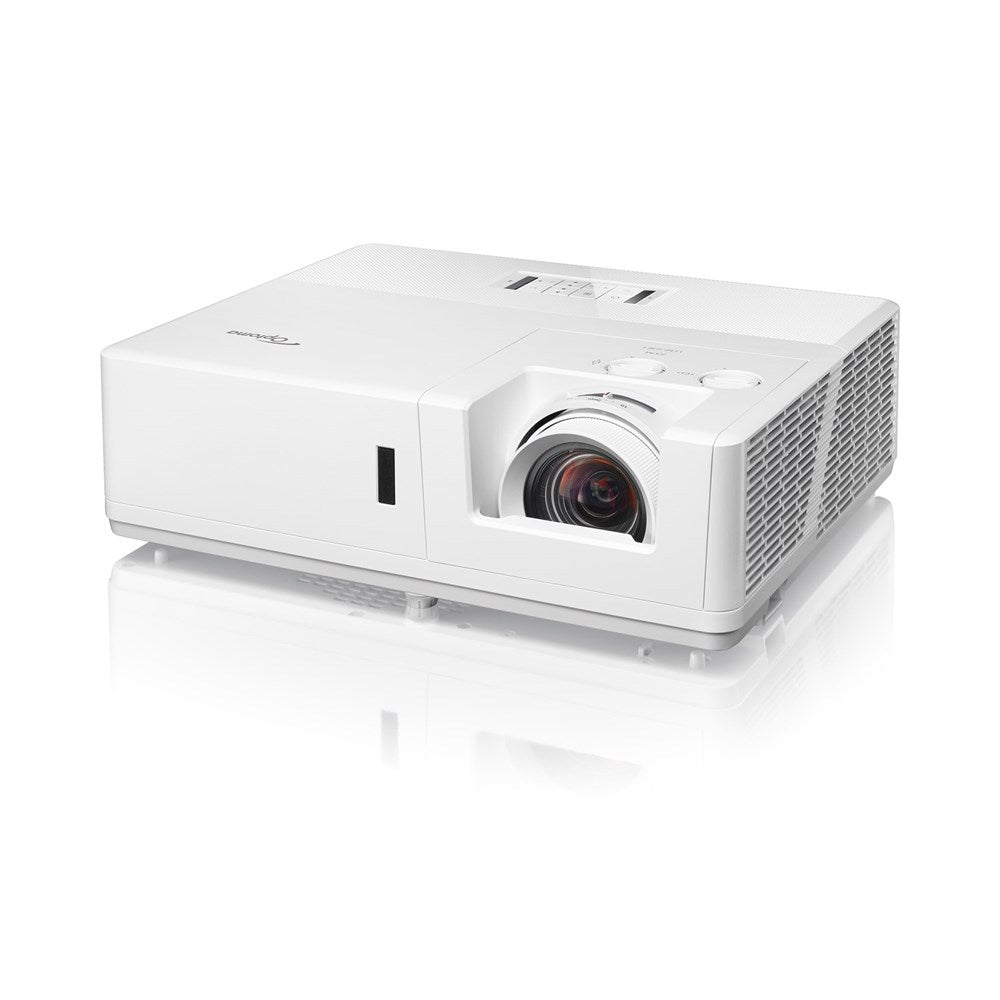

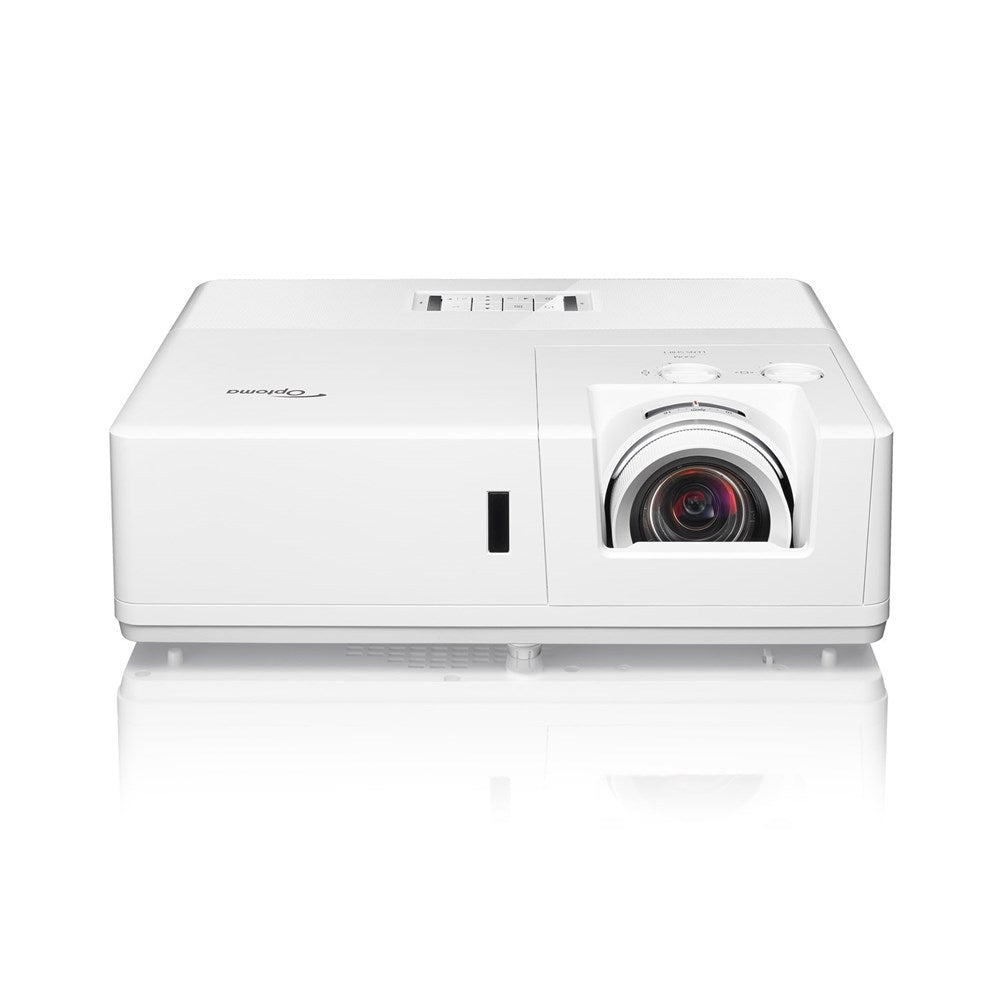

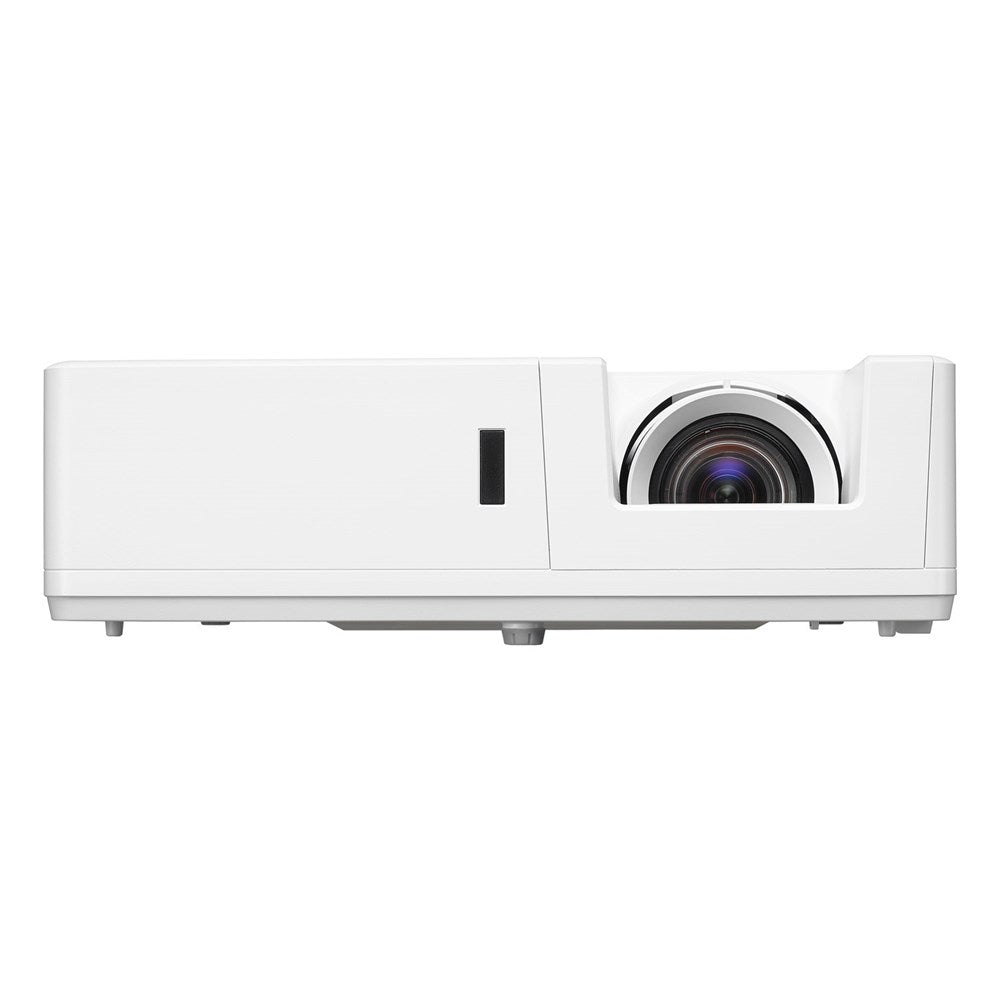

Optoma AZU717T Laser WUXGA 1920x1200 normal throw 1.2-1.92:1 7000lm 16:10

Introducing the AZU717T. At 7,000 lumens, with 4K and HDR compatability, the AZU717T features a dust resistant IP6X certified optical engine for 24/7 operational capabilities and low maintenance. The AZU717T projector features an extremely long-life laser technology, manual horizontal & vertical lens shift and built-in 15W speakers. Suitable for a wide variety of applications, this projector is perfect for anywhere that requires a clean bright image including large venues, classrooms/lecture theatre's, museums, houses of worship, digital signage or immersive installations. The added control flexibility of HDBaseT 3.0 and LAN make this projctor an affordable set and forget solution.

Features:

• Bright WUXGA laser projector - 7000 lumens
• 30,000 hours maintenance-free laser light source at full brightness
• HDBaseT 3.0 Connectivity
• 4K, HDR & HLG Compatibility

DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.

Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible
Allows for easy installation with Extron control systems

Full lens shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for uneven walls or where projector placement is awkward and needs to be installed at an angle.

Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, ideal for use in rooms with a “master” power switch.

Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.

Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions. *24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.*

Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

Superior contrast
Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

USB-Power
Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.

IP6X Airtight optical engine
Independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.

Integrated speaker
Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

HDBaseT™ 3.0
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT6 type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.In addition ,HDBaseT 3.0 can support Uncompressed HDMI 2.0 4K@60 4:4:4.

Specification
Display/image

• Display technology - DLP
• Resolution - WUXGA (1920x1200)
• Brightness - 7,000 lumens
• Contrast ratio - 300,000:1
• Native aspect ratio - 16:10
• Aspect ratio - compatible - 4:3,16:9,16:10
• Keystone correction - horizontal - +-30°
• Keystone correction - vertical - +-30°
• Displayable colours (millions) - 1073.4
• Horizontal scan rate - 5k~140kHzKhz
• Vertical scan rate - 24~120HzHz
• Uniformity - 85%
• Screen size - 0.8m ~ 7.67m (31.5" ~ 301.8") diagonal

Lamp info

• Light source type - Laser
• LASER life - 30,000 hours

Optical

• Throw ratio - 1.2:1 ~ 1.92:1
• Projection distance - 1.3m - 7.8m
• Zoom - 1.6
• Zoom type - Manual
• Focal length - 17.63 ~ 27.9
• Lens shift - Vertical -100 ~ 120%, Horizontal: +/-10%
• Native offset - 120%
• Lens shift - Yes - see product downloads for more information

Connectivity

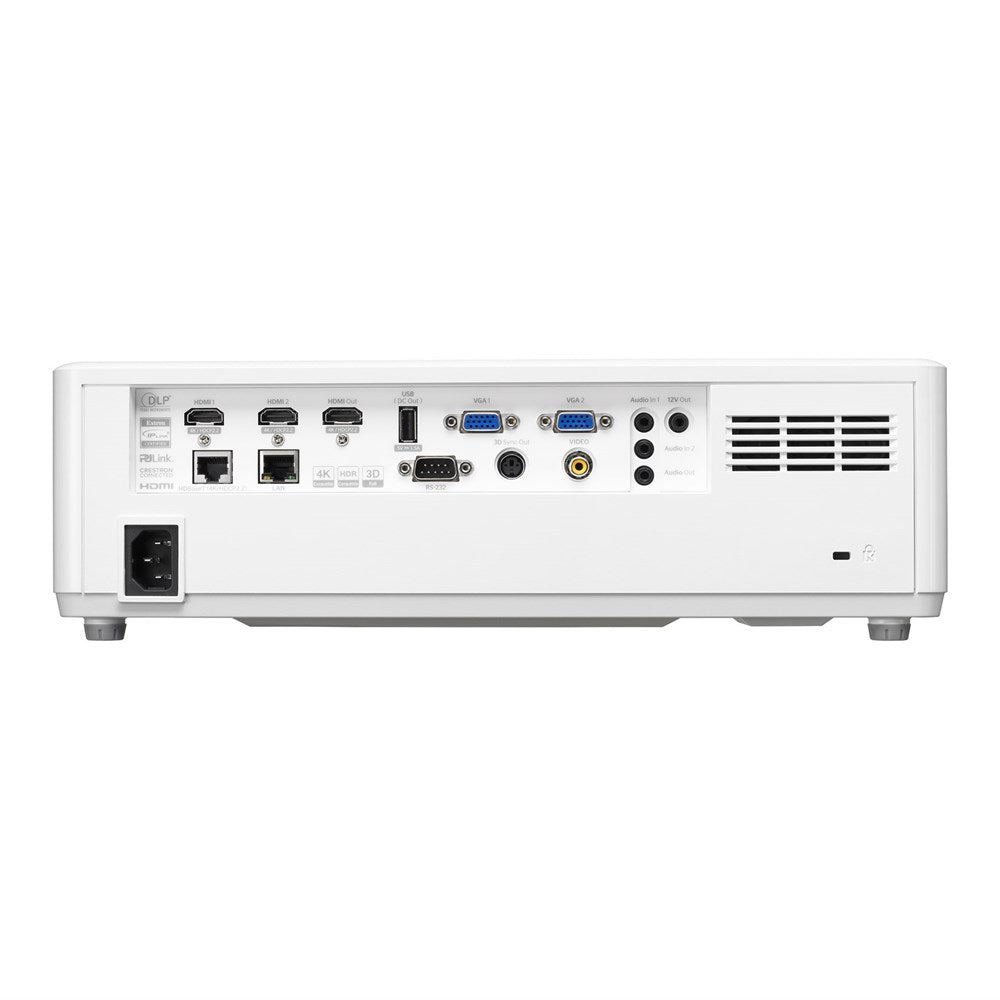

• Connections - Inputs 2 x HDMI 2.0, 2 x VGA, 1 x Composite video, 2 x Audio 3.5mm, 1 x USB-A power 1.5AOutputs 1 x HDMI 2.0, 1 x Audio 3.5mm, 1 x 3D sync, 1 x 12V triggerControl 1 x HDBaseT 4K, 1 x RJ45, 1 x RS232
• LAN - wireless networking - No

General

Networking

• LAN - control - Yes
• LAN - wireless networking - No
• LAN - Yes

Power

• Power supply - Universal AC 100--240V± 10%~ 50 / 60 Hz with PFC input
• Power consumption (standby)
• Power consumption (min) - 300W
• Power consumption (max) - 366W

Weight and dimensions

• Dimensions (W x D x H) - 374 x 302 x 117
• Gross weight - 8.6 kg
• Net weight - 6.3 kg
