Yamaha MusicCast TT-N503 Vinyl 500 Belt Drive Turntable
Pairs well with
The Yamaha MusicCast TT-N503 Vinyl 500 Belt Drive Turntable is a high-quality turntable that allows for wireless streaming of music. It is a great option for those who want to enjoy the classic sound of vinyl with modern convenience.

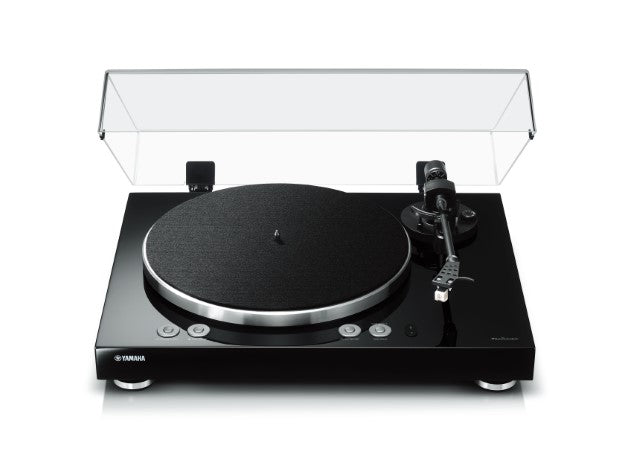

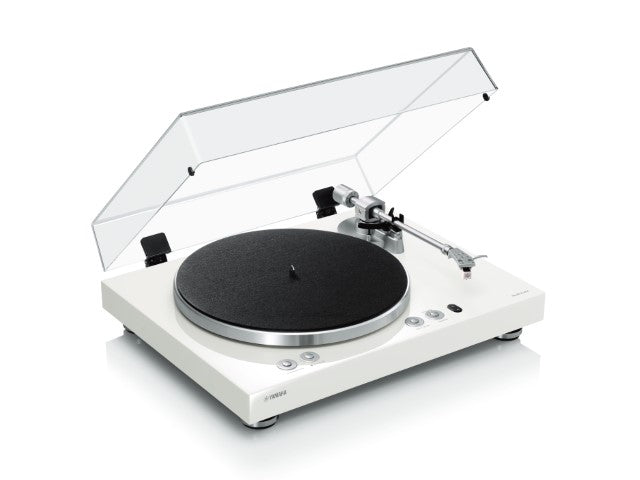

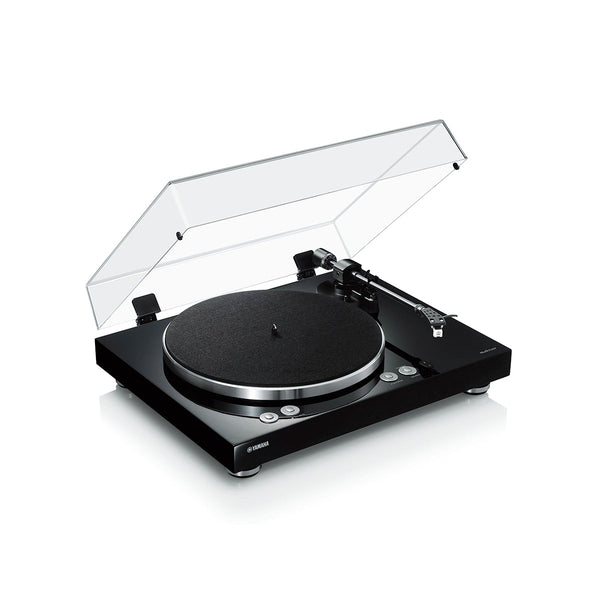

Yamaha MusicCast Vinyl 500 TT-N503 Turntable
The Yamaha TT-N503 record player is a step into the future with a tribute to the past. Meet our game-changing wireless turntable designed for a new generation of audiophiles. Featuring MusicCast multi-room capabilities, share the joy of your record collection in any room.
Yamaha TT-N503 FEATURES
- Wirelessly connect to any MusicCast device for seamless listening
- Straight tonearm contributes to sound transparency and openness
- Belt drive turntable
- Music streaming services built-in
- Wi-Fi built-in including support for 2.4 GHz and 5 GHz bands
Effortless Set Up, Seamless Compatibility
Connect to your existing amp (with or without a phono stage) or simply add the MusicCast VINYL 500 to your existing MusicCast setup.
The choice is yours.
The MusicCast VINYL 500 introduces much more than playback of vinyl to your system with music streaming services, AirPlay® and Bluetooth® built in.
*Streaming service availability varies by region and may change or be discontinued without notice.
Iconic Sound
Turn your listening experience on its head. Meet the MusicCast VINYL 500.
Meticulously designed to ensure the most faithful reproduction of sound - the way music was made to be heard - the MusicCast VINYL 500 features a straight tonearm for an open sound as well as a belt-drive motor to minimise noise caused by vibrations.
Let's Talk
Voice control completes the picture when it comes to the turntable of the future.
Connect to Amazon Alexa for an effortless, hands-free dimension to your music library exploration.
*Availability of voice command control via Amazon Alexa varies by region
SPECIFICATIONS
| MusicCast VINYL 500 (TT-N503) | ||
|---|---|---|
| Network Section | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
| Ethernet | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay | Yes | |
| Bluetooth Section | Version/Profile | Ver. 4.2 / A2DP, AVRCP |
| Audio Codec | SBC, AAC | |
| Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interference) | |
| Turntable | Drive Method | Belt drive |
| Motor | DC motor | |
| Rotation Speed | 33-1/3 rpm, 45 rpm | |
| Rotation Speed Variation | ±2% | |
| Wow And Flutter | 0.2% | |
| Platter | Aluminium die-cast (Diameter 30 cm) | |
| Output Level | 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) | |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) | |
| Tonearm | Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm | |
| Overhang | 19 mm | |
| Stylus Pressure Adjustment Range | 0-4 g | |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) | |
| Attached Cartridge | Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) | |
| Stylus Pressure | 3.5 ± 0.5 g | |
| Cartridge Weight | 5.0 ± 0.3 g | |
| Cartridge Height | 17.0 ± 0.7 mm | |
| Head-shell Weight | 10 g (including screws, nuts and wires) | |
| Audio Specifications | Output Terminal | RCA: 2 (PHONO, LINE) |
| Output Level | 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) | |
| Signal to Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) | |
| Dynamic Range | 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) | |
| Harmonic Distortion | 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) | |
| Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB) | |
| General | Power Consumption | 6 W |
| Eco-Standby (reference date) | 0.3 W | |
| Standby Power Consumption | 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired) | |
| Dimension (W×H×D) | 450 x 136 x 368 mm; 17-3/4” x 5-3/8” x 14-1/2” | |
| Weight | 5.7 kg; 12.6 lbs. | |
