Blustream ACM500 Multicast Advanced Control Module for TCP / IP

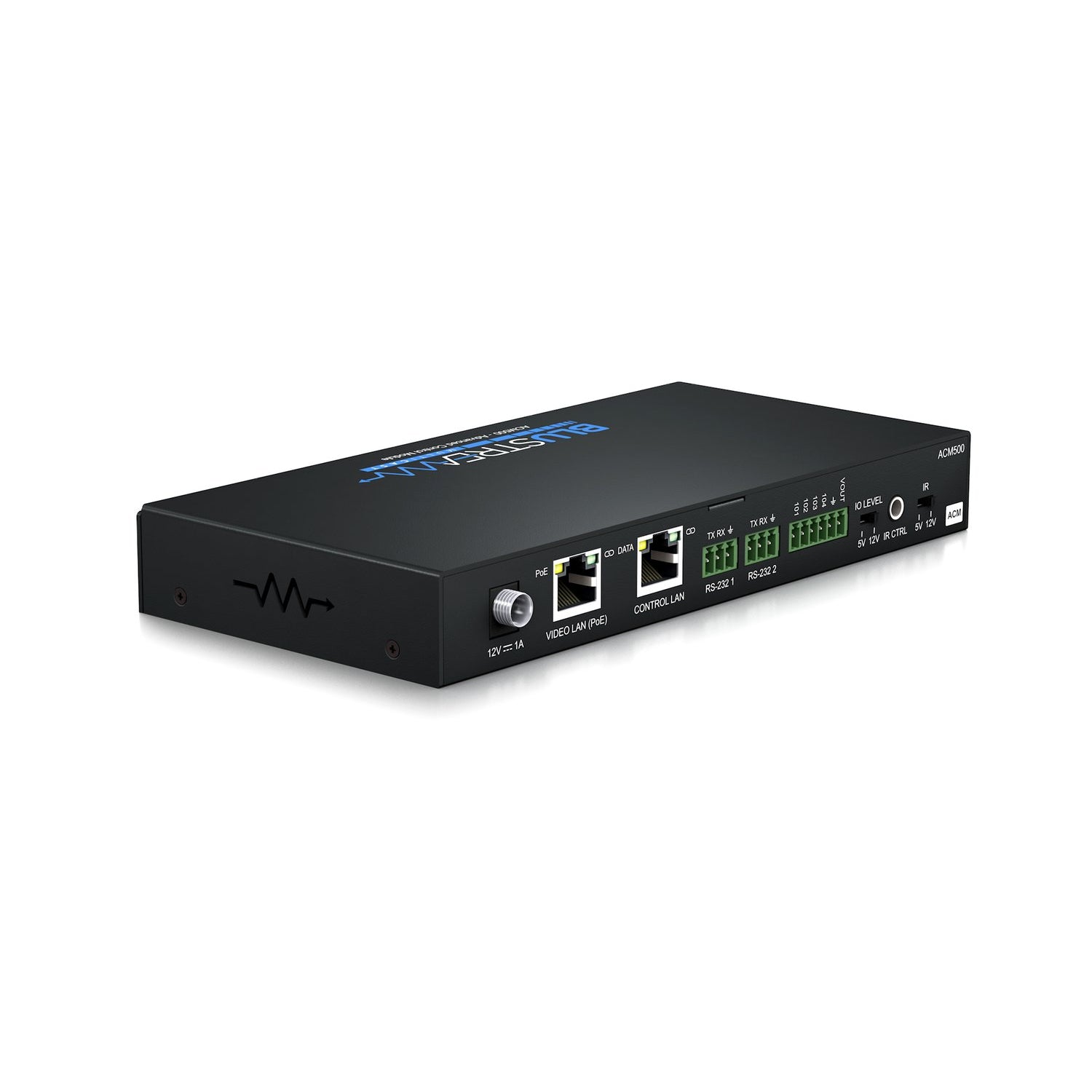

Blustream ACM500 Advanced Control Module

Multicast Advanced Control Module for TCP / IP, RS-232 and IR control of Blustream SDVoE 10Gb Multicast (IP500UHD-TZ) systems with Web GUI

Blustream's UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks.

The ACM500 Control Module features advanced third party control of the SDVoE 10GbE Multicast system using TCP/IP, RS-232 and IR. The ACM500 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.

Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Key Features

• Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast system

• Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status

• Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video

• Auto system configuration

• 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:

       - Better system performance as network traffic is separated

       - No advanced network setup required

       - Independent IP address per LAN connection

  - Allows simplified TCP/IP control of Multicast system

• Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices

• 5V/12V IR integration for control of Multicast system

• PoE (Power over Ethernet) to power Blustream product from PoE switch

• Local 12V power supply (optional) should Ethernet switch not support PoE

• Support for iOS and Android App control

• 3rd Party drivers available for all major control brands

Specifications

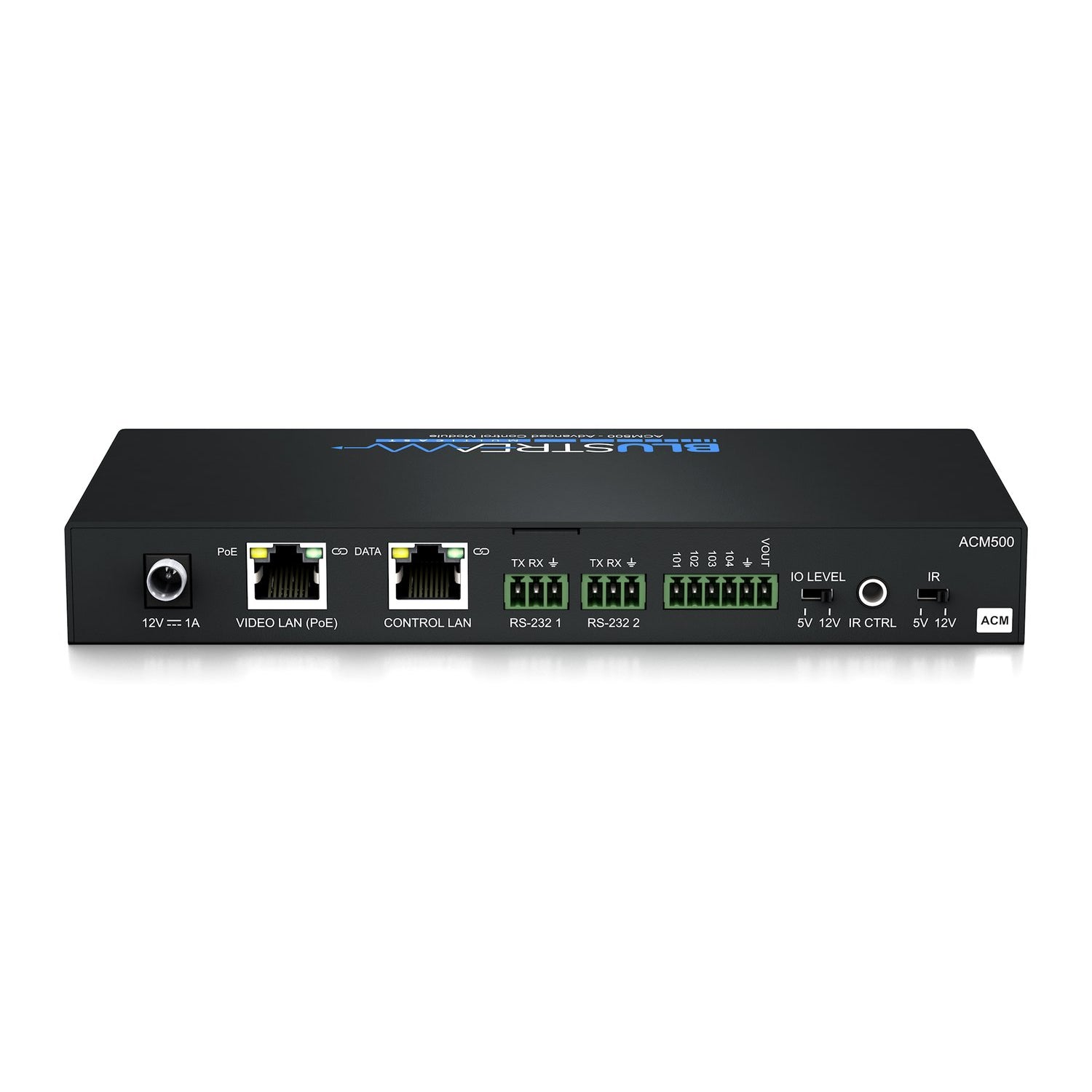

• Ethernet Port: 2 x 1Gb LAN RJ45 connector (1x PoE support)

• RS-232 Serial Port: 2 x 3-Pin Phoenix connector

• I/O Port: 1 x 6-Pin Phoenix connector

• IR Input Ports: 1 x 3.5mm stereo jack

• PoE draw: 7.9W (typical), 8.4W (max load)

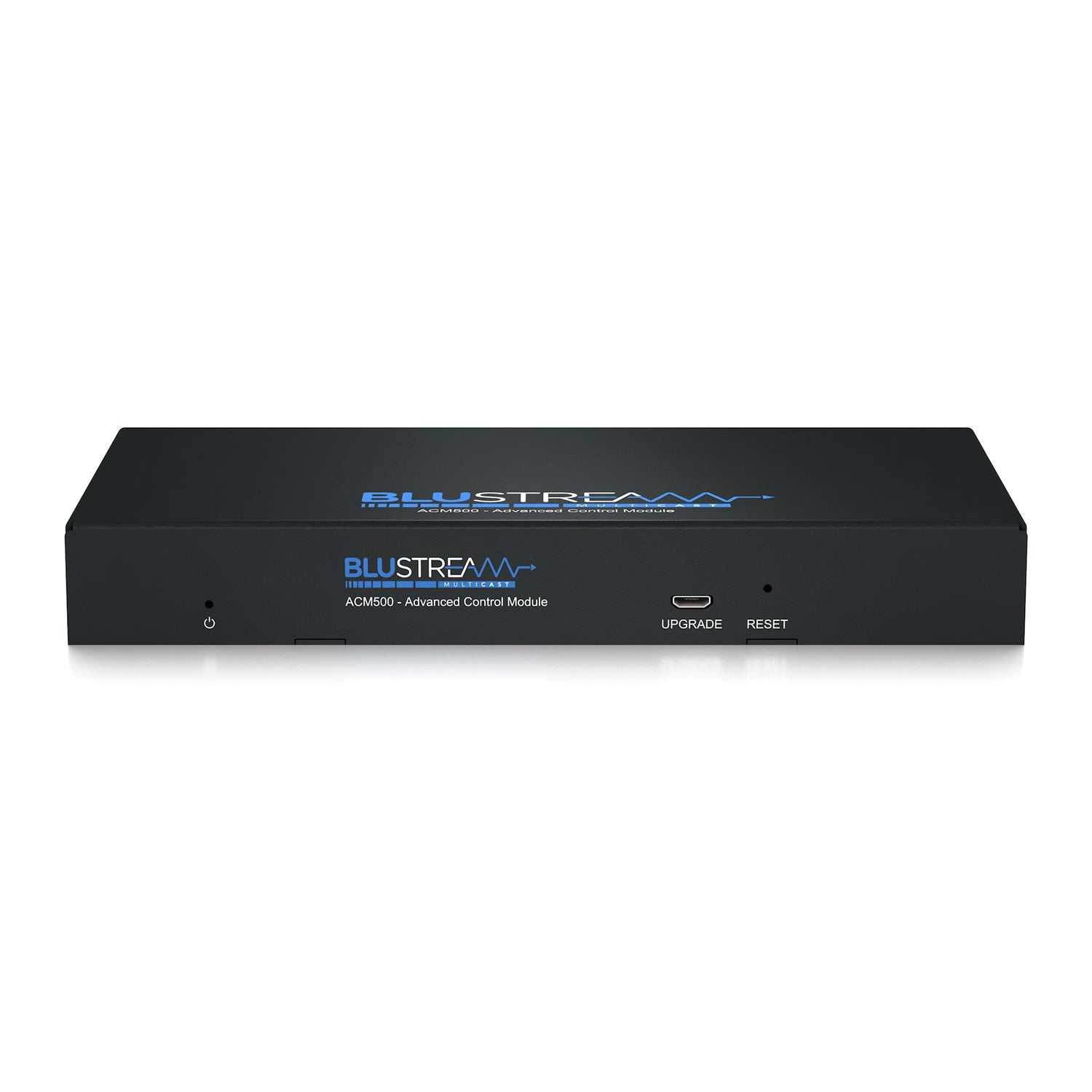

• Product Upgrade: 1 x Micro USB, female

• Dimensions (W x D x H): 190.4mm x 93mm x 25mm

• Shipping Weight (Kit): 0.6kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: PoE or 12V/1A DC

Box Contents

• 1 x ACM500
• 1 x IR Control Cable - 3.5mm to 3.5mm Cable
• 4 x Rubber Feet
• 1 x Mounting Kit
