Blustream PRO-OUT4TL-V2 4-Way HDBaseT™ CSC Output Board - 4K HDR up to 40m

No reviews

Regular price$1,649.00
/
10 interest free payments from $164.90 with


Description

The PRO-OUT4TL-V2 output board offers 4 x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 40m (1080p to 70m).

The PRO-OUT4TL-V2 features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

The PRO-OUT4TL-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

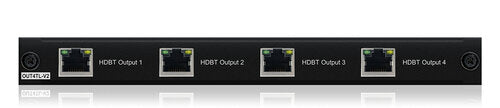

  • Features 4 x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m*

  • Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:

    - 1080p 60Hz (for screens that do not support 4K)

    - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

  • Extends HDMI 1080p video up to 70m

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Supports PoC to power Blustream HDBaseT™ receivers

  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

  • HDCP 2.2 Support

  • To be used with the HEX70CS-RX receivers

    *For HDMI 2.0 18Gbps video distribution the PRO-OUT4TL-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board

Specifications

  • Video Output Connectors: 4 x HDBaseT™ RJ45 connector

  • Card Dimensions (W x H x D): 182mm x 22mm x 177mm

  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
