Product Description
- Only 75mm x 70mm x 110mm.
- 25wpc + 25wpc @ 4 Ohms.
- 18wpc + 18wpc @ 6 Ohms.
- 12wpc + 12wpc @ 8 Ohms.

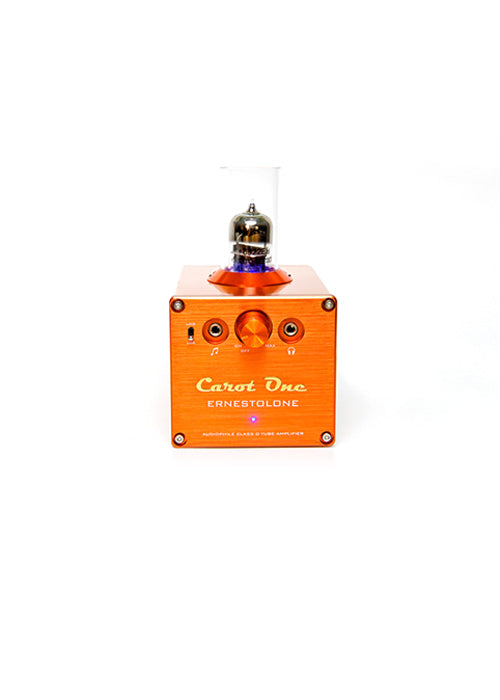

- Front panel jacks for headphones and iPod/iPhoneMP3 inputs, as well as a switch from USB input to line level input

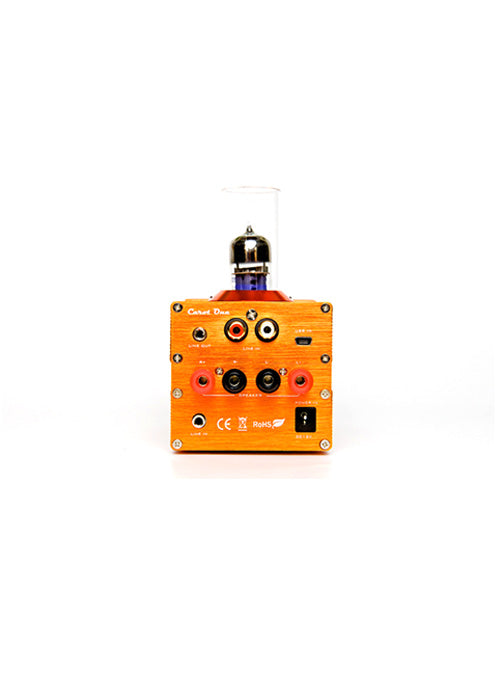

- Rear panel connections for line input, USB input and speaker outputs
- High power allows for use with a wide variety of quality loudspeakers
- Spectacular audio performance—your PC never sounded this amazing!
For excellent performances we recommend the COCAINE speakers and NERO electronics.
| Output Power | 2x25W @4ohm, 2x12W @8ohm(RMS) |
|---|---|
| Signal-to-Noise Ratio (SNR) | 98dB |
| Dynamic Range | 98dB |
| THD+Noise Audiophile Quality | 0.1%, 0.11%, 0.15% |
| High Power | 10% @ 15W 4Ohm, 10% @ 10W 4Ohm |
| Audio Input | IN RCA (Left/Right) x 1 |
| Power Socket | 2.1mm x 1 |
| Speaker OUT | Banana socket x4 |
| Other Volume & Knob Power | ON/OFF switch x1 |
| Power Indicator | (Blue LED) x1 |
| Power Supply | DC 12V-13.2V (max.) |
| Signal-to-Noise Ratio (SNR) Headphone | 92dB |
| Power Output Headphone | 600m Watts per channel on 32 Ohm |
| Frequency response | 15 Hz – 100 kHz -1dB |
| Input Impedance | 10k Ohms |
| USB version | USB2.0 Full speed compliant supported USB Audio, Class 1.0 |
| Resolutions | 16/24 bit supported |
| Sampling rate | 8/16/32/44.1/48/96 kHz supported |
| Vacuum Tube | (exchangeable), 6DJ8/6922 series or 12AU7 series |
| Signal-to-Noise Ratio (SNR) Amplifier | 92dB |
| THD + Noise | 0.05% @ 10k ohm 0.15% @ 33 ohm |
| CD Audio Input IN RCA | (Left/Right) x 1 [3Vpp max.] |
| Audio Output OUT | 3.5mm x 1 |
| Headphone | OUT (3.5mm) x 1 |
| Audio knob and power switch | x1 |
| Power Indicator Amplifier | (Blue LED under Tube Socket) x1 |
| Volume Knob | x1 |
| Power Supply Amplifier | DC 12V-13V (max.) |
| AC Input Universal | AC 100V-240V/50-60Hz |
| DC Output | DC 12V 5A (60W) |
| DC Plug | DC 2.1mm |
| Ripple & Noise | <= 25mV |
| Overload Protection | 105%-150% |
| Overvoltage Protection | 115%-150% |
| AC Adapter Dimensions | (L)78mm x (W)50mm x (H)33mm |
| Weight | 5.1 kg |
|---|---|
| Dimensions | 5 × 7 × 6 cm |
