Product Description
- Only 65mm x 25mm x 98mm.

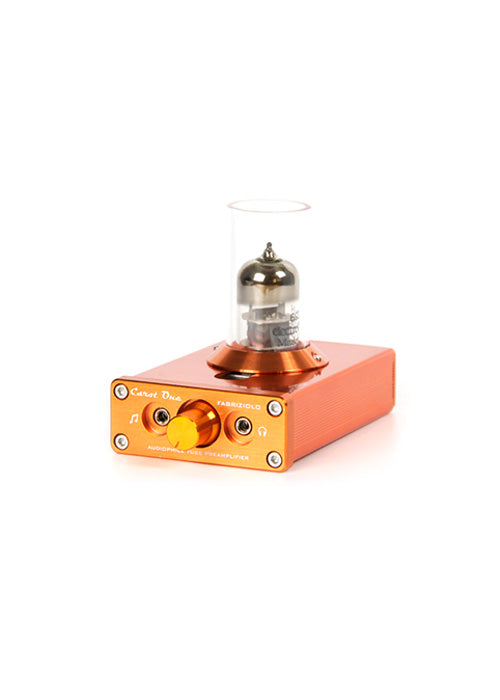

- Front panel jacks for headphones and iPod/iPhone/MP3 inputs.

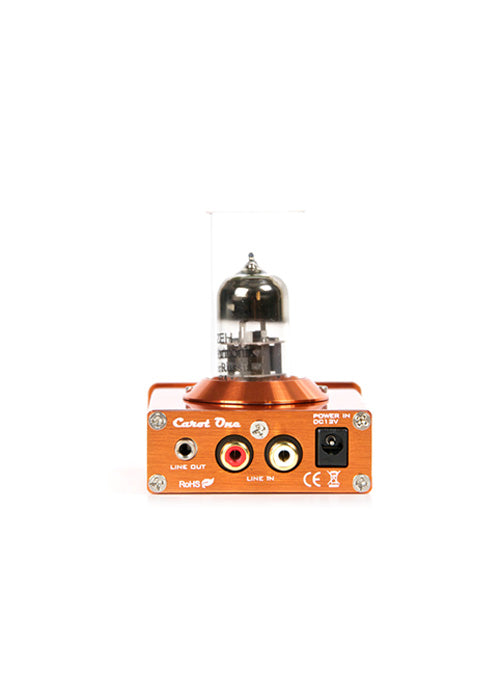

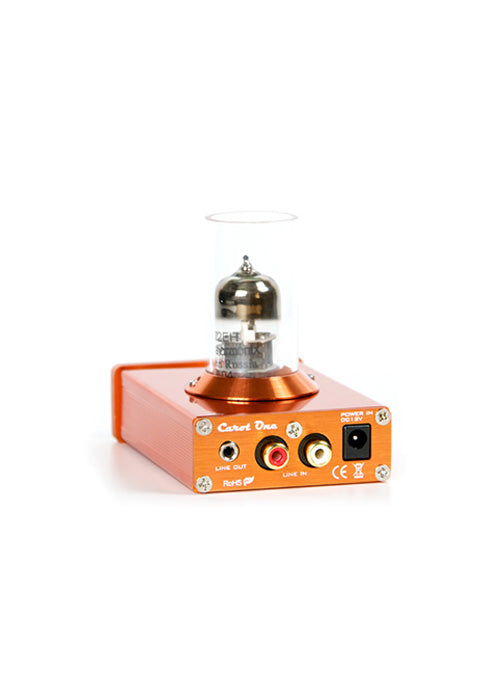

- Rear panel connections for power amplifiers, as well as rear panel line level input for CD.
- Ideal complement for headphones, iPods, MP3 players and more. Can be used with powered speakers for a complete system. Perfect for obtaining better sound from your PC.
- Spectacular audio performance!
For excellent performances we recommend the COCAINE speakers and NERO electronics. For excellent performances of your PC-TABLET-SMARTPHONE Etc.Etc. We recommend MONSTER AUDIO.
| Signal-to-Noise Ratio (SNR) | 92dB |
|---|---|
| Power Output | 3.0 Watts per channel on 33 Ohm Headphone |
| Frequency response | 15 Hz – 100 kHz -1dB |
| Input Impedance | 10k Ohms |
| Audio Input | CD IN RCA (Left/Right) x 1 [3Vpp max |
| Vacuum Tube | 6DJ8/6922 series or 12AU7 series (exchangeable) |
| Signal-to-Noise Ratio (SNR) Amplifier: | 92dB |
| THD + Noise | 0.05% @ 10k ohm 0.15% @ 33 ohm |
| Input Audio Amplifier: | CD IN RCA (Left/Right) x 1 [3Vpp max.] |
| Power Socket Amplifier | (5.5mm/2.1mm) x 1 |
| Output Power | OUT 3.5mm x 1 |
| Headphone | OUT (3.5mm) x 1 |
| Audio knob and power switch | x1 |
| Power Indicator | (Blue LED under Tube Socket) x1 Volume Knob x 1 |
| Power Supply | DC 12V-13V (max.) |
| Dimensions | (W)76mm x (H)60mm x (D)100mm – 11 – |
| AC Input Universal | AC 100V-240V/50-60Hz |
| DC Output | DC 12V 3.5A (42W) |
| Ripple & Noise | DC 2.1mm |
| Overload Protection | 105%-150% |
| Overvoltage Protection | 115%-150% |
| AC Adapter Dimensions | (L)78mm x (W)50mm x (H)33mm |
| Weight | 5.1 kg |
|---|---|
| Dimensions | 5 × 7 × 6 cm |
