Carot One Super Ernestolo Tube Amplifier
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
As a result of numerous awards and great successes here SUPER ERNESTOLO.
Same size but with twice the power of ERNESTOLO.
In addition 'the connectors for the speakers are gold plated.
Tube amp: tube preamp – power amp with 25 watts per channel.
Fashion design (orange iridescent) Sizes 65mm x 60mm x 98mm
In a very short time worldwide success.
Product Description
- 12 watts + 12 watts 8 Ohm RMS
- 18 watts + 18 watts 6 Ohm RMS
- 25 watts+ 25 watts 4 Ohm RMS

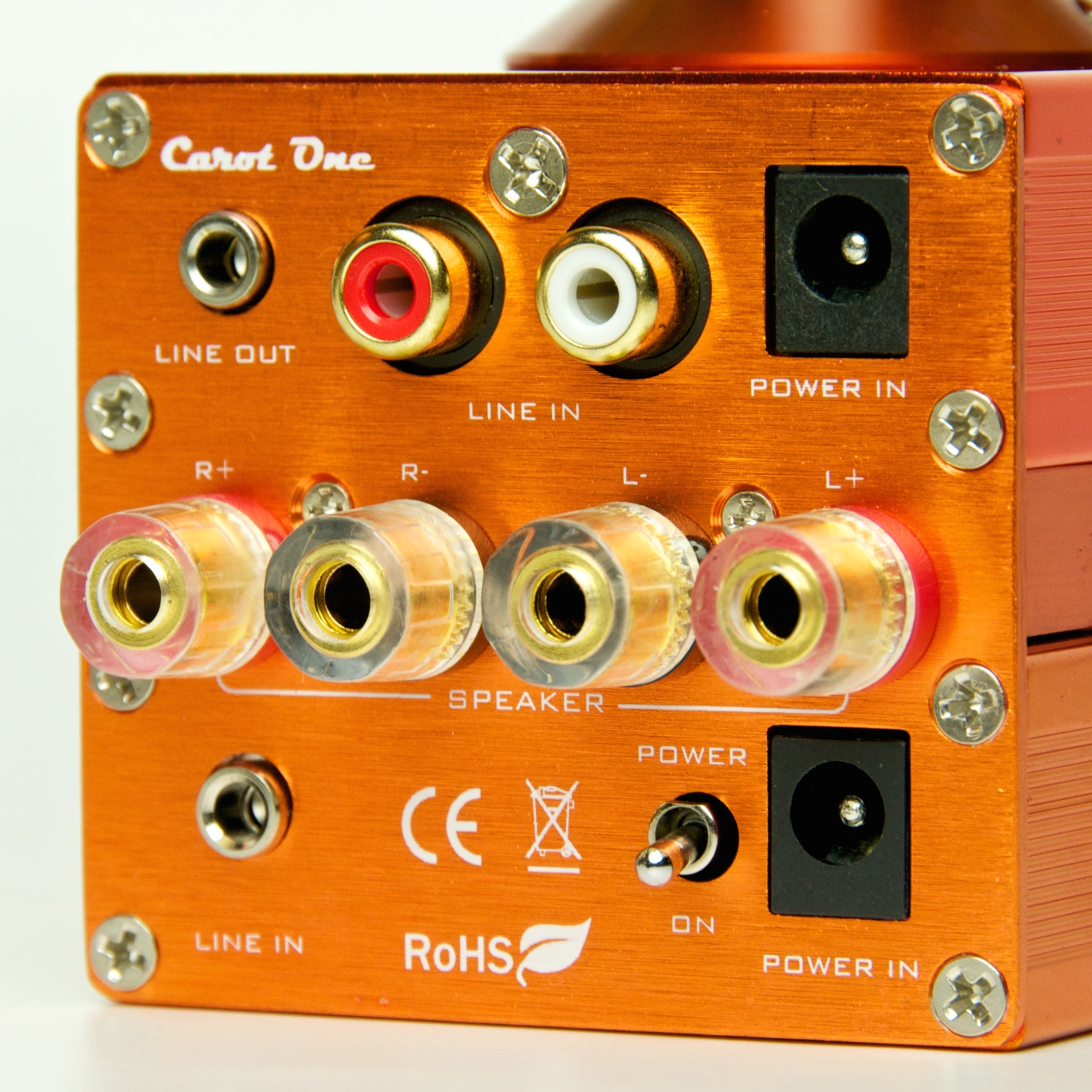

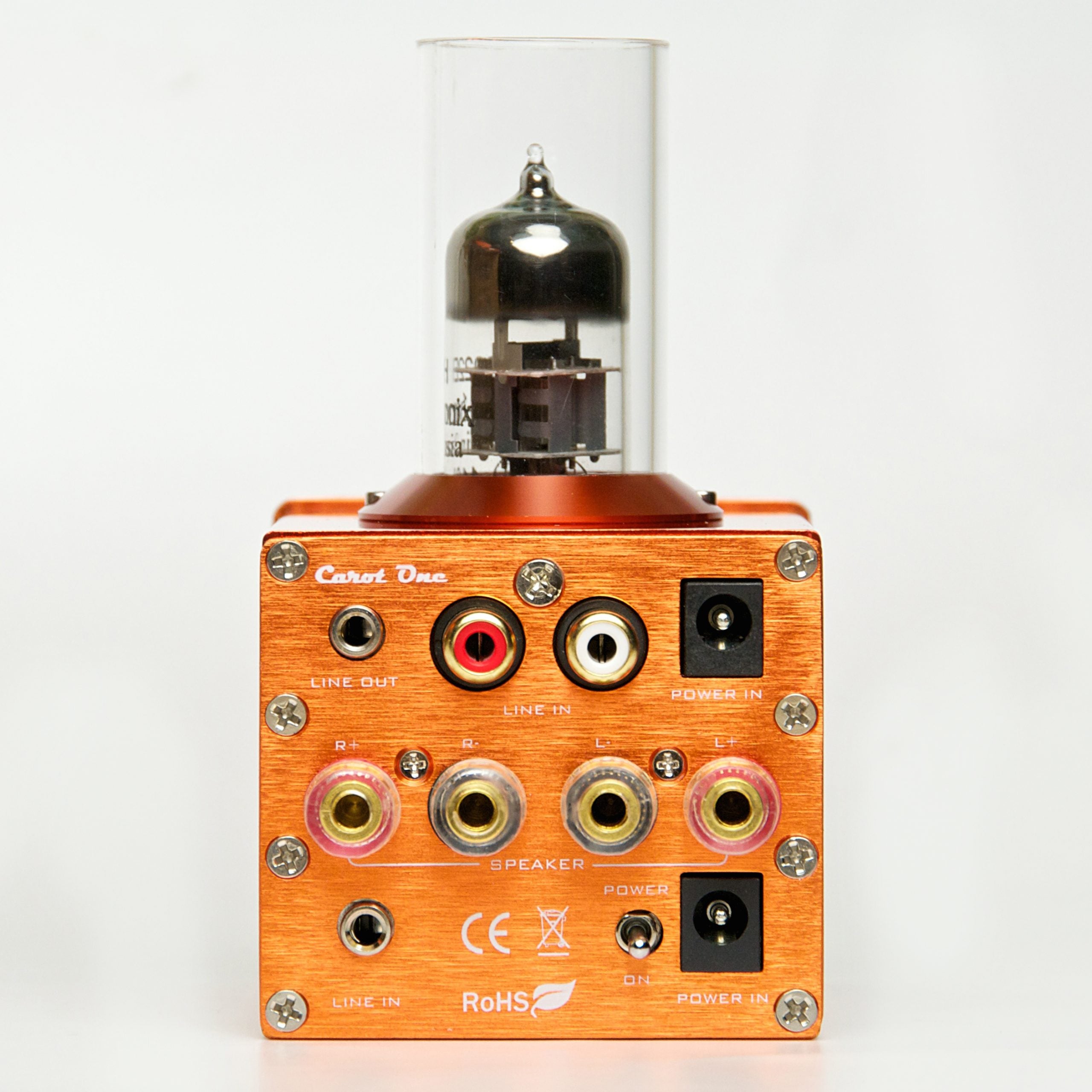

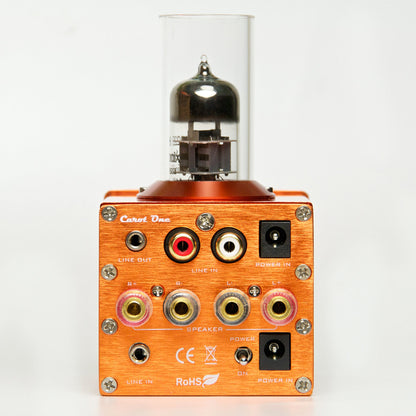

- Front panel jacks for headphones and iPod/iPhone/MP3 input, rear panel connection for line level input
An ideal match for great quality loudspeakers
Spectacular audio performance!
For excellent performances we recommend the COCAINE speakers and NERO electronics.
| Output Power | 2x12W 8ohm(RMS), 2x25W 4ohm |
|---|---|
| Signal-to-Noise Ratio (SNR) | 98dB |
| Dynamic Range | 98dB |
| THD+Noise Audiophile Quality | 0.03% 9W 4Ohm, 0.15% 8W 4Ohm, 0.11% 6W 8Ohm |
| High Power | 10% 15W 4Ohm, 10% 10W 4Ohm |
| Audio Input | IN RCA (Left/Right) x 1 |
| Power Socket | 2.1mm x 1 |

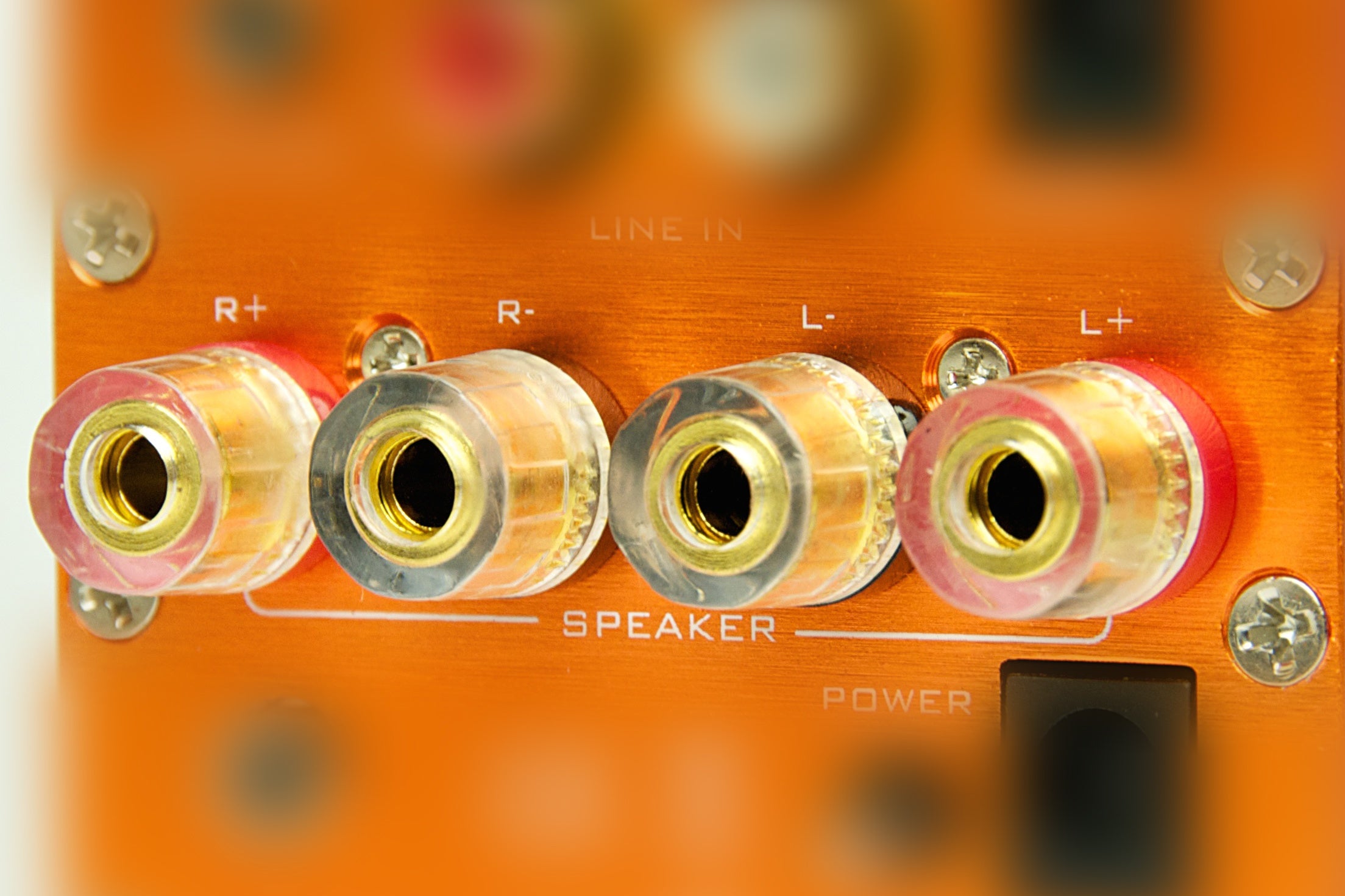

| Speaker OUT | Banana socket x4 |
| Other Volume & Knob Power ON/OFF | x1 |
| Power Indicator | (Blue LED) x1 |
| Power Supply | DC 12V-13.2V (max.) |
| Signal-to-Noise Ratio (SNR) Amplifier | 92dB |
| Power Output Amplifier | 600m Watts per channel on 32 Ohm |
| Frequency response | 15 Hz – 100 kHz -1dB |
| Input Impedance | 10k Ohms |
| Input Impedance Amplifier | 10k Ohms |
| Vacuum Tube | 6DJ8/6922 series or 12AU7 series (exchangeable) |
| THD + Noise | 0.05% 10k ohms 0.15% 33 ohms |
| CD Audio Input IN RCA | (Left/Right) x 1 [3Vpp max.] |
| Audio Output OUT | 3.5mm x 1 |
| Headphone OUT | (3.5mm) x 1 |
| Audio knob and power switch | x1 |
| Power Indicator Amplifier Unit | (Blue LED under Tube Socket) x1 |
| Volume Knob | x1 |
| Power Supply Amplifier Unit | DC 12V-13V (max.) |
| Dimensions | (W)76mm x (H)60mm x (D)100mm |
| AC Input Universal | AC 100V-240V/50-60Hz |
| DC Output | DC 12V 5A (60W) |
| DC Plug | DC 2.1mm |
| Ripple & Noise | <= 25mV |
| Overload Protection | 105%-150% |
| Overvoltage Protection | 115%-150% |
| AC Adapter Dimensions | (L)78mm x (W)50mm x (H)33mm |
