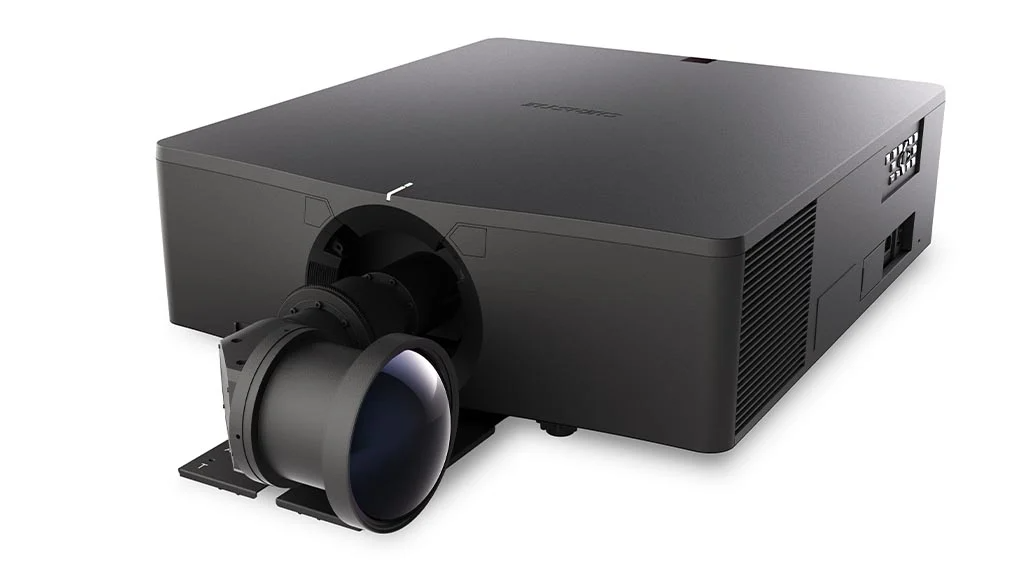

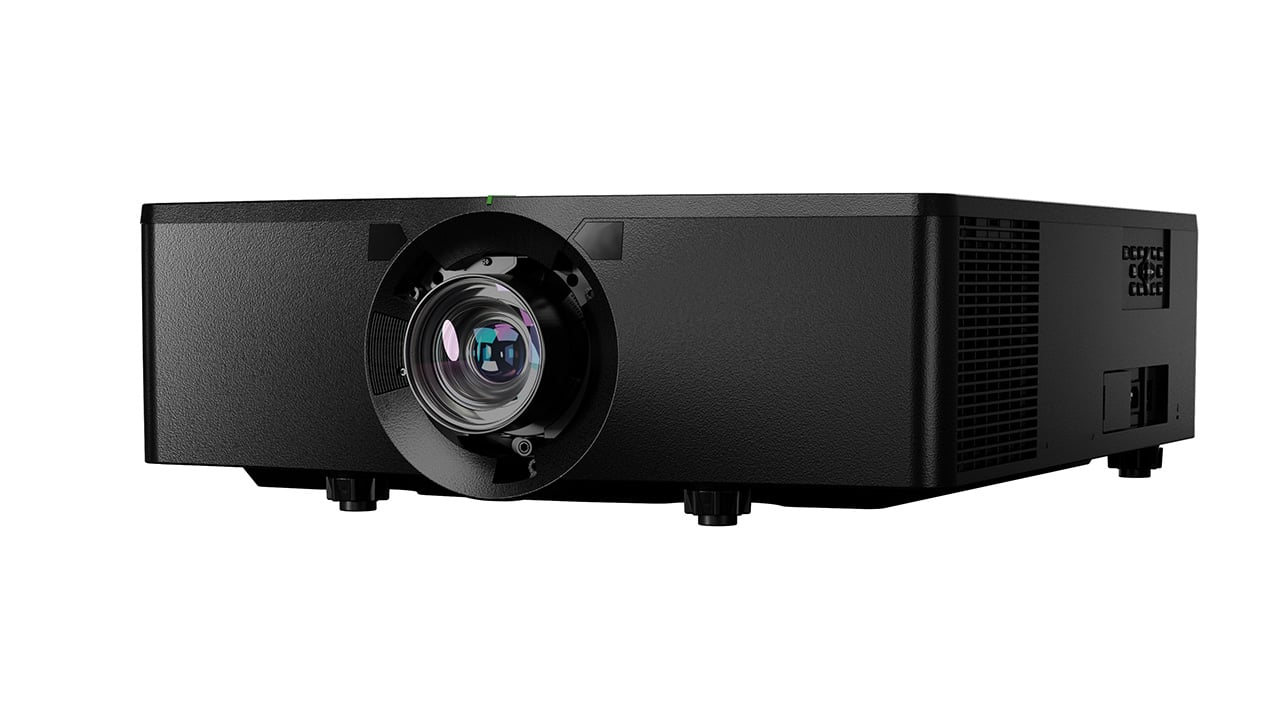

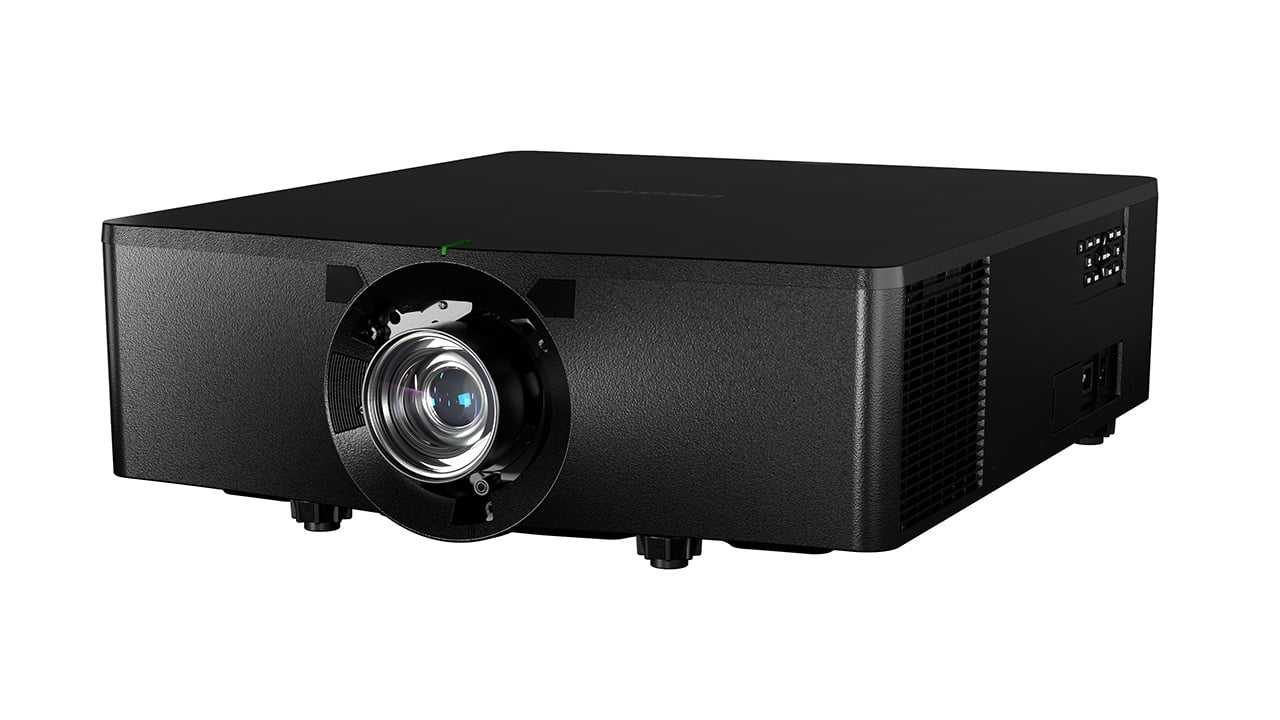

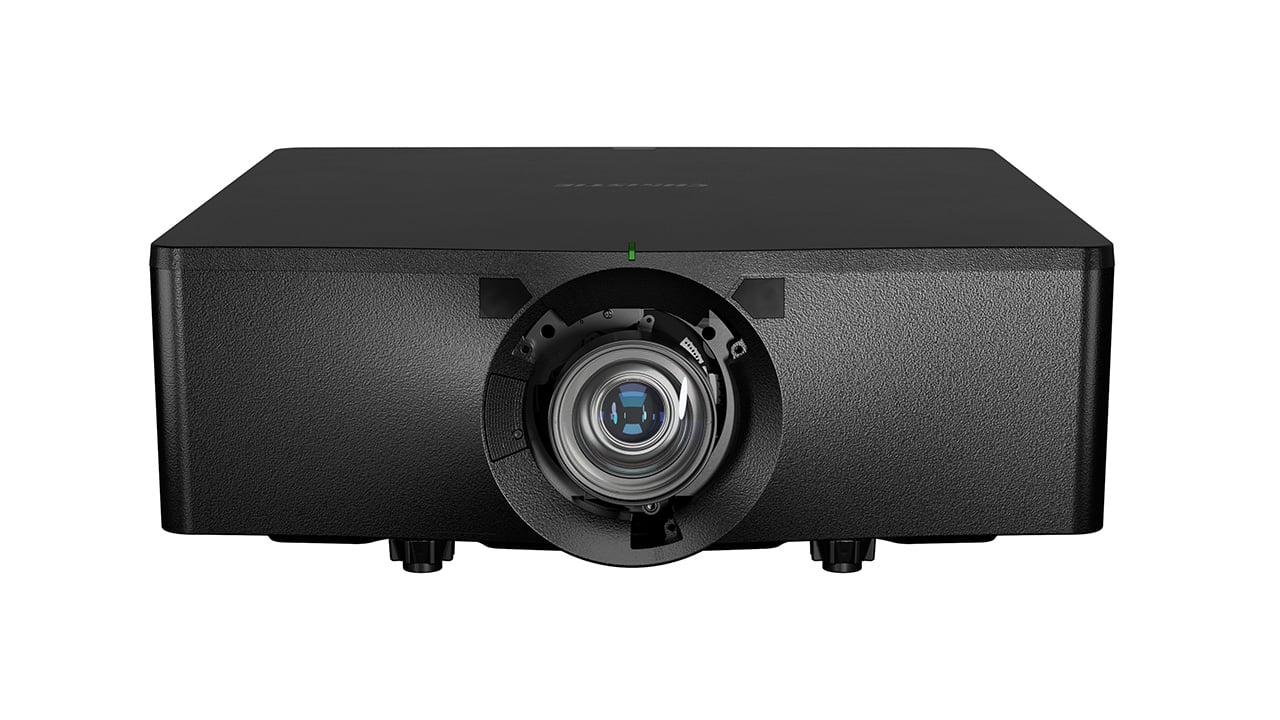

Christie 4K13-HS Laser Projector

*Please Note Lenses for this projector are sold separately*

14,800 lumen, 4K UHD, 1DLP laser projector, BoldColor+ technology

When you want a bright choice for 4K UHD projection, the Christie® 4K13-HS 1DLP® laser projector is a high-value option that delivers brightness and performance in a small form factor.

As our HS Series continues to push the brightness and image quality of 1DLP laser projection closer to the quality of 3DLP®, the 4K13-HS gives audiences deeper blacks and enhanced color performance for more natural and realistic onscreen visuals with our BoldColor+™ technology.

With passive polarized 3D functionality, Christie Twist™ onboard, compatibility with Mystique™ and Christie Intelligent Camera (CIC), and a 5-year warranty, the 4K13-HS really stands out from the crowd.

Key features
High value, high performance with a long-lasting and reliable laser light source
Premium color – Christie BoldColor+ gives audiences enhanced color performance—with deeper blacks and more natural and realistic onscreen visuals.
Passive polarized 3D and active 3D support for added versatility
Warping and blending – Built-in Christie Twist makes the setup of multi-projector displays quick and easy
Compatible with Christie Mystique automated camera-based alignment and recalibration software that lets you quickly install, align, calibrate, and maintain multi-projection systems
Use it with Christie Intelligent Camera (CIC) to trigger autofocus, automatically calibrate projector color, optimize color uniformity, and more
RealBlack™ technology – Produces the deepest possible black on-screen by completely turning off the laser light when displaying black scenes.
AMX, Creston and PJLink connectivity for enhanced collaboration and easy integration into virtually any existing boardroom
Operates at full brightness on a single 12A, 110V circuit – Simply plug into a standard outlet and start the show!
Eight interchangeable lenses give you options for a wide range of applications 
Compatible with most HS Series accessories for WUXGA models
Eco Mode – Reduces brightness to 50%, significantly extending the lifetime of your projector
Industry-leading warranty: 5 years or 20,000 hours for peace of mind and confidence in your investment
Low noise operation – 40dBA in Eco mode

14800 ISO lumens* 12500 ANSI lumens*
Brightness


3 Segment (RGB) - 4X speed
Color wheel


4,000,000:1 with Christie RealBlack™*
Contrast ratio


6000:1
Dynamic contrast


1 x 0.95" DMD
Display type


4K UHD (3840 x 2160)
Resolution


Illumination type
Laser phosphor with Christie BoldColor+™ technology


Illumination performance (hrs)
20,000 hours to 50%


Scan rates
Horizontal: 15-91kHz Vertical: 24-240Hz


Pixel clock rate
600MHz

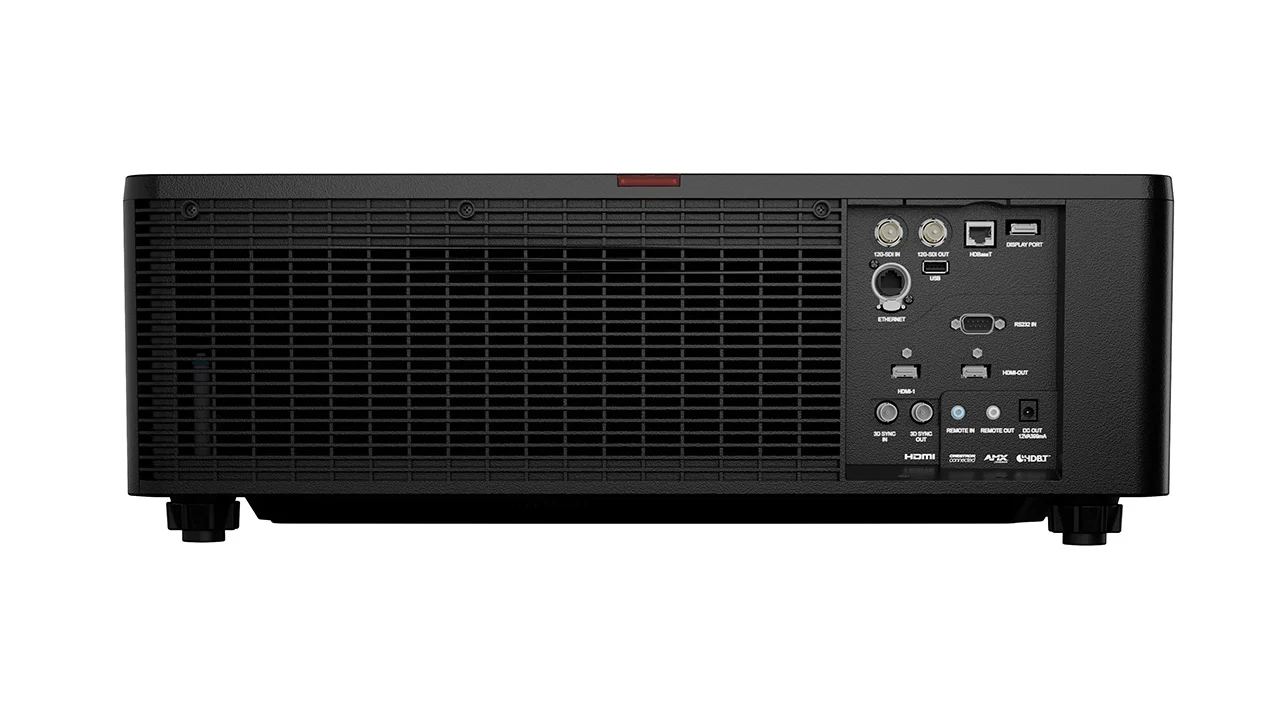

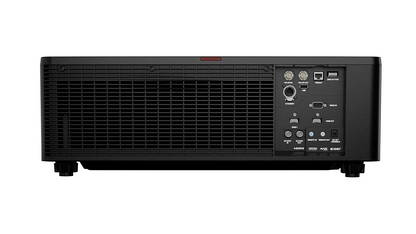

Signal inputs
Standard:
HDMI 2.0b x 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom)
12G-SDI x 1 (BNC)
DP x 1
USB x 1 (Type A)
HDBaseT (RJ45) x 1
Signals:
Horizontal and vertical scaling while maintaining aspect ratio (all inputs)

3D inputs
HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential @1080p up to 120Hz
3D sync in (BNC) – for genlocking projectors
3D sync out (BNC) – for genlocking projectors, or controlling emitter or polarizer
Active shuttered and passive polarized stereoscopic 3D

Signal outputs
12GSDI x 1 (BNC)
HDMI x1 (HDMI out)

Control and networking
HDBaseT (RJ45 x 1)
RJ45 x 1 (Ethernet Control over wired network connection)
RS232 x 1
Remote in: 3.5mm stereo female (provides serial communications and power)
Remote out: 3.5mm stereo female
Loop out available for daisy chaining
DC JACK 12VDC, 200 mA

Warping and blending
Standard:
Christie Twist™
Optional:
Christie Twist Premium and Twist Pro
Christie Mystique™ automated camera-based alignment

Lens mount
Boresight adjustable
Motorized horizontal and vertical lens offset (memory available)
Motorized zoom and focus adjustment (memory available for full ILS lenses)

Power requirements
Operating voltage:
Normal mode: 100-240 VAC @ 50/60Hz, 12A (110 VAC) 50-60Hz for US only
Power consumption:
Normal mode: 1030W
Eco1 mode: 854W
Eco2 mode: 545W
Operating current:
Normal mode: 5A (220-240 VAC) | 11A (100-120 VAC)

Dissipation
@220V:
Normal mode: 3512 BTU/hr
Eco1 mode: 2912 BTU/hr
Eco2 mode: 1858 BTU/hr

Audible noise
Standard mode: 42dBA
Eco2 mode: 40dBA

Dimensions (L x W x H)
26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet

Weight
95.9lbs (43.5kg)

Shipping dimensions (L x W x H)
37.99 x 31.30 x 14.37" (965 x 795 x 365mm)

Shipping Weight
124.3lbs (56.4kg)

Operating environment
Temp: 0 to 40° C (32 to 104° F)
Humidity: 0 - 85% non-condensing

Regulatory
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
Directives: RoHS, REACH, WEEE
Contact Christie for the timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI

Limited warranty
Five years parts and labor on the projector
Five years or 20,000 hours parts and labor on the illumination system***
Contact an authorized Christie representative for full details of our limited warranty
