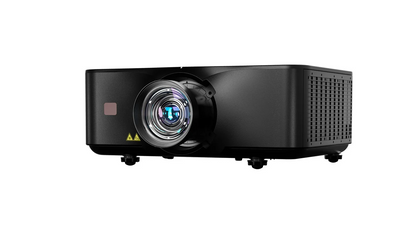

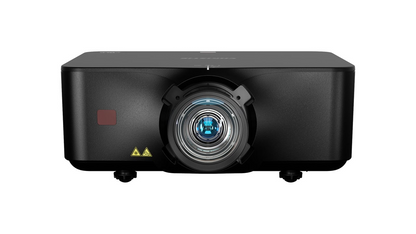

Christie 4K1400-KS 1DLP Laser Projector

*Please Note Lenses for this projector are sold separately*

Experience a symphony of light
Set the stage for possibility with Christie® Korus Series 1DLP laser projectors. Compact and lightweight at just 38 lbs, the 4K1400-KS fits seamlessly into the tightest spaces and delivers stunning 4K UHD+ clarity, breathtaking contrast, and 14,250 lumens of show-stopping color with exceptional efficiency — all powered by its advanced 0.8″ HEP DMD. Our most affordable 1DLP projector yet, Korus Series provides unmatched value and feature-rich versatility at a price in perfect harmony with any budget.

Key features
Innovation that inspires: Advanced 0.8″ High Efficiency Pixel (HEP) DMD and optical design deliver exceptional efficiency, breathtaking contrast, and show-stopping color

Resolution that resonates: Discover stunning clarity and lifelike detail with a future-proof platform, ready to deliver 4K UHD+ brilliance when you are

Contrast that captivates: Set the tone with striking depth as shadows pull you in and highlights dazzle with 1,500:1 native contrast and up to 25,000:1 dynamic contrast

Color that soars: Watch your visuals sing as accelerated color cycling delivers fluid motion and show-stopping, true-to-life color precision

Performance that outlasts: Engineered for continuous operation, with up to 20,000 hours of laser life or 50,000 hours in ECO mode

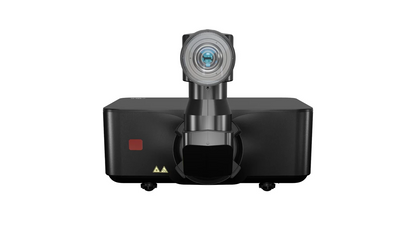

Lenses to fit every application: Eight interchangeable lenses, including a Z-shaped ultra short throw lens for complete installation freedom in tight spaces

A complete score: Built-in Christie Twist™ warping and blending, optional Mystique™ camera-based alignment, and Christie Intelligent Camera compatibility

In sync connectivity: Dual HDMI 2.0, HDBaseT 3.0, DisplayPort 1.2a, 12G-SDI, USB 2.0, and 3D Sync power fluid integration across any setup

Brilliance in every dimension: Supports active and passive 3D with stunning depth and frame rates up to 60 Hz per eye

Illumination type
High-efficiency blue laser phosphor


Illumination performance (hrs)
20,000 hours to 50% brightness


Orientation
Omnidirectional


Scan rates
Horizontal: 15.375 KHz~ 135.0 KHz ; Vertical: 23.98 Hz ~ 120 Hz


Pixel clock rate
600 MHz


Resolution
4K UHD+ 3840 x 2400
WUXGA 1920 x 1200 (native)

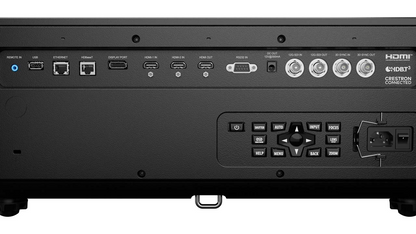

Signal inputs
Standard:
HDMI 2.0b x 2 (HDCP 1.4/2.2)
12G-SDI x 1 (BNC)
Display Port x 1 (1.2a)
USB 2.0 x 1 (Type A)
HDBaseT 3.0 (RJ45) x 1

Signal outputs
12G-SDI x 1 (BNC)
HDMI x 1 (HDMI out)

Control and networking
HDBaseT 3.0 (RJ45 x 1)
RJ45 x 1 (Ethernet Control over wired network connection)
RS232 x 1
Remote in: 3.5mm stereo female (provides serial communications and power)
DC jack 12VDC, 200 mA max

Warping and blending
Standard:
Christie Twist
Optional:
Christie Twist Premium and Twist Pro
Christie Mystique automated camera-based alignment

Power requirements
Operating voltage: 100-240 VAC @ 50/60 Hz
Power consumption: 755W
ECO1: 599W
ECO2: 422W
Operating current: 9.0 A (100-240 VAC)

Dissipation
Normal mode: 2,575 BTU/hr
ECO1: 2,043 BTU/hr
ECO2: 1,439 BTU/hr

Audible noise
Standard mode: 40dBA (max.)
Eco2: 38dBA (max.)

Dimensions (L x W x H)
 16.4 x 21.1 x 7.6" (416 x 535 x 194 mm) without feet

Weight
38 lbs (17.25 kg)

Shipping dimensions (L x W x H)
23.4 x 28.1 x 15.6" (595 x 715 x 396 mm)

Shipping Weight
50.5 lbs (22.9 kg)

Operating environment
Temperature: 32‒104 F (0-40 C) (0 – 2,500 feet altitude)
Relative humidity: 10 - 85% non-condensing

Regulatory
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
Directives: RoHS, REACH, WEEE
Contact Christie for timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE BIS VCCI RCM Mexico BSMI

Limited warranty
Five years parts and labor on the projector
Five years or 20,000 hours parts and labor on the illumination system**
Contact an authorized Christie representative for full details of our limited warranty
