Christie 4K860-iS 1DLP laser projector

8,500 lumen, 4K UHD, 1DLP laser projector, fixed motorized zoom lens

With an outstanding size-to-brightness ratio, the Christie^® Inspire 4K860-iS 1DLP^® laser projector is an inspired addition to our Inspire Series family of fixed lens projectors. This 8,500 lumen projector is a compact, lightweight professional-grade choice for small-to-mid-size environments that won’t break the bank. 

The 4K860-iS features an IP5X dust-resistant optical engine, whisper-quiet operation, and advanced electronics for onboard Christie Twist™ warping and blending and optional Mystique™ automated camera-based alignment software. It also supports 4K UHD passive polarized 3D content and is compatible with Christie Intelligent Camera (CIC). 

With an industry-leading 5-year warranty, you get amazing value and powerful capabilities at a price point that fits your budget. 

Key features

• Incredible image quality with 4K UHD resolution.
• Compact: With 8,500 lumens and weighing only 33lbs (15kg), it offers an outstanding size-to-brightness ratio
• High contrast ratio: 3,000,000:1 with Christie RealBlack™ enabled 
• RealBlack™ technology – Produces the deepest possible black on-screen by completely turning off the laser light when displaying black scenes.
• Industry-leading warranty: 5 years for peace of mind and confidence in your investment 
• Built-in warping, blending, & alignment with Christie Twist™ and optional Christie Mystique™ for manual or automated camera-based warping, blending, and alignment
• Compatible with Christie Intelligent Camera (CIC): Triggers autofocus, automatically calibrates projector color, optimizes color uniformity, and more
• Two built-in 10W stereo speakers with audio in/out capabilities make it easier for installers to do audio setup and testing 
• AMX, Creston and PJLink connectivity for enhanced collaboration and easy integration into virtually any existing boardroom
• Whisper-quiet operation with sound levels as low as 34dBA in Eco mode 
• Support for active and passive polarized 3D provides additional versatility 
• IP5X dust-resistant: the airtight optical engine resists dust particles, ensuring long-lasting reliability, and almost zero-maintenance performance 
• Larger throw ratio coverage of 1.25 to 2.0 for larger screens and greater installation flexibility
• Input source seamless switch makes it easier and faster to switch the SNG (Satellite News Gathering) signal live.
• Input signal backup switch for redundancy during live displays. If one HDMI cable disconnects, the backup is ready! 
• Omnidirectional – Operates in any orientation for unlimited installation flexibility

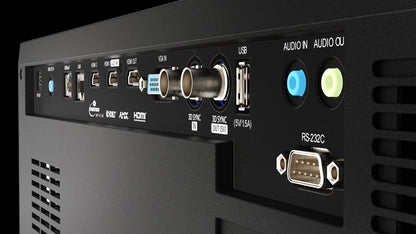

Technical specifications 4K860-iS / 4K860A-iS (TAA) Image brightness1 • 7,200 ANSI lumens • 8,500 ISO lumens contrast ratio • Full On/Off 1,300:1  •  3,000,000:1 with Christie RealBlack™ enabled Display  technology type • 1-chip 0.65" DMD resolution • 3840 x 2160 (4K UHD) 16:9 aspect ratio Illumination type • High-efficiency blue laser phosphor performance • 20,000 hours to 50% brightness2 Inputs • HDMI 2.0 x 2 • Display Port 1.2 • HDBaseT • RJ45 • 3D Sync In (BNC) • USB-A (5 V Power) • USB-B (service) • RS-232 • Wire remote (3.5 mm phone jack) • IR Receiver Outputs • 3D Sync Out (BNC) • HDMI • 12 V Trigger (3.5 mm phone jack) • Audio Out (3.5 mm phone jack) Warping and blending standard • Embedded Christie Twist™ warping and blending optional • Mystique™ automated camera-based alignment (Mystique Lite is a complimentary software download) TAA-compliant • Yes Speakers • 2 x 10W Lens type • 1.25-2.0:1 (throw ratio) • 1.6x zoom • Motorized zoom lens, focus, and lens shift lens offset • Vertical +/-110% • Horizontal +/-50% (defined at half image size) Accessories standard • Power cable  •  IR remote control (batteries included) optional • Dust filter • 3.5 mm cable for wired remote functionality  Power requirements operating voltage • AC 100–240 V at 50/60 Hz power consumption • 660W operating current • 6.5 A Audible noise • 34dBA–36dBA depending on the mode used Physical size • (LxWxH): 18.9 x 16 x 5.7" (480 x 406 x 157 mm) shipping size • (LxWxH):  25.75 x 22.17 x 14.69" (654 x 563 x 373 mm) weight • 33.1 lbs (15 kg) shipping weight • 44.9 lbs (19 kg) (COC) Enviroment temperature • 0–40 C (32–104 F) humidity • 10–85% relative humidity altitude • 0–2,500 ft. at 0–40 C • 2,500–5,000 ft. at 0–35 C • 5,000–1,000 ft. at 0–30 C Regulatory • Contact Christie® for the timing of certifications: UL/CSA/IEC 60950-1, FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, SASO. • This product conforms to all relevant European directives, standards, safety, health, and environmental concerns RoHS, REACH, WEEE Warranty • Five years parts and labor on the projector •  Five-years or 20,000 hours parts and labor on the illumination system • Reference the Christie Standard Limited Warranty document for details • Or contact an authorized Christie representative for full details of our limited warranty
