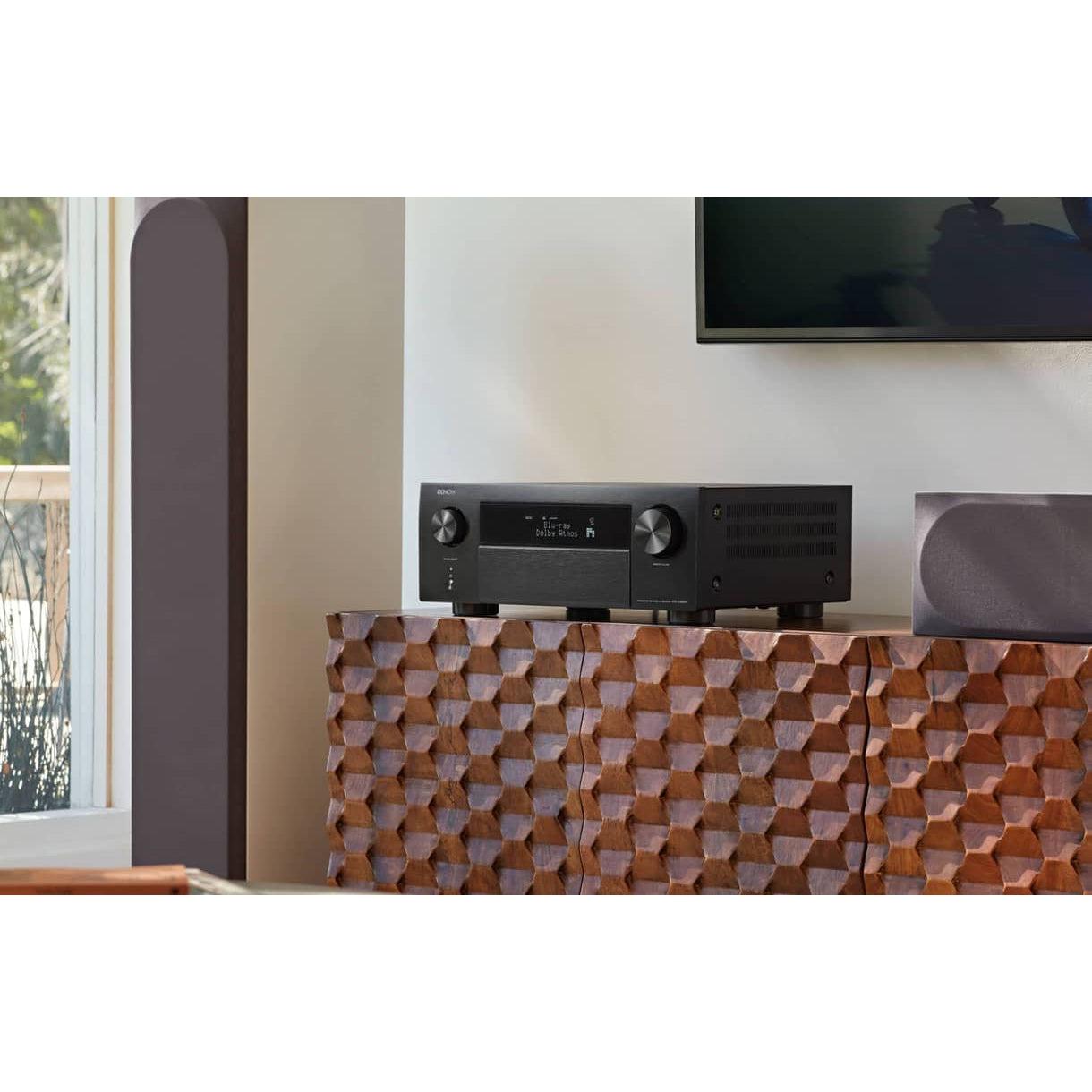

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X4800H envelops larger living spaces in breath taking 3D audio. With HEOS® Built-in, wirelessly stream your favourite music.
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 2-Line FLD |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
| HDMI In, Out | 7, 3 |
| Multi-Room Video Out: Video, HDMI | No, Yes |
| Analog In, Out | 5, No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 2 |
| Multi-Room Out: Analog, Digital | 2, No |
| Multichannel Pre-out | Yes (11.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | Yes |
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 235W |
| Metal Front Panel | Yes |
| System Remote Control | RC-1252 |
| Pre-Programmed, Learnable, LCD Display | Yes, No, No |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W/110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches |
17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】 |
| Weight in LBS | 29.1 |
