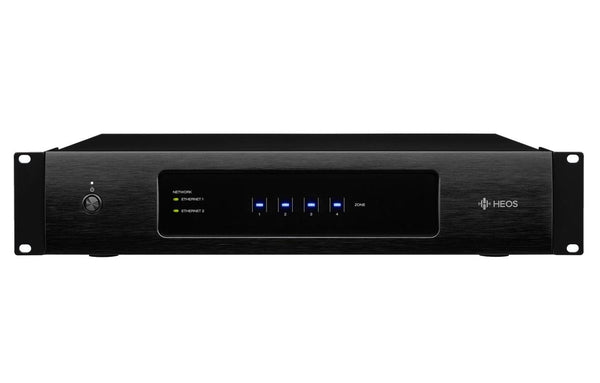

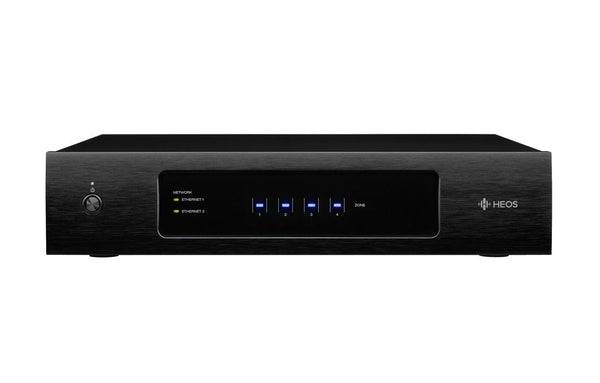

Denon Heos Drive HS2 8 Channel 60W Amplifier
Whole home multi-zone audio in a single chassis
Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.
Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive HS2 features low impedance drive capability (4 ohms).

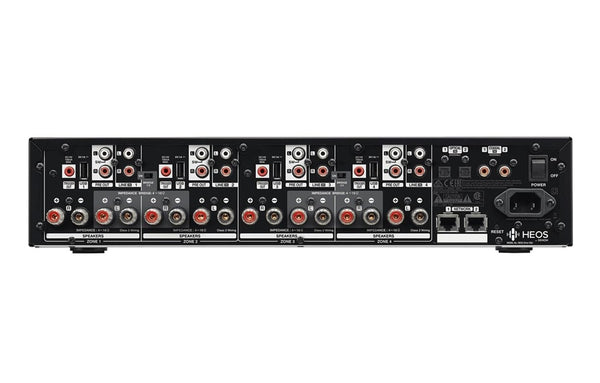

Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.
HEOS Drive HS2 comes with removable feet and attachable rack ears, allowing rack or shelf placement.
FEATURES
- Whole home amplified multi-zone audio (4 HEOS zones)
- 8 Channels Class D digital amplification; 60 wpc 8 ohms; 4 ohms compatible; bridge mode
- Pre-amp outputs for each zone
- Dual RJ-45 Ethernet LAN ports
- Stereo/Mono selectable output
- Only 2RU high; removable rack ears included
- 3rd Party Controllable
- TV-Sound Grouping allows you to enjoy TV sound throughout the HEOS ecosystem
- Dolby Digital/Dolby Digital+ downmixing to stereo
TECHNICAL SPECIFICATIONS
Audio System
Amplifier section | 8 Channels Class D Digital Amplification 60 watts per channel (20Hz~20kHz, .05%THD, 8 ohms, All channels driven) |
Bridged Amplifier Mode | 130 watts per channel |
Pre-amp section | 4 Pairs Stereo Pre-amp Outputs Drive external power amplifiers |
4 USB Ports |
1 for each zone |
Power Supply |
100~240 Volts AC, 50~60 Hz auto-switching |
What's In The Box |
HEOS Drive HS2, AC power cord x 4, Ethernet Cable, Quick Start Guide, 2 rack ears |
Controls & Indicators |
Power/standby; Ethernet status 1/2; Zones 1~4 active status |
Weight |
15.9 lbs; 7.2 kg |
Dimensions (H x W x D) |
88mm x 430mm x 402 mm (without rack ears)88mm x 483mm x 402 mm (with rack ears) |
Operating Temperature Range |
41°F~95°F; 5°C~35°C |
Product Finish |
Black |
