Devialet Expert 140 Pro
The ultimate audiophile system.
- 2x140 Watts Under 6Ω
- Graphite Grey
All the promises of an Expert Pro system.
ADH®, SAM®, RAM®, EVO®... The Expert 140 Pro features all of Devialet's exclusive technologies.
Incomparable performances.
Expert Pro is the world’s most advanced audiophile system, meant for music lovers in search of a refined and emotional listening experience. Designed to replace traditional Hi-Fi systems, Expert Pro delivers all the core elements of playback – preamp, amp, DAC, streamer, phono stage – in a single and ultra-compact unit.
Entirely configurable.
By rethinking sound reproduction at every turn, Devialet engineers have been able to achieve the best performance ever measured, at all power levels. Entirely configurable and upgradable, Expert Pro reveals your music’s full potential, whatever the source or speakers.
Specifications
Range
Stereo
Exclusive technologies

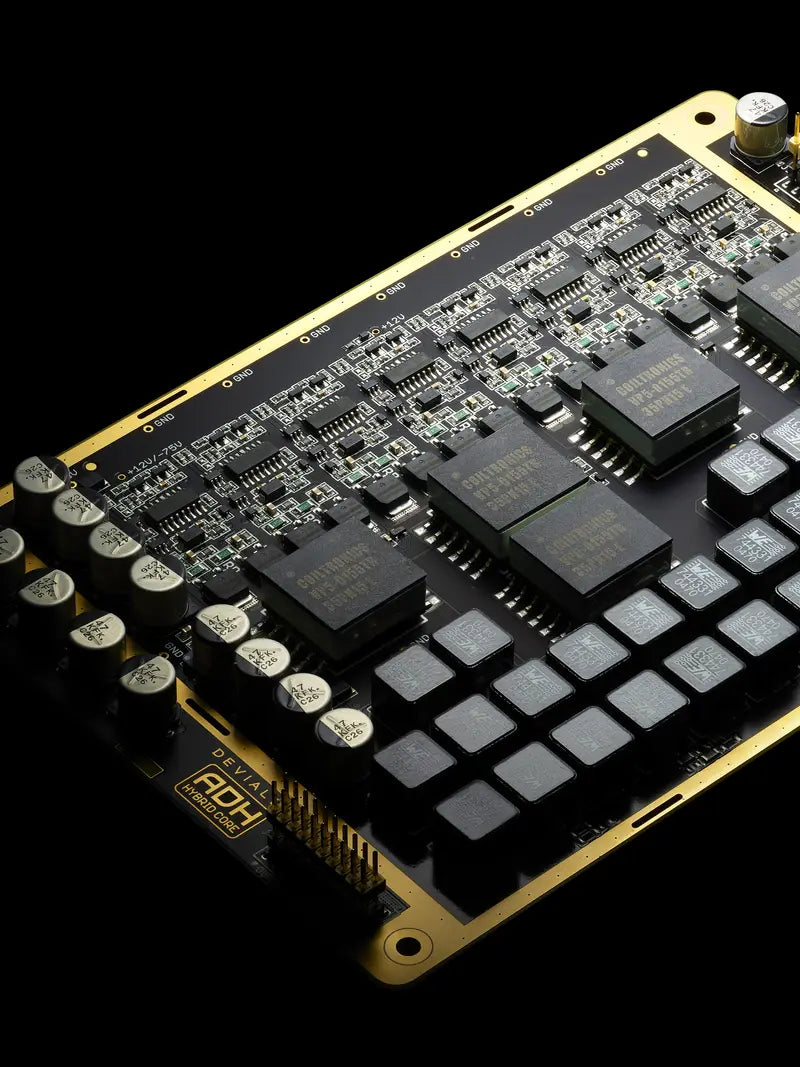

ADH®, SAM®, RAM®, EVO®, DAC Magic Wire®
streaming services
UPnP
Airplay®
Spotify Connect
Dimensions & Weight
Dimensions
Width: 383mm | Depth: 383mm | Height: 40mm
Weight
5.65Kg

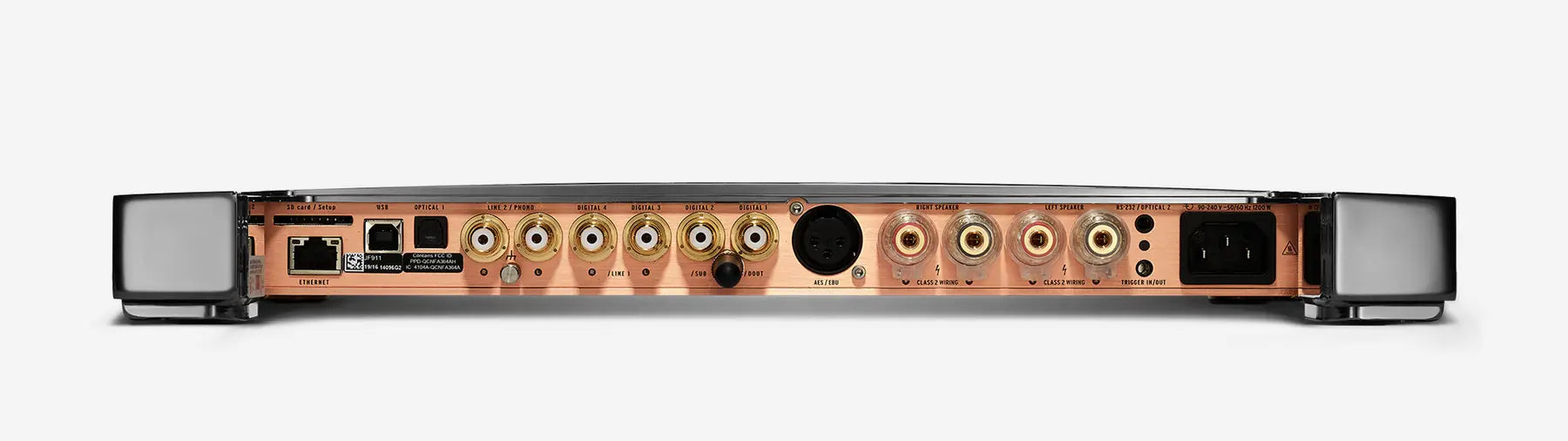

Connectivity
wi-fi
2.4GHz / 5GHz 802.11ac, compatible with 802.11a/b/g/n
Ethernet
RJ45 100/1000 Mbps
usb
USB Audio 2.0 Asynchronous
Very low latency
Bi-directionality (for digitisation of the analog sources)
Digital coaxial inputs
Up to 4x RCA 75Ω
Digital optical inputs
1x TOSLINK
Up to 1x mini TOSLINK 3.5mm
Supported formats
Up to 32bits / 192kHz PCM (USB)
Up to 24bits / 192kHz PCM (AIR®, UPnP, Coaxial)
Up to 24bits / 96kHz PCM (Optical)
Up to 1bit / 3.072000MHz DSD64 (USB, Coaxial)
Analog inputs
Up to 1x RCA stereo
Sensitivity adjustable via the Configurator
Standard phono stage (MM / MC)
Speaker output
4mm banana plugs, fork connectors or stripped cables
Compatible with all speakers from 8Ω to 2Ω
Short-circuit protection
Active filtering available
Home automation
Up to 1x RS232 3.5mm 115200 bauds (documentation available via the Configurator)
Trigger
3.5mm trigger connector Trig In and Trig Out
Performances
Power
2x140 Watts RMS under 6Ω
Distortion at full power
0.0005% THD+N
Distortion at full power
0,00025% (10W / 6Ω)
Distortion at 10w
0.00025% THD+N
Distortion at 10V
0,0005% THD+N
Signal-to-noise ratio
130dB
Output impedance
0.001Ω
Damping factor
8000
Bandwidth
DC-30kHz @ -0.1dB
DC-95kHz @ -3dB
Phase rotation
0.4° at 20kHz
1.8° at 40kHz
Thermal distorsion
Below measurement threshold
What's in the box
- 1 Devialet Expert 140 Pro
- 1 Expert Remote (3 AAA batteries LR03 1,5V included)
- 1 User Manual1 Warranty booklet (2 years)
- 1 SD card
- 1 Power cable
- 1 Pair of gloves
- 1 Microfibre cloth
