DESCRIPTION

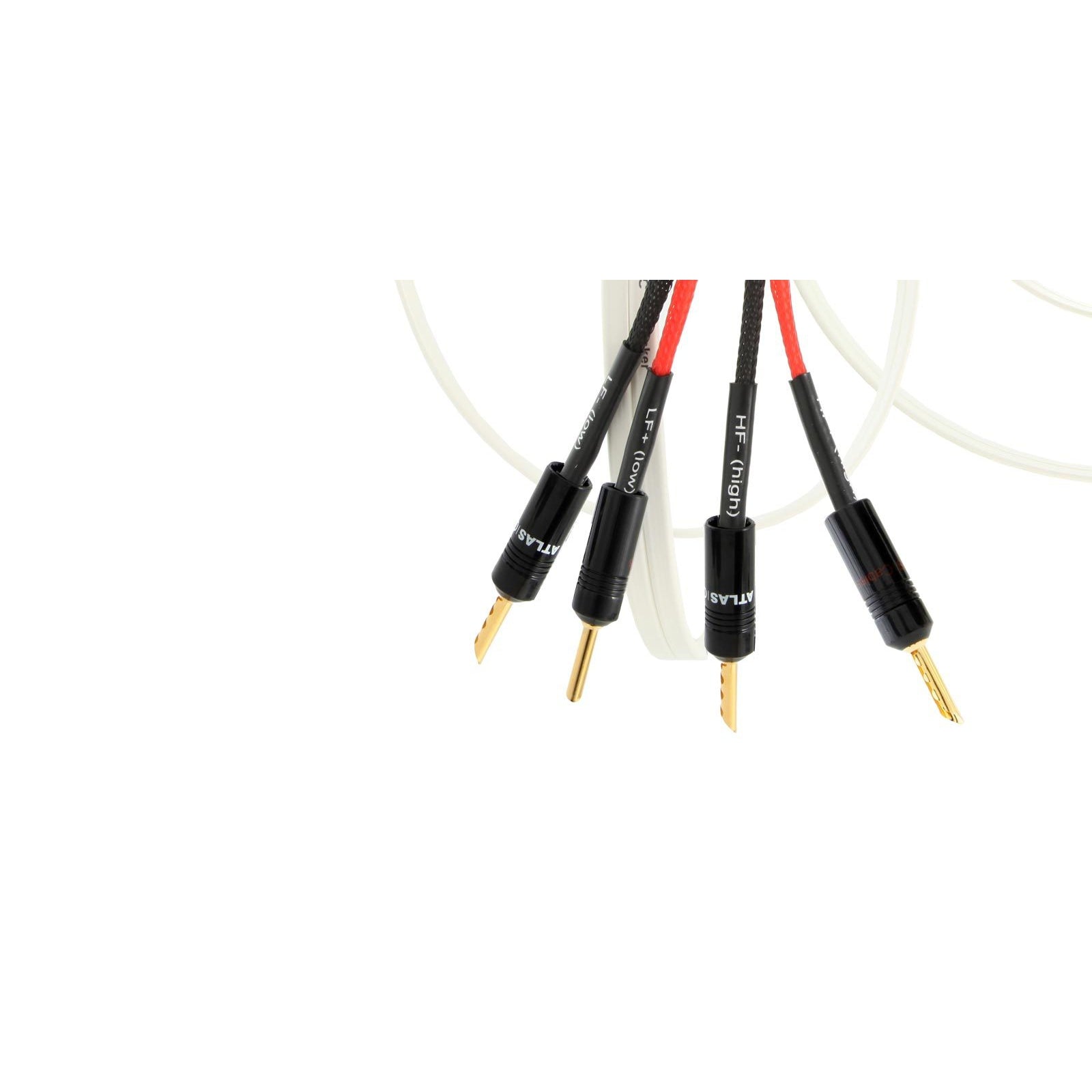

The bi-wire variation of our best-selling Element cable family. Contains 2mm² conductors of concentric stranded OFC (Oxygen Free Copper) configured as two twisted conductors for the rejection of noise together with two additional conductors consisting of a pair of 1.1mm² solid conductors for the high frequencies. Per meter, in Pearl White finish.
FEATURES
- Atlas Z-Plug
- OFC Conductors
- PEF Dielectric
- Multi-Core + Solid Core Construction
SPECIFICATIONS
-
CONSTRUCTION Multi-core LF/MF, Solid core HF (1.2mm)
-
MATERIAL 6n OFC
-
DIELECTRIC REF
-
SCREEN N/A
-
CAPACITANCE 31.64 pF/m
-
INDUCTANCE 0.708 µH/m
-
RESISTANCE 0.0069Ohms/m
-
VOP 0.712 bi-wired combined
-
OUTSIDE DIAMETER 9.0mm
