DESCRIPTION

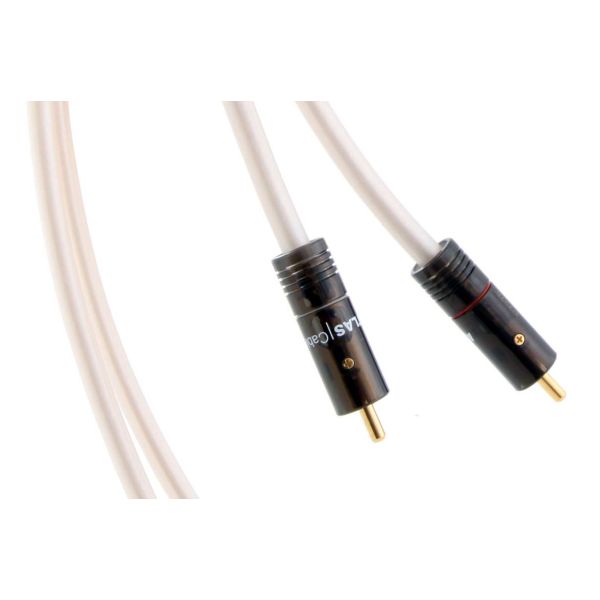

The Atlas Element asymmetrical interconnect shares many similar features to it's stable-mates in the Atlas line. It employs a braided copper and aluminium foil giving a 100% screen to provide rejection of radio frequency interference (RFI), it employs high quality Ohnous Continuous Casting Copper (OCC Copper) for it's conductors together with a low loss porous polyethylene dielectric (PEF).
FEATURES
- Integra RCA Plug
- OCC Copper
- Polyethylene (PEF) Dielectric
- Co-ax Construction
SPECIFICATIONS
-
CONSTRUCTION Co-ax Material
-
MATERIAL OCC
-
DIELECTRIC PEF (Polyethylene)
-
SCREEN OFC, 90%
-
CAPACITANCE 63.03 pF/m
-
INDUCTANCE 0.3735 µH/m
-
RESISTANCE 0.1612 Ohms/m
-
IMPEDANCE 77.05 Ohms/m
-
OUTSIDE DIAMETER 6.0mm
