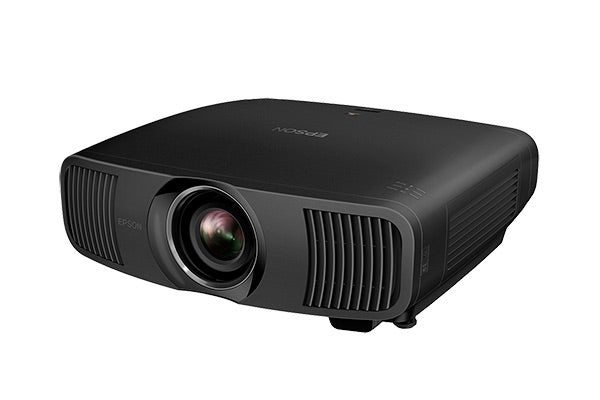

Epson EH-LS12000B Projector

Epson EH-LS12000B Projector

The EH-LS12000B is equipped with a uniquely designed laser optical engine, allowing for uncompromising brightness, contrast, colour and the highest image quality.

The laser engine’s long lifespan of up to 20,000 hours provides virtually worry-free operation. And there’s no waiting for the projector to warm-up or cool down – the projector reaches maximum brightness and turns off almost immediately.

Dedicated HDR10+ processor

The EH-LS12000B supports HDR10+ which shows dynamic range in a frame-by-frame basis so that the subtle details between bright and dark details can be kept.

Epson's full 10-bit HDR colour processing accepts 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance.

KEY FEATURES AND BENEFITS

• 4K PRO-UHD¹ – 4K home theatre projection technology only from Epson
• Up to 3x brighter colours and reliable performance² – 3LCD, 3-chip technology
• Break through laser technology – provides up to 20,000³ hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
• Bright images – 2,700 lumens colour brightness and 2,700 lumens white brightness
• Dedicated HDR10+ processor – full 10-bit HDR colour processing uses 100% of the HDR source information, enabling images to be reproduced more realistically frame by frame
• Lens shift – with this innovative technology, the projector does not need to be placed directly in front of the screen. This comes in handy when there might be light fixtures or ceiling fans which cannot be moved
• New 4K image processing chip – real time full 32-bit analogue-to-digital video processing for smooth tonal transitions
• Deep black contrast ratio – features an extraordinary contrast ratio up to 2,500,000:1 for exceptionally deep blacks and brilliant, vivid colours
• Detail enhancement – sharpen and refine images for lifelike clarity
• Lens memory – pre-set up to 10 positions for zoom, focus and lens shift for both standard projection and wide cinema ratios
• ISF certification – ensuring accurate and exceptional picture quality
• 3 year projector warranty – enjoy peace of mind with 3-year warranty

Specifications

WHAT'S IN THE BOX

EH-LS12000B projector, 3 m power cable, remote control, 2x batteries, cable cover, user guide, QR code sheet

TECHNOLOGY

Projection system 3LCD
LCD panel 0.74-inch panel
Light source Laser diode


Colour light output  2,700 lumens
White light output  2,700 lumens
Resolution 4K*
(1920 x 1080) x 4
Native aspect ratio  16:9
Contrast ratio  2,500,000:1
Colour reproduction  Up to 1.07 billion colours
Colour processing  10 bit
Keystone correction  Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Lens shift (powered)  Yes
Vertical: ±96.3%
Horizontal: ±47.1%
Zoom ratio 1 - 2.1 (optical)
Screen size 50" to 300" (16:9) [148 cm to 908 cm]
Projection distance (measured from the end of unit to projection screen) 100" screen (16:9) – 3.0 – 6.3 m
Throw ratio 1.35 (zoom:wide)
2.84 (zoom:tele)
Lens F number 2.0 – 3.0
Lens focal length 22.5 mm - 46.7 mm
Focus method Powered

CONNECTIVITY

Input: Digital 2 x HDMI (HDCP2.3) (HDMI2 supports eARC/ARC)
Input: Opt.HDMI 1 x USB A
Input: Control 1 x RS232c
Network I/O 1 x RJ45
Trigger out 3.5 mm mini-jack

ADVANCED FEATURES

4K enhancement* Yes
High dynamic range – HDR10, HDR10+ Yes
Hybrid log gamma – HLG Yes
Advanced Image processing  Yes
Super resolution  Yes (4K compatible)
Frame interpolation  Yes (up to 4K 60fps)
Auto contrast enhancement  Yes
Scene adaptive gamma  Yes
AV mute  Yes
Direct power on  Yes
Security Kensington®-style lock provision
Colour modes Dynamic, Bright Cinema, Cinema, Natural, Vivid

GENERAL

Dimensions D x W x H (projector inc feet) 447 x 520 x 192.7 mm
Net weight (projector) Approx. 12.7 kg
Projector warranty 3 years
Power consumption: normal 302 W
Power consumption: standby 2.0 W
Noise level Normal: 30 dB
Quiet: 22 dB

* 4K resolution enhancement technology shifts each pixel to produce an image on screen, up to the stated specification.
