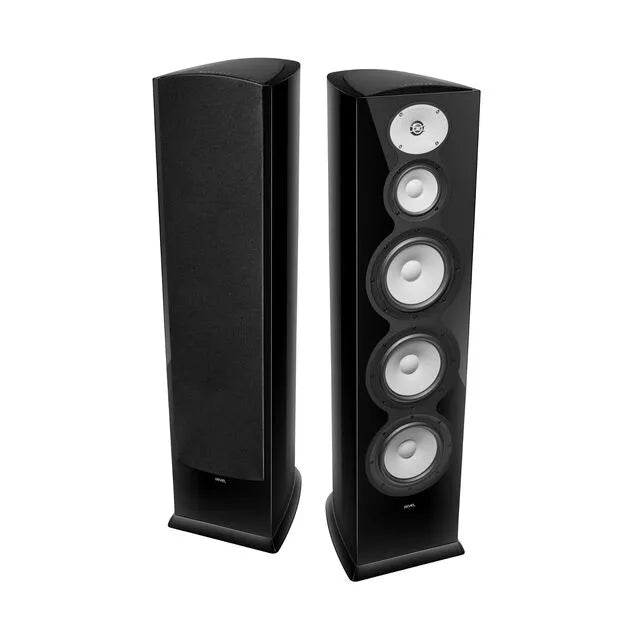

Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Piano Black-Yes please-Audio Influence

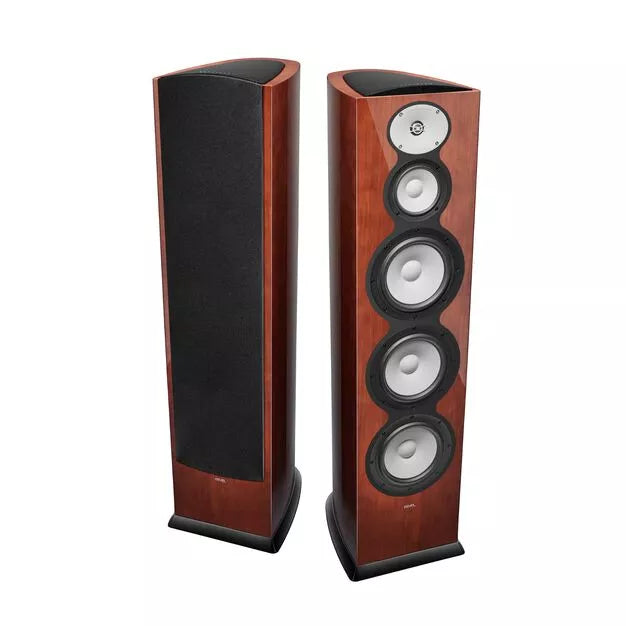

Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Gloss Walnut-Yes please-Audio Influence

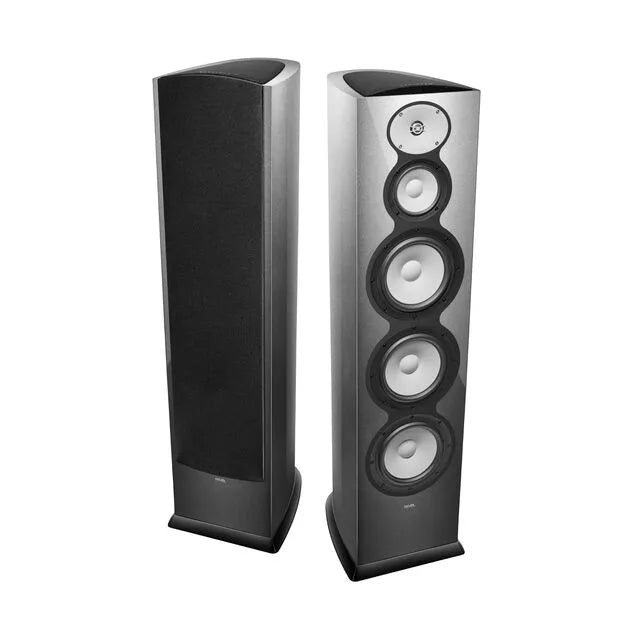

Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Silver-Yes please-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Gloss White-Yes please-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence
Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)-Audio Influence

Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker (Pair)


Regular price$29,999.00
/
10 interest free payments from $2,999.90 with

Colour

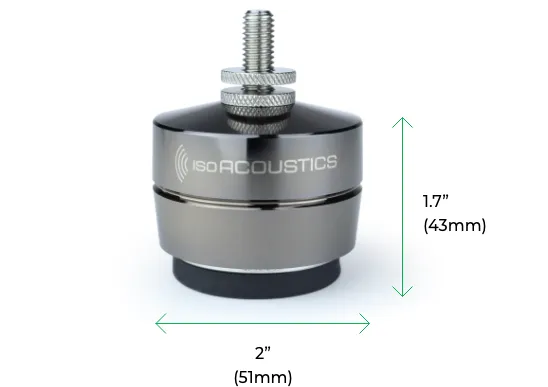

GAIA II - Isolation Feet (2 x Sets of 4)

Revel F328Be 3-Way Triple 8" Floorstanding Loudspeaker

The Revel F328Be is the flagship floorstanding loudspeaker from our award-winning Performa Be series. The F328Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful all-new tweeter and 6th-generation ceramic-coated, cast-aluminium Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminium or titanium tweeters.

Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminium and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centre piece of the Revel Performa Be loudspeaker series.

The 5.25-inch (130mm) midrange and triple 8-inch (200mm) aluminium cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminium core. The deep ceramic layers sandwiching the aluminium core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.

Features

  • Flagship Floorstander for the Performa Be Range
  • 1-inch Beryllium Dome Tweeter
  • 6th-generation Acoustic Lens Waveguide
  • Deep Ceramic Composite (DCC) Cone Midrange and Woofers
  • High-order Crossovers with Film Capacitors and Air Core Inductors

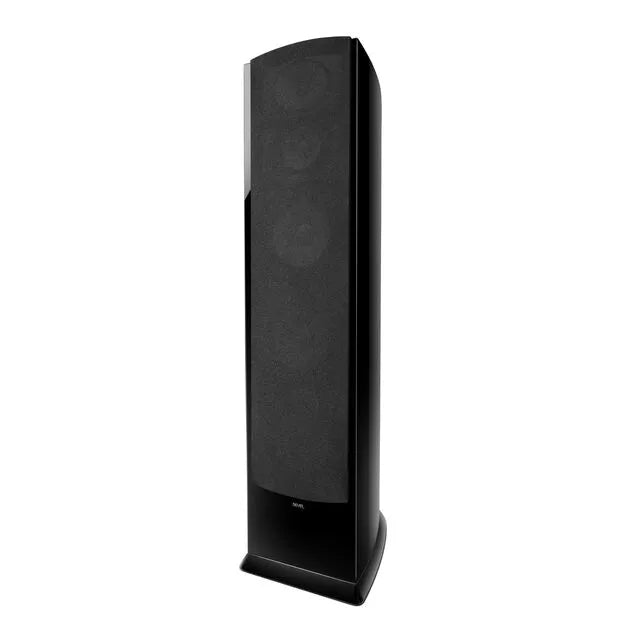

  • Magnetically Attached Grilles
  • 4 Premium High-gloss Finishes Available

Specifications

Type 3-way triple 8" floorstanding loudspeaker
Low-frequency transducer Three 8" (200mm) Deep Ceramic Composite aluminium cones, with cast frames
Midrange transducer 5-1/4" (130mm) Deep Ceramic Composite aluminium cone, with cast frame
High-frequency transducer 1" (25mm) Beryllium dome, with acoustic lens waveguide
Recommended amplifier power range 50 – 300 watts
Frequency response 26Hz - 40kHz (-6dB)
Low-frequency extension 24Hz (-10dB); 26Hz (-6dB); 35Hz (-3dB)
Nominal impedance 8 ohms
Sensitivity (2.83V/1m) 91 dB
Crossover frequencies 240Hz; 2.1kHz

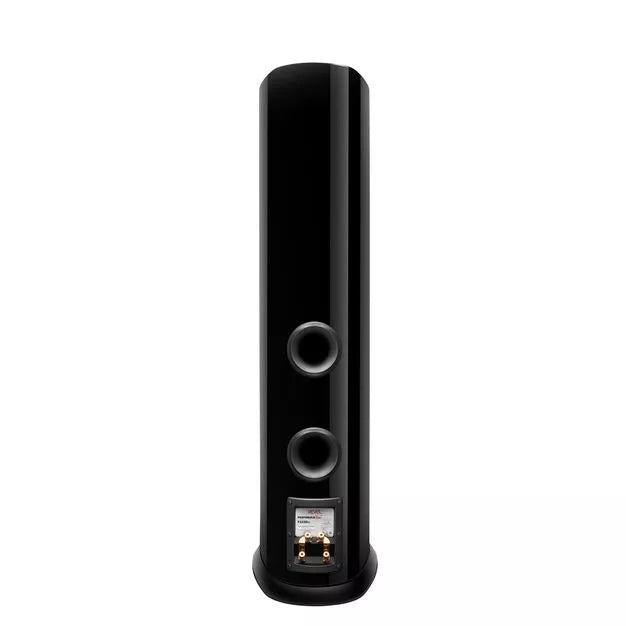

Enclosure type Bass-reflex via dual rear-mounted ports
Inputs Dual gold-plated binding posts with shorting straps

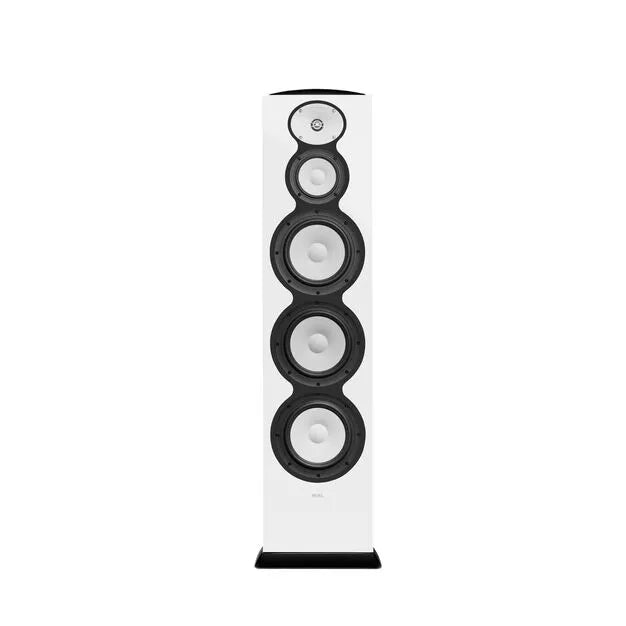

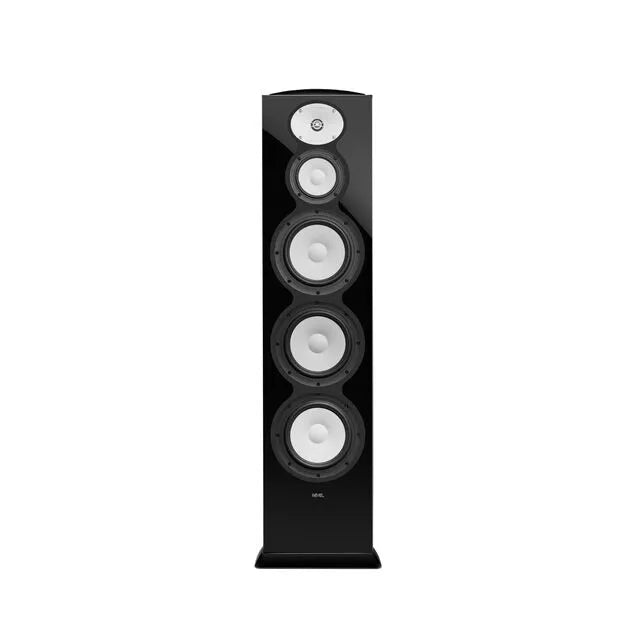

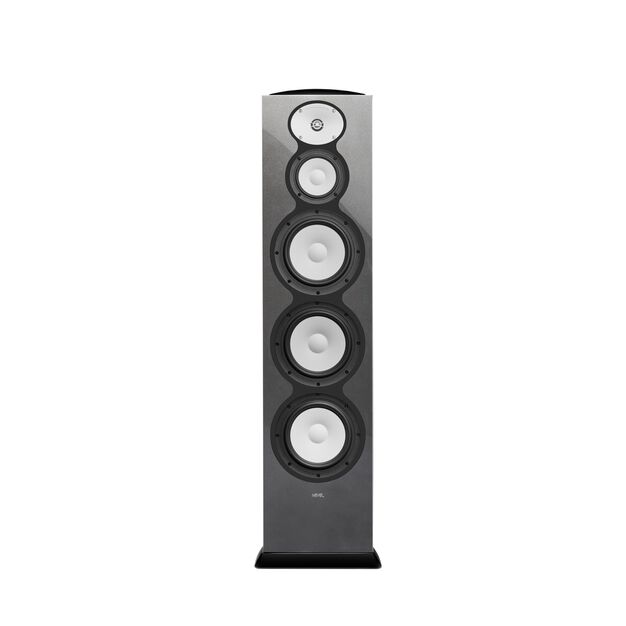

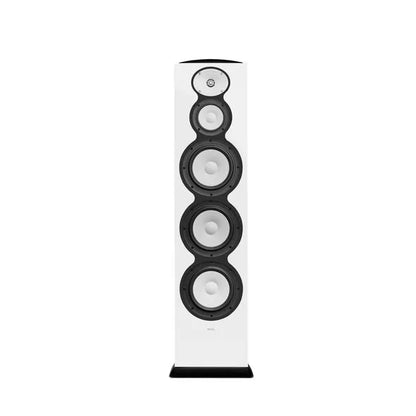

Available high-gloss finishes Black, White, Metallic Silver, and Walnut
Dimensions with base and grille (H x W x D) 50.9" x 13.5 " x 17.6" (1294mm x 341.3mm x 448.5mm)
Product Weight 112.6 lbs (51kg)
