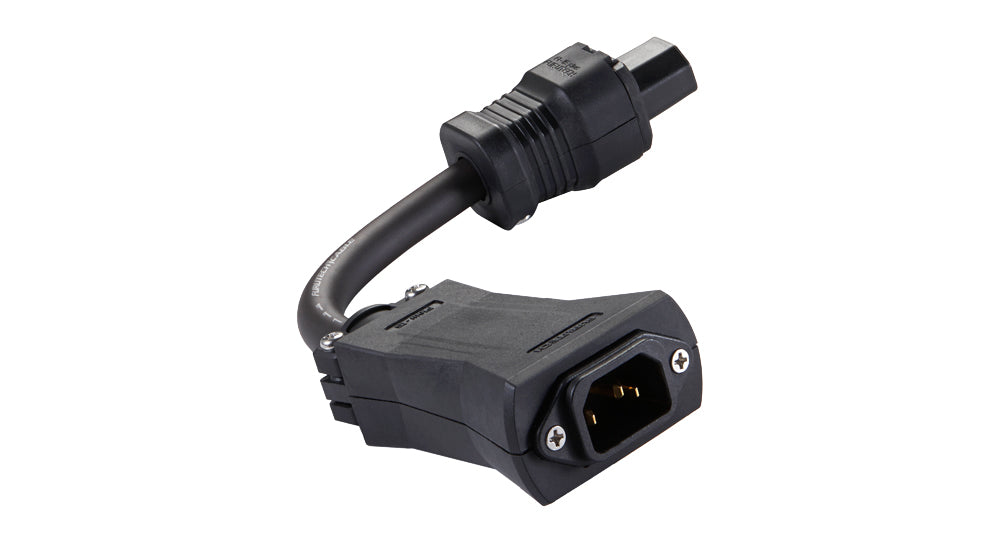

Furutech Flow-15 Plus EMI Inline Power Filter

Furutech Flow-15 Plus EMI Inline Power Filter

AC Power Can Make or Break Your System!
The audio you hear from your home entertainment system is essentially the incoming electricity itself, and the typically violent storms riding the AC line and its ground is very detrimental to the performance of your components.

The Flow-15 Plus is a sophisticated finished inline power filtering unit that eliminates many common problems caused by contaminated electrical power lines. It protects against distortion caused by ground noise, voltage spikes and sags, high frequency power supply noise from other components in your own system, and finally high-frequency digital noise emanating from processors and digital interconnects.

Plus you’re never alone when you take your listening seat; the residential AC supply is shared with other apartments, homes, and businesses on the same utility transformer explaining why many enthusiasts find their systems perform to a higher standard late at night and over weekends.

And while the Flow-15 Plus is a star performer at eliminating common AC problems, it does it all without restricting current draw in any way. Furutech, known for its world-class Pure Transmission engineering, build and finish, have done the tests and the Flow-15 Plus does not interfere with current draw. The AC-1001G EMI-filtering IEC input perfectly complements the remarkably effective Flow-15 Plus’s ability to eliminate distortion. The FI-15 Plus IEC connector finishes off the package.

The Flow-15 Plus Inline AC Filter lowers noise on every component on which it’s used resulting in very natural and extremely fine resolution down and through the utterly silent noise floor. It improves sound staging and imaging while creating nuanced high frequencies, an attractive, engaging midrange, tight and controlled bass, with power and dynamics to spare.

Features

• The body of the Flow-15 Plus combines two “active” materials: Nano-sized ceramic particles and powdered carbon plus Nylon and fiberglass to form an extremely effective mechanically and electrically damped body
• Use between power cables and power distributors or power cables and components
• Eliminates radiated AC noise
• Fitted with 24k gold-plated α (Alpha) nonmagnetic FI-15 Plus(G) connector
• AC-1001G EMI-filtering IEC features rhodium-plated α (Alpha) nonmagnetic copper alloy conductors
• A parallel circuit with an in-line coil and capacitor that reduces noise at 100KHz by 8dB and at 500KHz by 14 dB and at 10MHz by more than 30dB
• Floating Field Damper™ (Earth/Ground Jumper System) with US Patent No.: 6,669,491
• Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion
• α (Alpha) conductor shield for protection against radiated noise
• RoHS-compliant flexible PVC sheath improves vibration isolation
• Special high-grade PE Insulation contributes to reduced capacitance
• Incorporating Furutech’s special passive GC-303 EMI filtering material

Specifications

The AC-1001G EMI Filtering IEC Input
・24k gold-plated α (Alpha) nonmagnetic copper alloy conductors
・Outer cover： Chrome-plated steel-plate
・Inner cover： Nylon fiberglass
・Inner Box： Nylon fiberglass
・Inner parts held in place with Piezo Epoxy
・Rating： AC 115V/250V 10A 50/60Hz

Cable Specifications:
•Twisted 3 core high end performance power cable
•Red- 37 strands of 0.26mm silver-plated α (Alpha) OFC Conductor
•White -37 strands of 0.26mm silver-plated α (Alpha)OFC Conductor
•Green- 37 strands of 0.26mm α (Alpha) OFC Conductor
•Insulation: Polyethylene (Red/ White / Green) 3.5mm diameter
•Fillers: Cotton with paper tape wrap
•Sheath: RoHS-compliant Flexible PVC (Burgundy) approx. 10mm diameter
