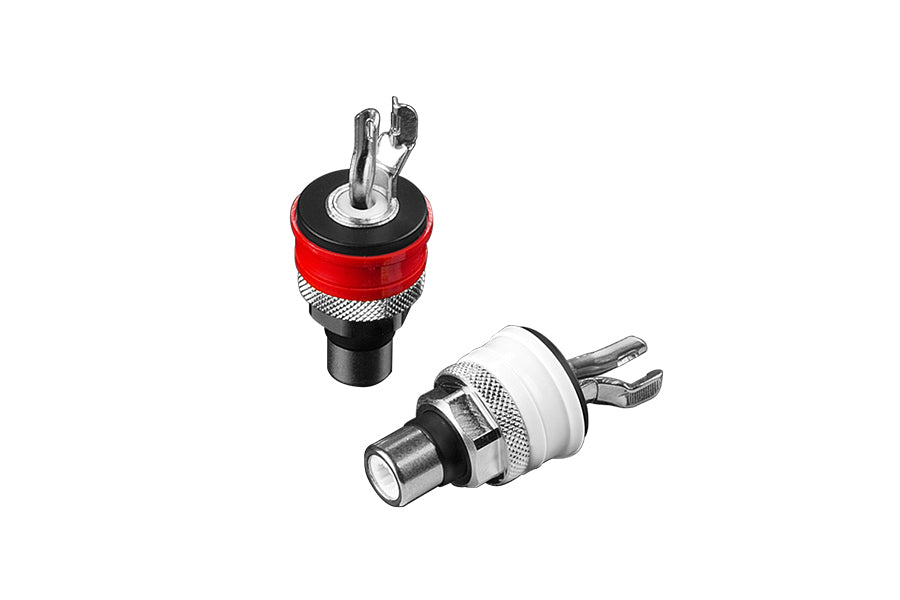

Furutech FP-901 (R) High-End RCA Sockets (Pair)
High End Performance RCA Terminal Sockets Rhodium-Plated (2 Pcs/ Set)
- Positive/Hot Center Pin: Milled from a single piece of pure copper α (Alpha) conductor with phosphor bronze locking ring
- Negative/Cold Conductor: Milled from a single piece of pure copper α (Alpha) conductor
- Non-magnetic rhodium-plated materials
- Eutectic brass housing (painted black) and 24k gold-plated nut cap
- Mounting Materials: Nylon (red or white /outer) and PETF Fluoropolymer (white/inner) insulation
- Mounting Insulation accommodates chassis panels of any thickness
- Connection Type: Soldered
- Housing—16± 0.1mm diameter X19.5mm± 0.1mm (Black)
- Mounting Insulation set— Nylon(Red, White)17.3± 0.1mm diameter X 7.3mm± 0.1mm thick
- 39.0mm± 0.1mm overall length
Specifications
Dimensions:
•Housing---16± 0.1mm diameter X19.5mm± 0.1mm (Black),
•Mounting Insulation set--- Nylon(Red, White)17.3± 0.1mm diameter X 7.3mm± 0.1mm thick,
39.0mm± 0.1mm overall length
