Furutech FS-a36 High End Performance α (Alpha) OCC Speaker Cable - Per Metre

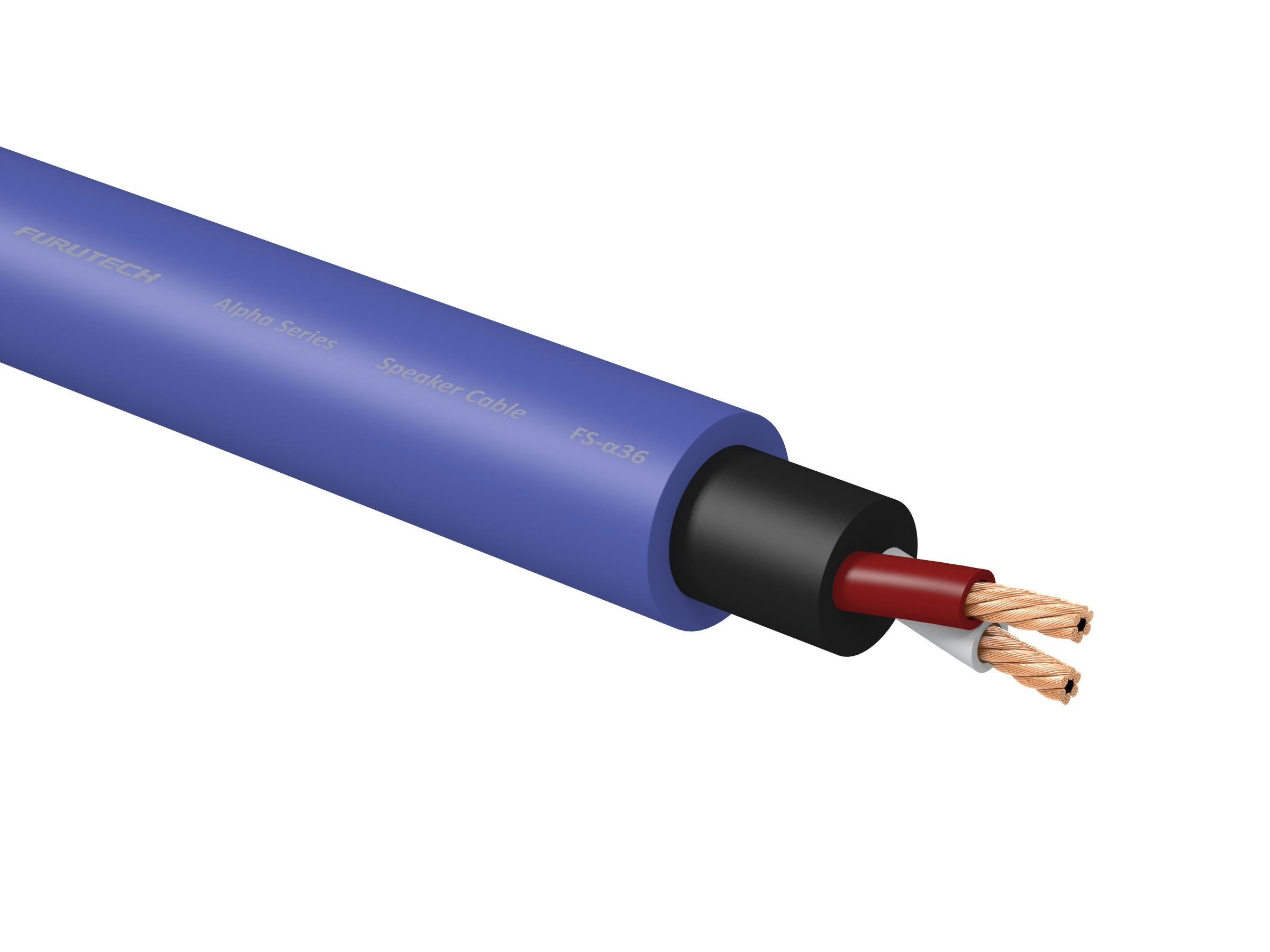

Furutech FS-a36 α (Alpha) OCC Speaker Cable

• This cable is sold per metre. Please select the required amount from the “Quantity” box.

Rating

Max. Conductor Resistance: Ω／km 5.3 (JISC3005 6 20℃)
Min. Insulation Resistance: MΩ‧km >100 (JISC3005 9.1 20℃)
CAPACITANCE: PF/M 41.7 at 1KHz
INDUCTANCE: uH/M 1.4 at 1KHz
Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)

Features

Furutech’s α (Alpha) OCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC is made with high-purity oxygen-free copper using a special casting process. Unlike regular OFC, almost all of the impurities of this high-purity OCC have been removed at the micron level through a special casting process unique to Furutech.

Specifications

Conductor Material: α(Alpha) OCC
Construction（pcs／mm): 20pcs / ψ0.18 mm X 6+ψ0.9mm Incorporating damping carbon particles in center filler core
Insulation Material: Audio grade PE (Red,White)
Nom. Thickness: 1.25mm
Diameter: 5.1mm
Twisting Method: 2 Cores Twisted Together
Inner Sheath Material: Audio grade flexible PVC (Black) Incorporating damping carbon particles
Sheath Material: Audio grade Flexible PVC (Purple Blue)
Nom. Thickness: 1.0 mm
Overall Diameter Approx.: 13.0mm
