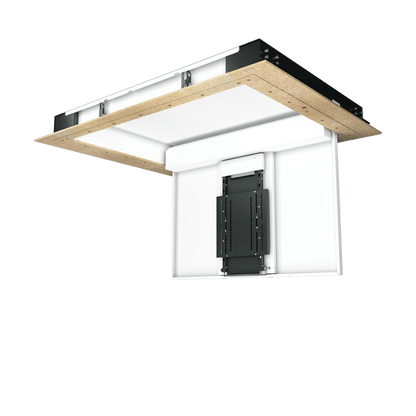

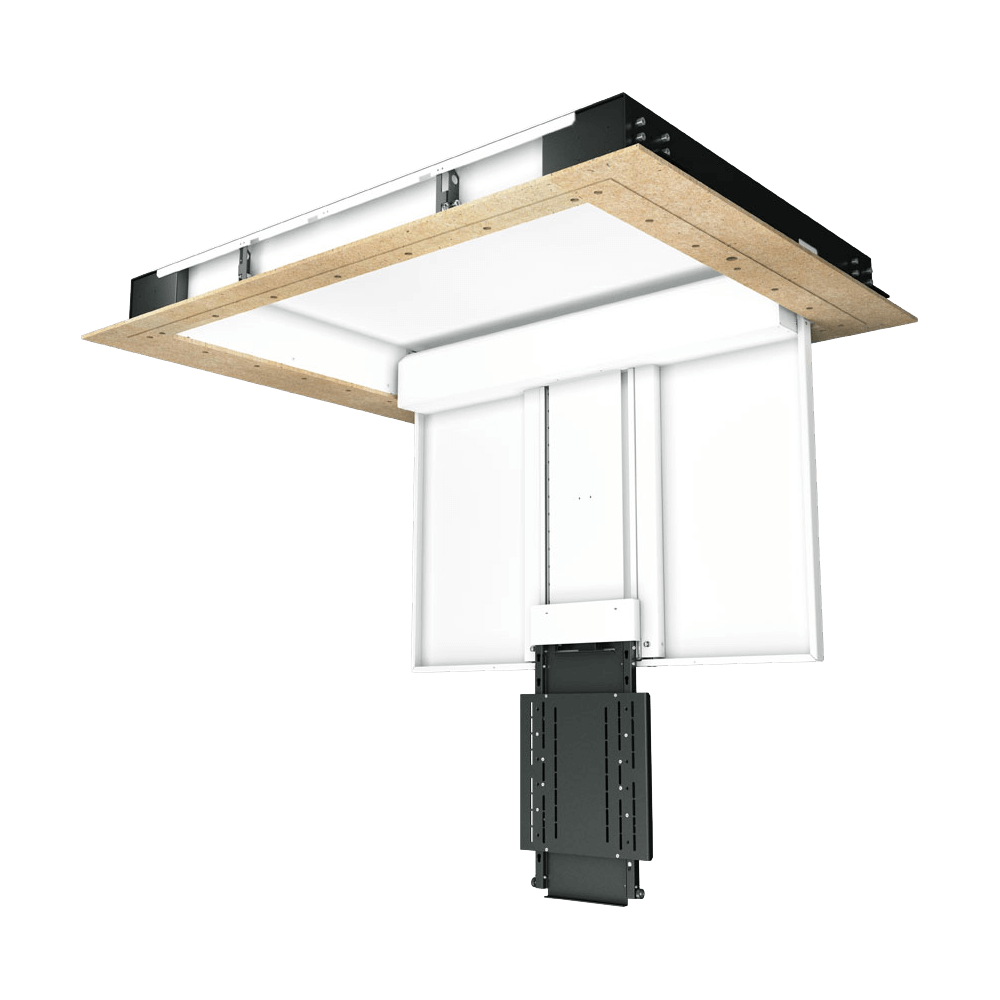

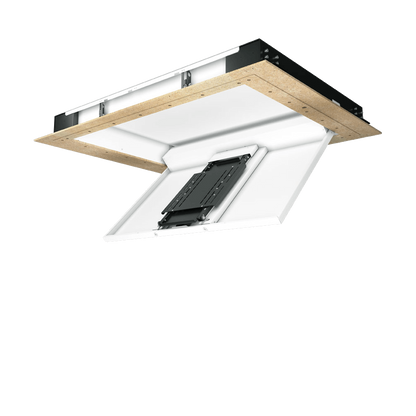

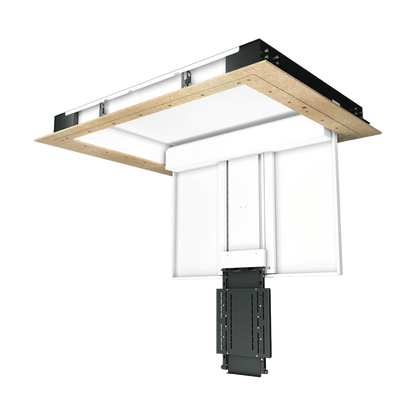

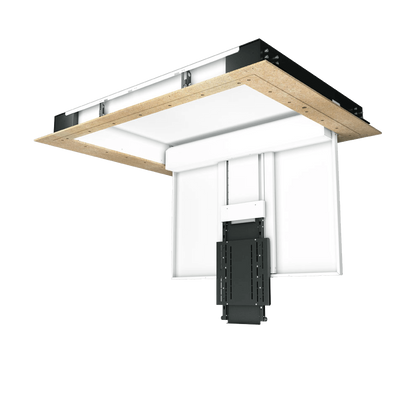

The CHR Range is our latest generation of TV Ceiling Hinge with Telescope mechanisms, suitable for hinging screens from 40” to 86” up to 90° out of a ceiling before lowering the screen between 500mm (19.6”) and 750mm (29.5”) (mechanisms size dependant). Fully concealable within the ceiling cavity thanks to its Plaster In Edge, the CHRT is delivered ready to install as one whole unit, reducing the chance of errors upon installation and streamlining the fitting procedure.
| PRODUCT | MAX SCREEN DIMENSIONS | MAX SCREEN WEIGHT |
|---|---|---|
| CHRT4 | 680 X 1130 X 100MM (26.8 X 44.5 X 3.9") | 60KG (132LBS) |
| CHRT5 | 800 X 1330 X 100MM (31.5 X 52.4 X 3.9") | 40KG (88LBS) |
| CHRT6 | 920 X 1530 X 100MM (36.2 X 60.2 X 3.9") | 90KG (198LBS) |
| CHRT7 | 1010 X 1730 X 100MM (39.8 X 68.1 X 3.9") | 65KG (143LBS) |
| CHRT8 | 1110 X 1980 X 150MM (43.7 X 78 X 5.9") | 125KG (276LBS) |
- Self adjusting limit switches in the closed position means that product set up is now even quicker and easier than ever before

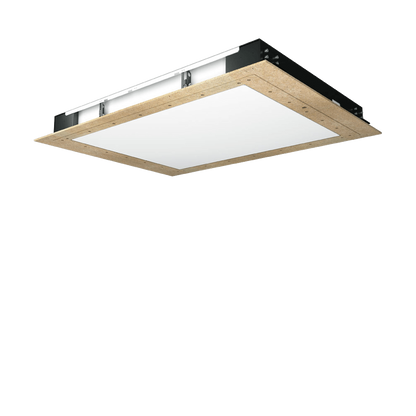

- An MDF "Plaster In Edge" allows for a neat installation into the ceiling, eliminating any visible on ceiling flange around the mechanism, with only the smallest of shadow gaps around the lid when closed
- Shipped with both mechanical and electrical recovery options, ensuring that in the event of a 3rd party control issue the system can be safely accessed.
TECHNICAL SPECIFICATION
| PRODUCT CODE | CHRT4 | CHRT5 | CHRT6 | CHRT7 | CHRT8 |
|---|---|---|---|---|---|
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR | RS232 / CONTACT CLOSURE / IR |
| FINISH (CUSTOM AVAILABLE) | WHITE PAINT - RAL9910 | WHITE PAINT - RAL9910 | WHITE PAINT - RAL9910 | WHITE PAINT - RAL9910 | WHITE PAINT - RAL9910 |
| HEIGHT WITHIN CEILING | 210MM(8.3") | 210MM(8.3") | 210MM(8.3") | 210MM(8.3") | 270MM (10.6") |
| MAX SCREEN DIMENSIONS (HXWXD) | 680 X 1130 X 100MM (26.8 X 44.5 X 3.9") | 800 X 1330 X 100MM (31.5 X 52.4 X 3.9") | 920 X 1530 X 100MM (36.2 X 60.2 X 3.9") | 1010 X 1730 X 100MM (39.8 X 68.1 X 3.9") | 1110 X 1980 X 150MM (43.7 X 78 X 5.9") |
| MAX WEIGHT CAPACITY | 60KG (132LBS) | 40KG (88LBS) | 90KG (198LBS) | 65KG (143LBS) | 125KG (276LBS) |
| MECHANISM WEIGHT (APPROX) | 120KG (265LBS) | 140KG (309LBS) | 165KG (364LBS) | 190KG (419LBS) | 250KG (551LBS) |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED | MOTORISED | MOTORISED |
| SHIPPING INFORMATION | |||||
| SHIPPING DIMENSIONS | 166 x 124 x 44cm (65.4 x 48.8 x 17.3") |
186 x136 x 44cm (73.2 x 53.5 x 17.3") |
206 x 148 x 44cm (81.1 x 58.3 x 17.3") |
226 x 160 x 44cm (89.0 x 63.0 x 17.3") |
251 x 172 x 49cm (98.8 x 67.7 x 19.3") |
| SHIPPING WEIGHT | 182kg (401lbs) | 223kg (492lbs) | 268kg (591lbs) | 321kg (708lbs) | 423kg (933lbs) |
