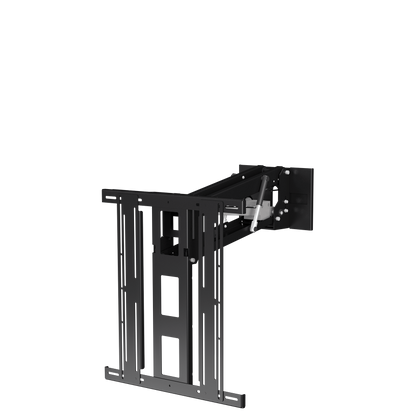

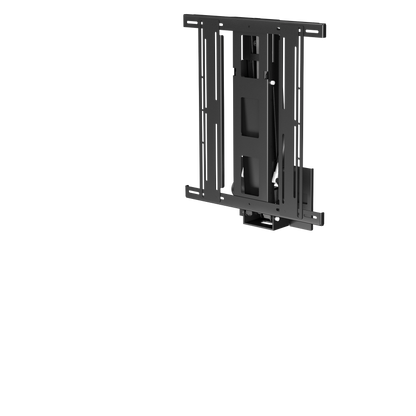

Future Automation EAD ELECTRIC ADVANCE & DROP TV WALL MOUNT
Couldn't load pickup availability
Pickup available at Pickup Only
Usually ready in 24 hoursPairs well with
The Electric Advance and Drop TV Wall Mount is a one of a kind bracket designed to move a flat screen down to a more desirable viewing height.
The down and out movement make this ideal for mounting a TV over a fireplace as the EAD moves forward to clear a mantle piece and then drops down for a more favourable viewing position. A truly unique and creative solution.
A motorised swivel version is also available - EAD-S
Unique Forward and Drop (Out and Down) Motion
Removable Magnetic Covers to Create a Neat Finish
Simple Hook-on Style Screen Mount (As found on the PS Bracket range)
Perfect For Mounting TV Above Fireplaces
A simple, single point tilt adjustment to ensure that the screen is always parallel to the wall
Full Cable Management
Smooth Quiet Motion
TECHNICAL SPECIFICATION
| PRODUCT CODE | EAD |
|---|---|
| BOLT PATTERN | (H) 500, 400, 300, 200 (W) 600, 500, 400, 300, 200 |
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DEPTH FROM WALL | 140MM (5 1/2") |
| FINISH | RAL 9005 BLACK (SATIN) - CUSTOM AVAILABLE |
| MAX DROP FROM IN POSITION | 537MM (21 1/8") |
| MAX EXTENSION FROM WALL | 550MM (21 5/8") |
| MAX WEIGHT | 60KG (132LBS) |
| MOVEMENT TYPE | MOTORISED |
| SCREEN SIZES (APPROX) | 50"-80" |
| SHIPPING INFORMATION | |
| SHIPPING DIMENSIONS | 84 x 75 x 27cm (33 x 29.5 x 10.6") |
| SHIPPING WEIGHT | 25kg (55lbs) |
