F500 BOOKSHELF SPEAKERS
The F500 series is crafted around an IsoFlare™ point source drive unit; technology which our Technical Director, Dr. Paul Mills, is renowned for. Our technical team, responsible for the audio performance and mechanical build of this type of driver, have many decades of experience between them. Combining Fyne Audio’s IsoFlare™ driver into a rigid cabinet, with a cleverly designed porting system, ensures optimal in-room performance.

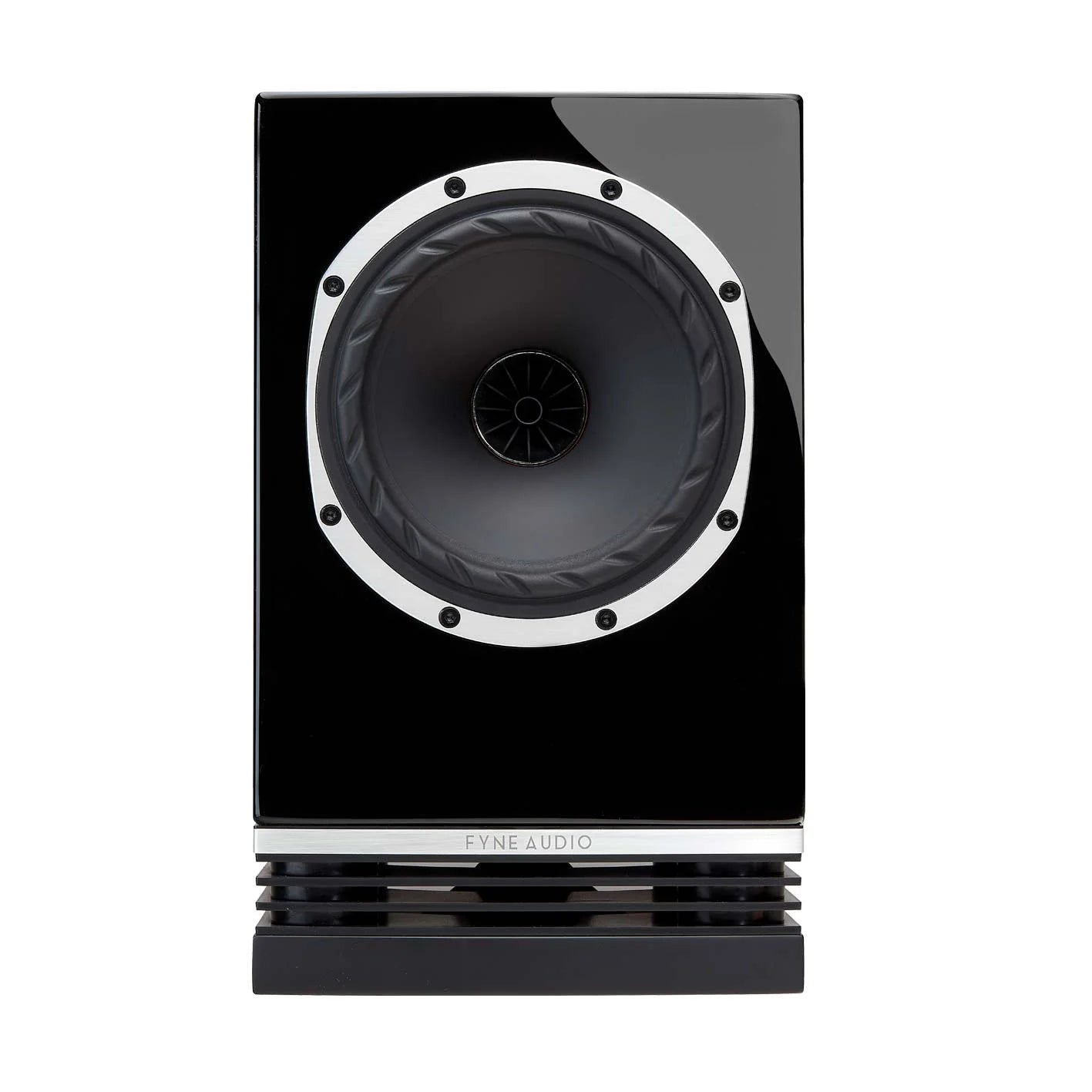

An out and out purist audiophile design, the stand-mount F500 utilises a single 150 mm (6″) IsoFlareTM point source driver in a compact, ported cabinet. Offering precise imaging and intimate detailing, the F500 is ideal for small to medium listening rooms. Incorporating a down-firing port, bass energy is evenly dissipated into the room with our BassTraxTM Tractrix diffuser system.

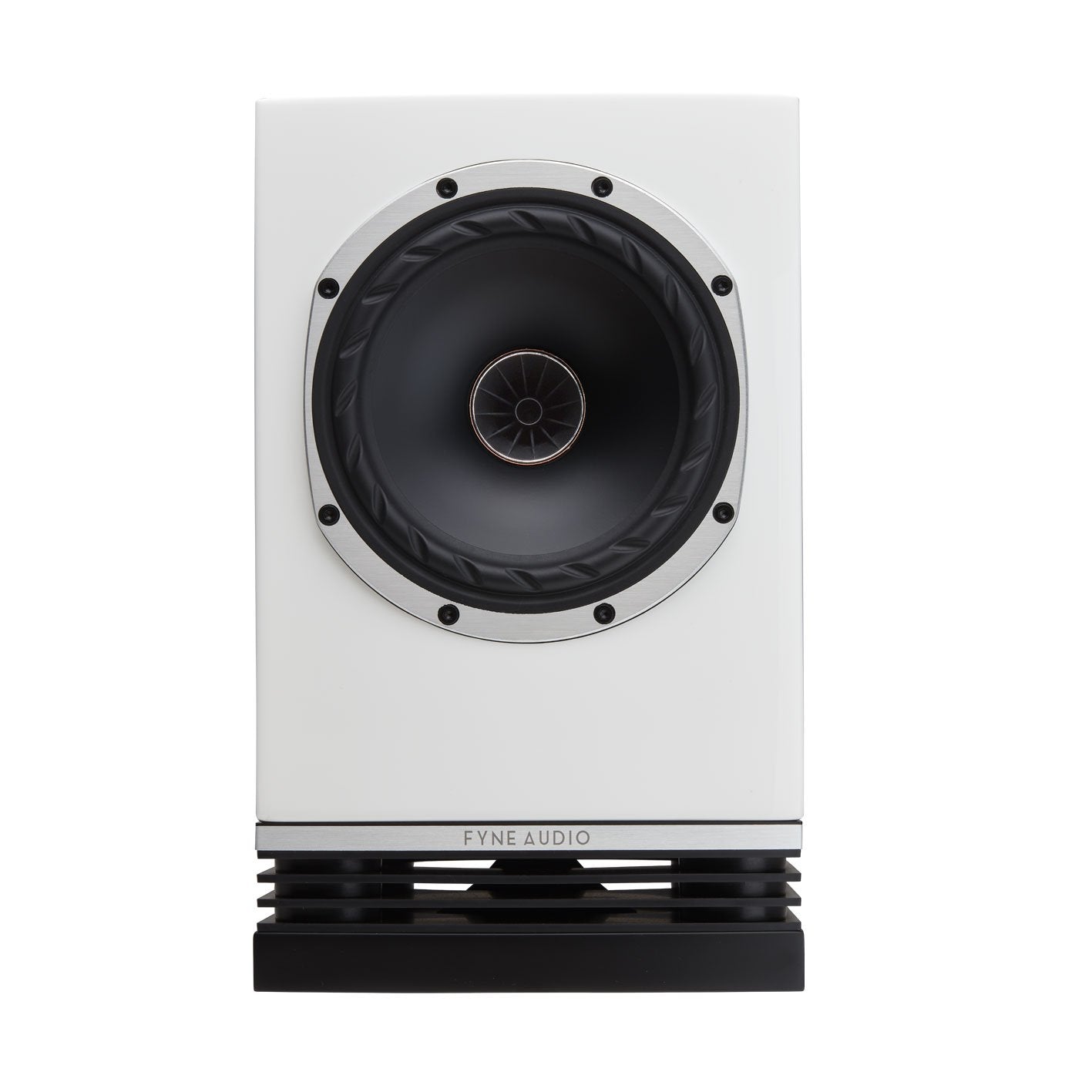

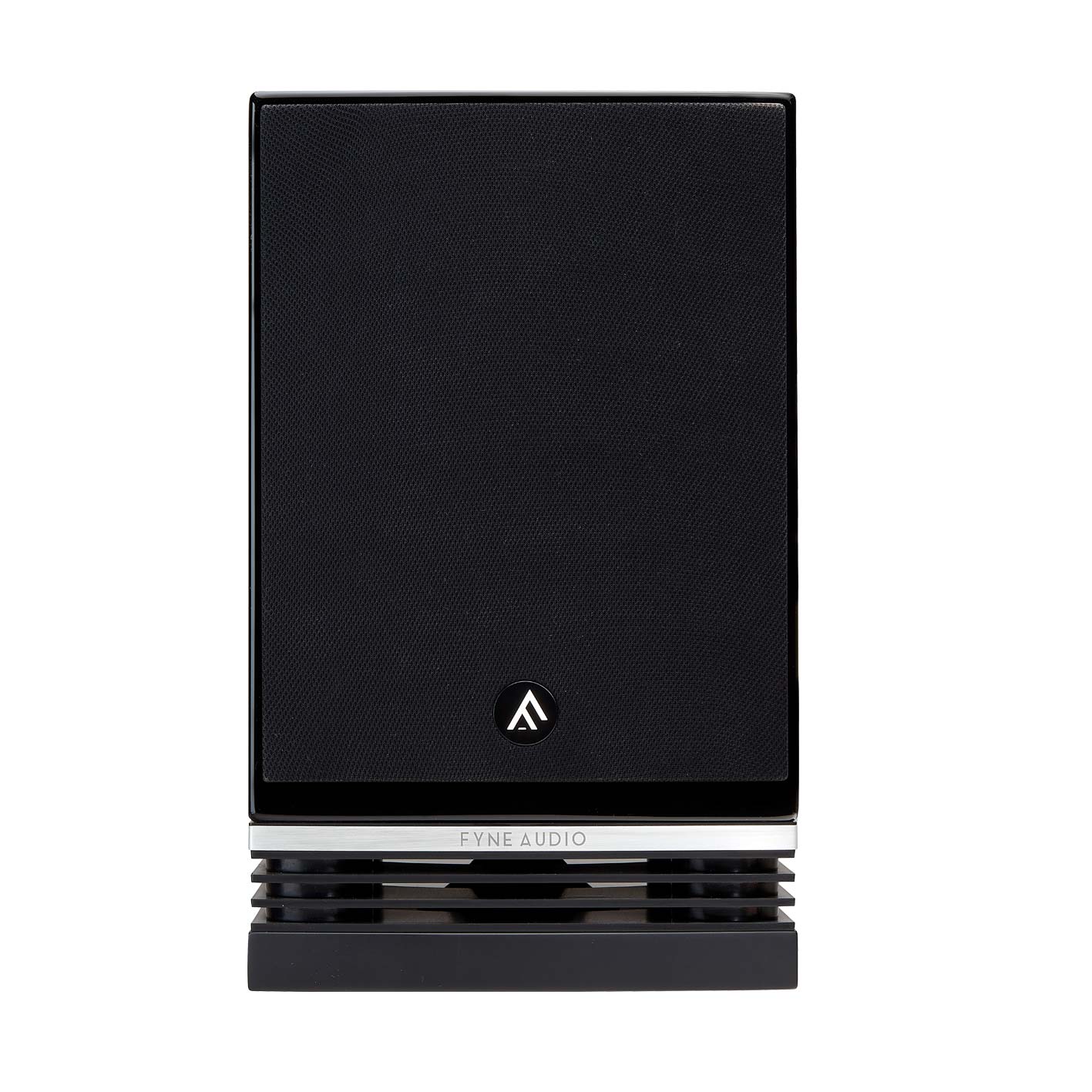

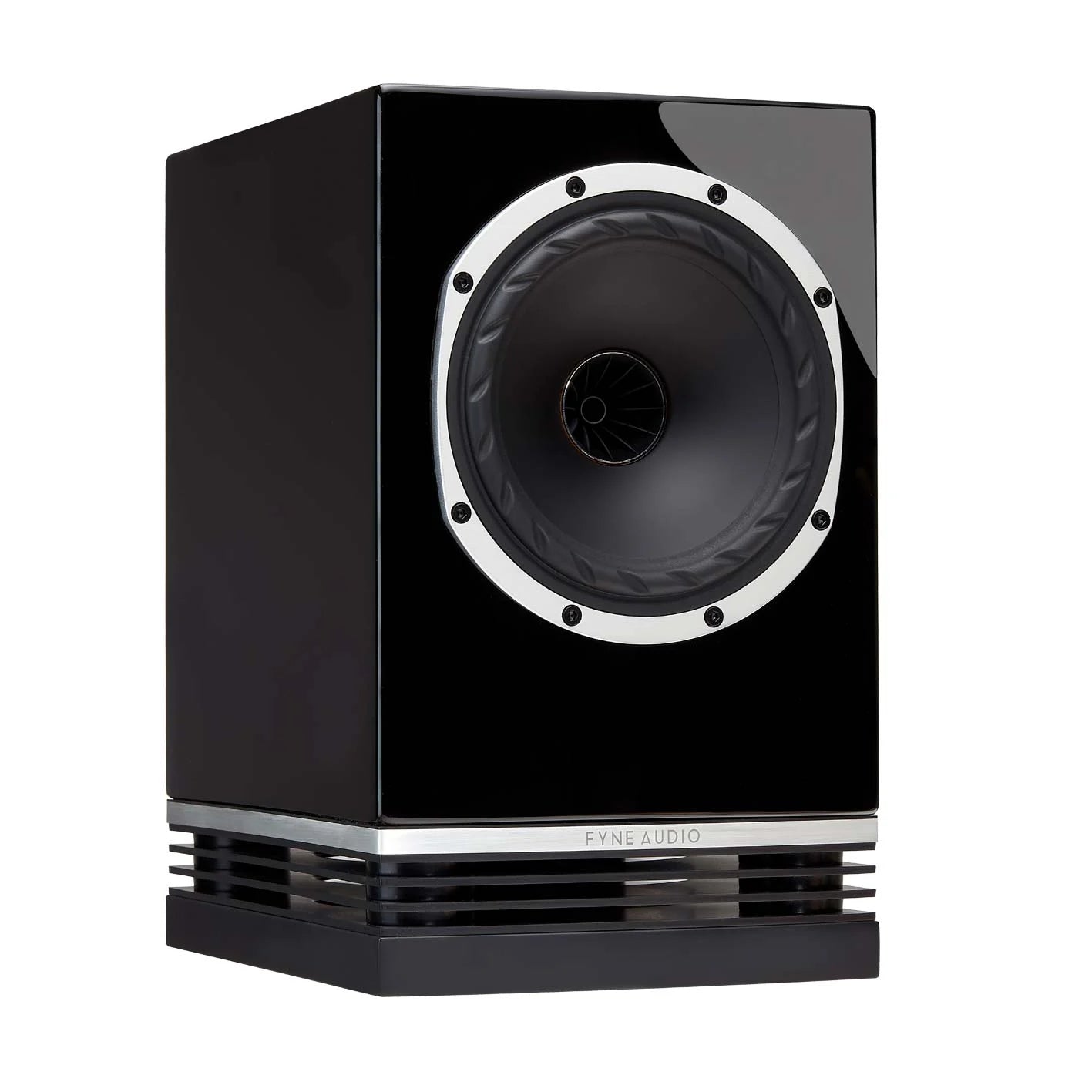

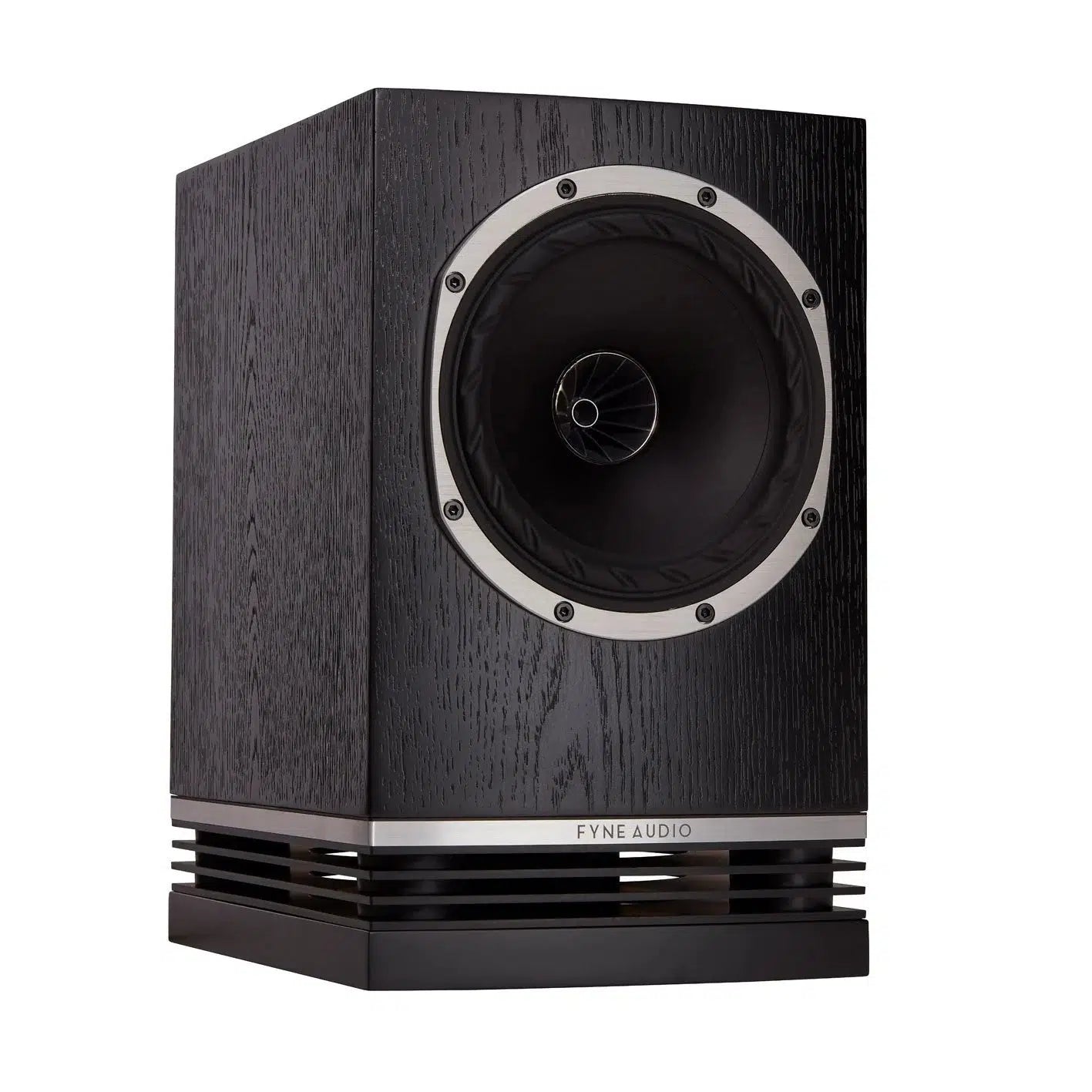

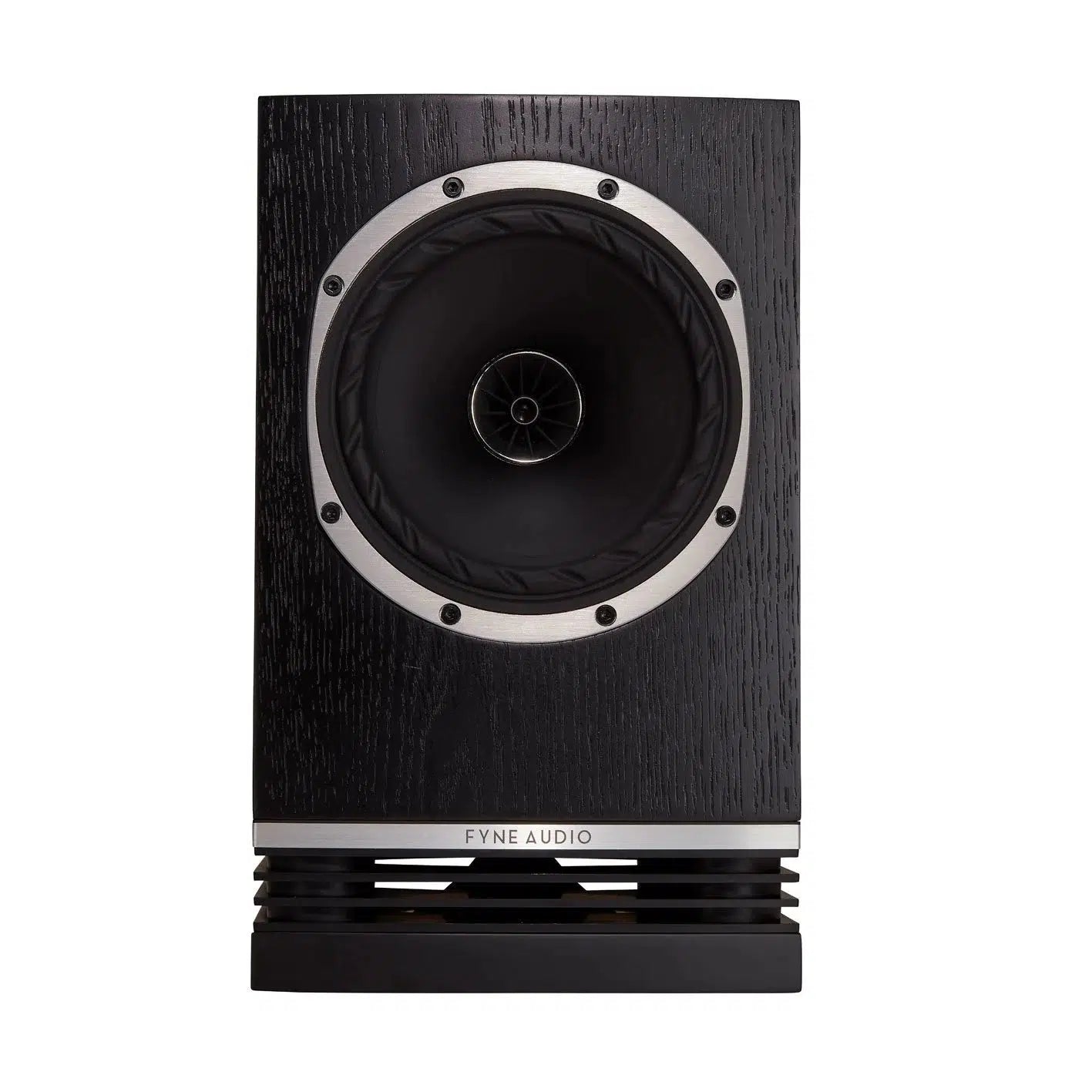

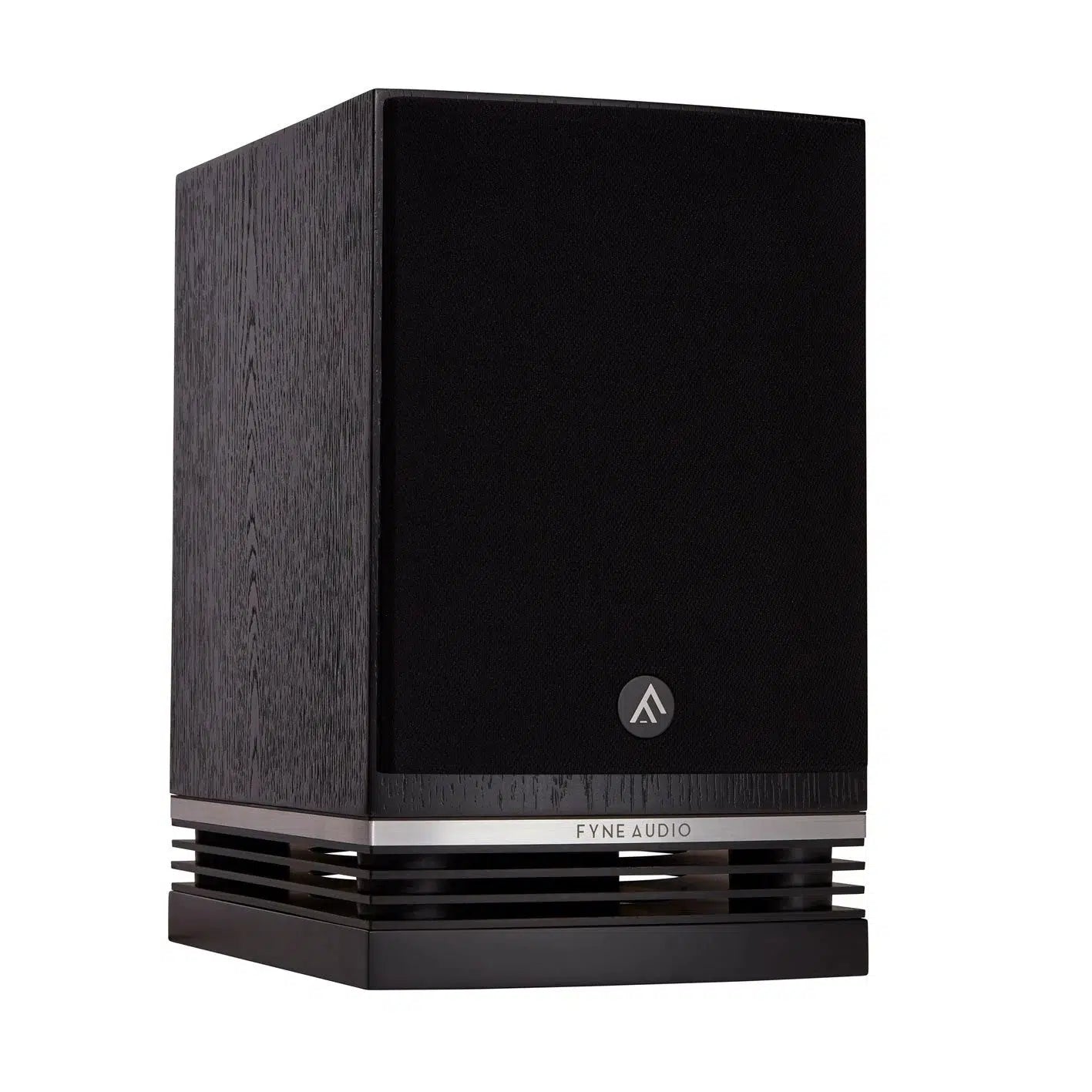

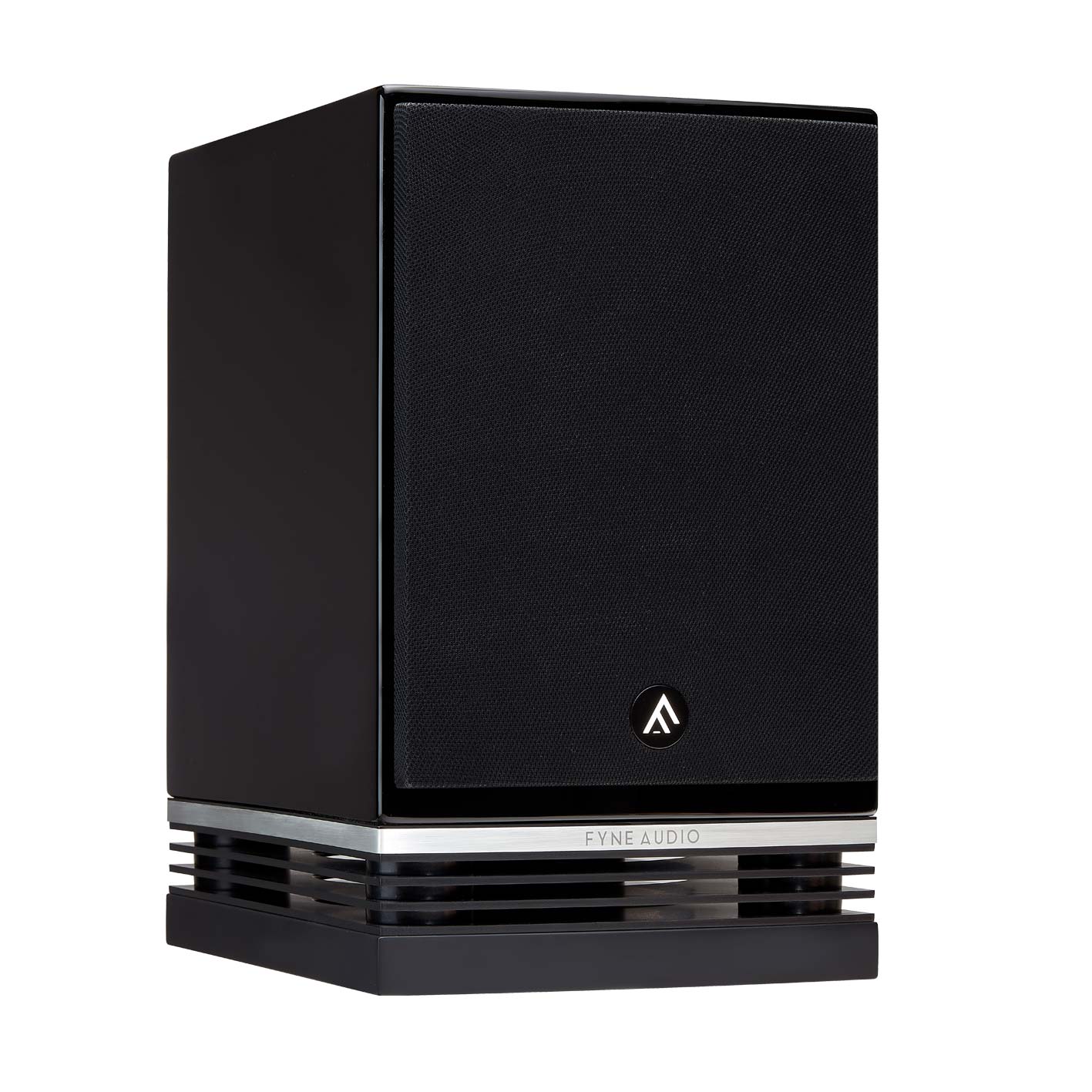

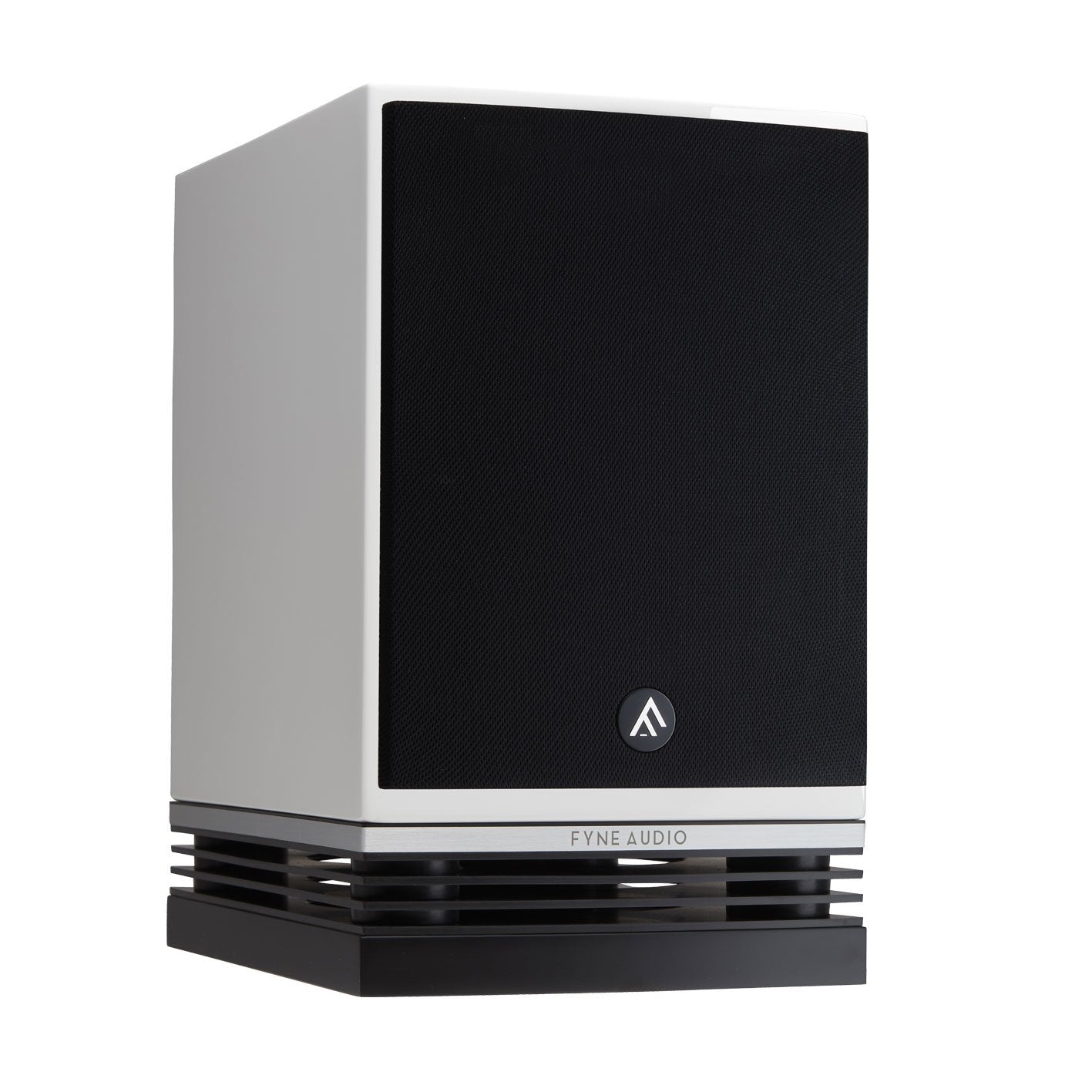

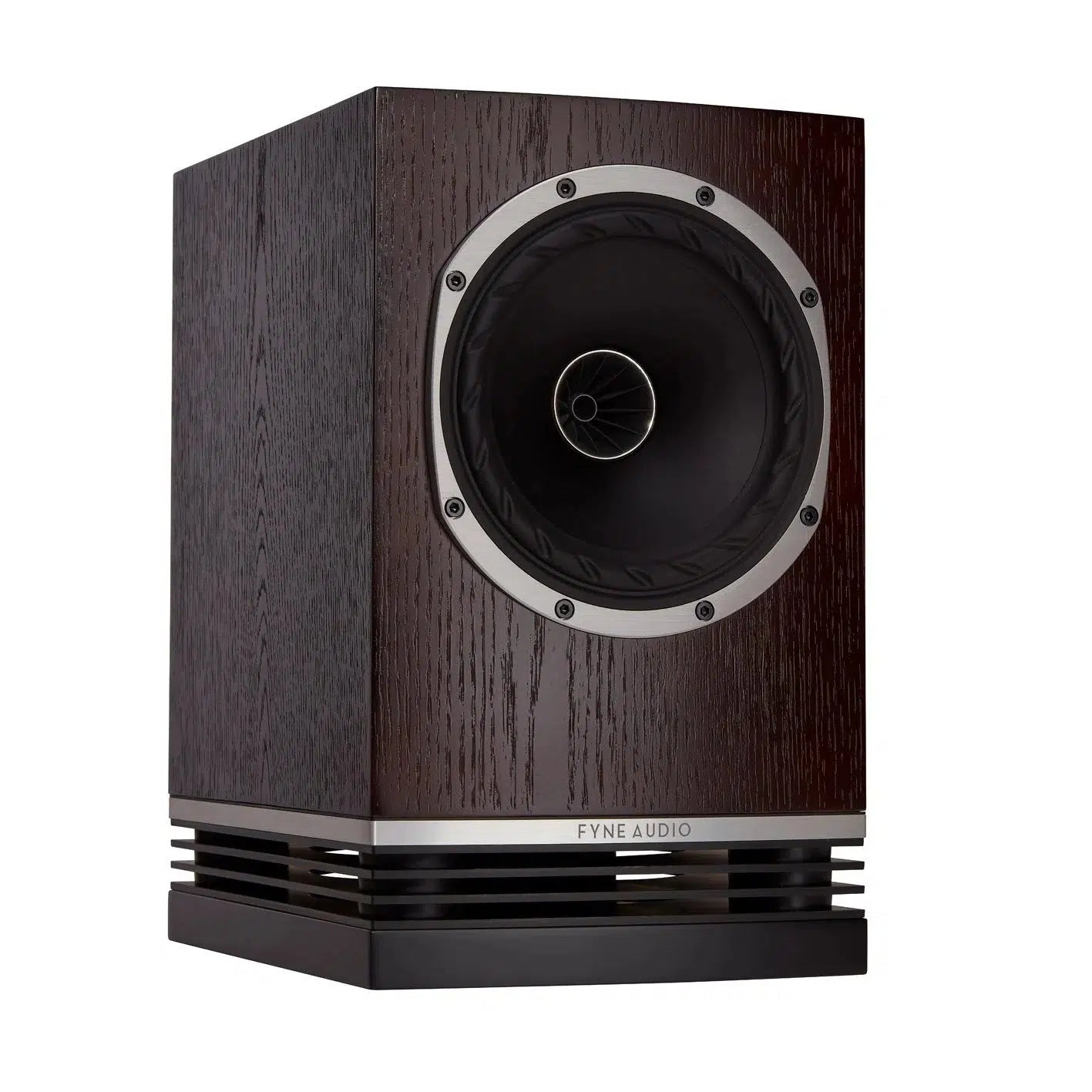

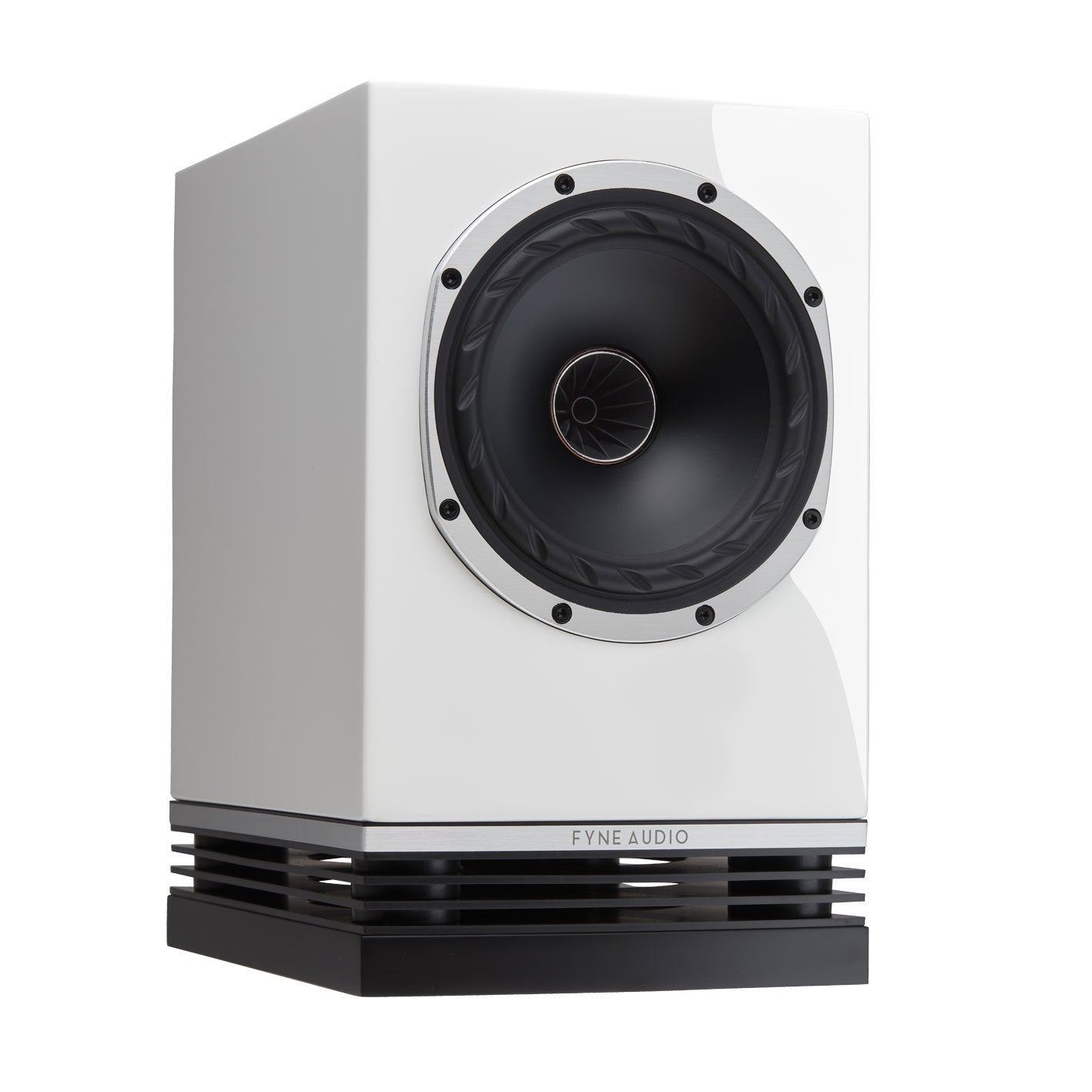

The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects.
Basstrax Port System
The bookshelf and floorstanding models employ an internal, downwards-firing port system. Below the port, a Tractrix profile diffuser (patent applied for) converts plain wave port energy to a spherical 360-degree wave front, integrating energy uniformly into the room. This clever design ensures that the loudspeaker is less critical of room positioning.
Low-loss, laminated core inductors and audiophile-grade polypropylene capacitors are used exclusively throughout the F500 series crossovers. The result is an exceptionally clean signal path and very low crossover losses, ensuring the very best in detail resolution and musical communication.
Home Theatre & Music
The F500 range is as impressive with movies as it is with music. FYNE AUDIO’s point source driver technology is ideal for articulating the finest of movie detail with pin-point accuracy. High efficiency and high-power handling means the F500 series delivers an incredibly dynamic and lifelike performance whether you are listening to DTS Master Audio or Dolby True HD.
|System Type||2 way, downwards firing port, with BassTraxTM Tractrix diffuser|
|Recommended amplifier power (Watt RMS)||30- 120|
|Continuous power handling (Watt RMS)||60|
|Sensitivity (2.83 Volt @ 1m)||89dB|
|Nominal impedance||8 Ohm|
|Frequency response (-6dB typical in room)||45Hz- 34kHz|
|Drive unit complement||1 x 150mm IsoFlareTM, multi-fibre bass/ mid with 25mm titanium dome compression tweeter|
|Crossover type||2nd order low pass, 1st order high pass|
|Dimensions - HxWxD||325 x 200 x 320mm (12.8 x 7.8 x 12.6”)|
|Weight - Each||7.3kg (16.1lb)|
|Finishes||Dark Oak / Black Oak / Piano Gloss Black / Piano Gloss White|
