Compact and perfectly formed in the UK, the F500SP is the smallest loudspeaker in the UK built Special Production series. Heralding from the award-winning F500, the SP version adds a unique Special Production IsoFlare driver, tuned crossover and premium BassTrax port system, all derived from the prestigious F700 series. This stand-mount loudspeaker’s 6” (150mm) SP IsoFlare driver delivers full-range, point source reproduction across the entire audio spectrum for outstanding detail and class-leading imaging. The multi-fibre cone has exceptional bass reproduction thanks to its innovative twin-magnet motor system and Fyne Flute roll surround that reduces cone resonances at the driver termination. The LF output is channelled through a downfiring port onto Fyne’s premium BassTrax Tractrix diffuser system, giving a smooth bass response and easy room integration. The bi-wire connection panel features a fifth terminal to ground the driver chassis and eliminate amp or cable born RF interference. With enhanced details including anodised aluminium plinth, diamond-cut aluminium driver trim and a deep gloss walnut veneer finish option, the F500SP is Fyne Audio’s most affordable premium UK-made loudspeaker.
SPECIFICATIONS
| System Type | 2 way, downwards firing port, with BassTraxTM Tractrix diffuser* |
| Recommended amplifier power (Watt RMS) | 30 - 120 |
| Continuous power handling (Watt RMS) | 60 |
| Sensitivity (2.83 Volt @ 1m) | 90dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 42Hz - 34kHz |
| Drive unit complement | 1 x 150mm IsoFlare™ point source driver Multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system |
| Crossover frequency | 1.7kHz |
| Crossover type | Bi-wired passive low loss, 2nd order low pass, 1st order high pass. |
| Dimensions - HxWxD | 323 x 200 x 320mm (12.7 x 7.9 x 12.6”) |

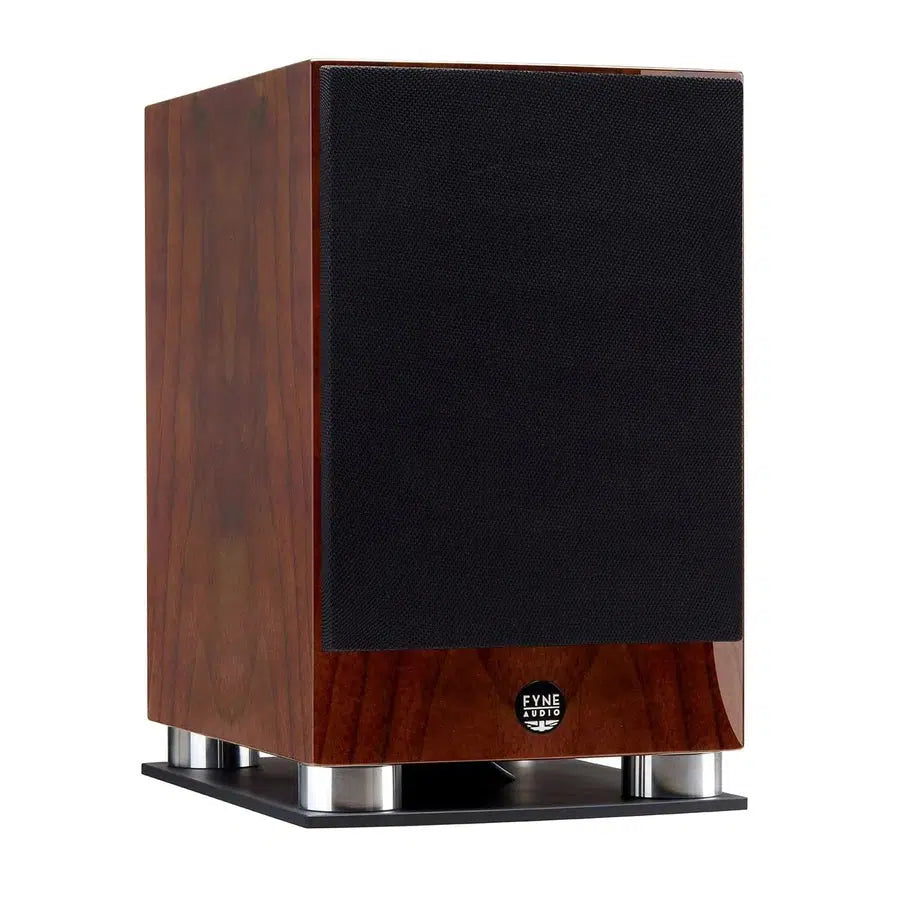

| Finishes | Piano Gloss Walnut (Premium)/ Piano Gloss Black / Piano Gloss White |
